917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Ignition/Electrical Parts Diagram

Yard Tractor

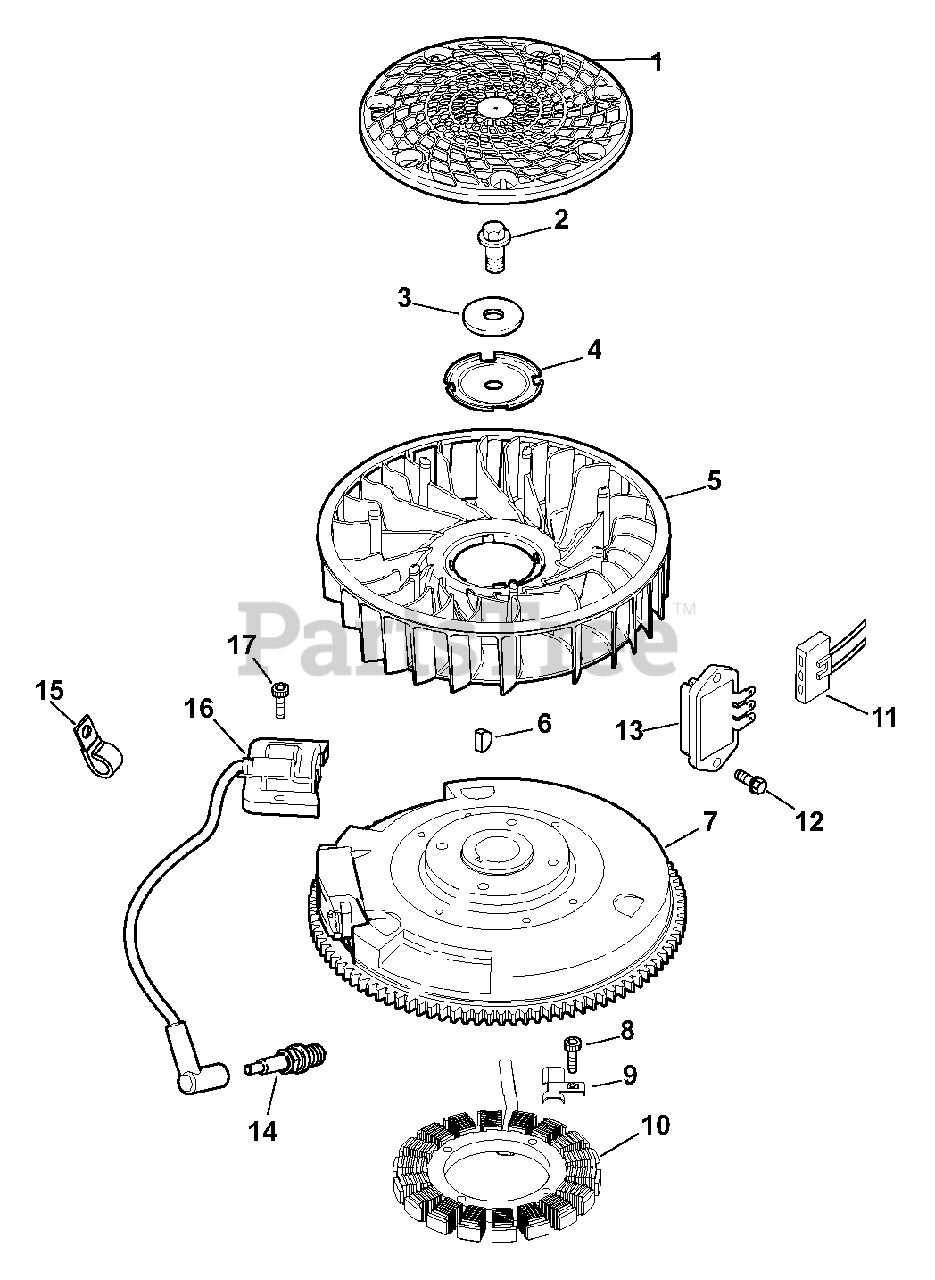

Ignition/Electrical Parts Diagram

  • Title

1

2016202s

Screen, Grass

$

$

Not available

2

1208614s

Screw, Flg M1.0x1.5x45

$

$

Not available

3

1246803s

Washer, Flat 13/32"

$

$

Not available

4

2014604s

Plate, Fan Mounting

$

$

Not available

5

2015701s

Fan

$

$

Not available

6

X4215s

Key, 3/16" X 5/8"

$

$

Not available

7

2002505s

Flywheel

$

$

Not available

8

2008617s

Screw, Skt Thd Frm M5x0.8x25

$

$

Not available

9

2015403s

Clip, Stator Wire

$

$

Not available

10

237878s

Kit, 15 Amp Stator

$

$

Not available

11

236602s

Connector (3 Contact)

$

$

Not available

12

M545020s

Screw, Flg Thd Frm M5xo.8x20

$

$

Not available

13

4140309s

Rectifier-regulator

$

$

Not available

14

1213202s

Plug, Spark

$

$

Not available

15

231285s

Clip, Cable

$

$

Not available

16

2058401s

Module, Ignition

$

$

Not available

17

M561025s

Screw, Skt Thd Frm M5x0.8x25

$

$

Not available

2017601s

Harness, Wiring - Six Pin

Note: NOT ILLUSTRATED

$

$

Not available
