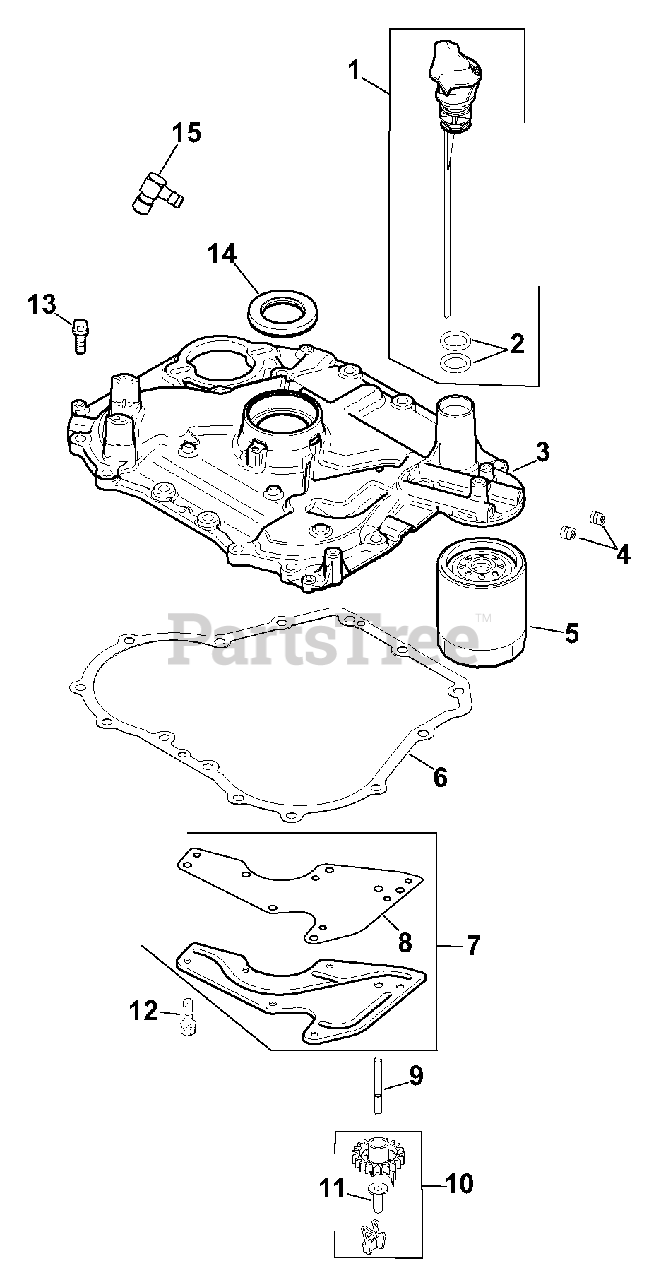

917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Oil Pan/Lubrication Parts Diagram

Yard Tractor

Oil Pan/Lubrication Parts Diagram

  • Title

1

2004002s

Kit, Dipstick Blade

Note: (Includes 2)

$

$

Not available

2

2015301s

O-ring

$

$

Not available

3

2000903s

Kit,plate, Closure Bearing

Note: (Includes 4,10,11)

$

$

Not available

4

2513960s

Plug, CTSK Pipe 1/8"

$

$

Not available

5

5205002s

Filter, Oil

$

$

Not available

6

2004101s

Gasket, Closure Plate

$

$

Not available

7

2009602s

Kit, Oil Passage Cover

Note: (Includes 8)

$

$

Not available

8

2004102s

Gasket, Oil Passage

$

$

Not available

9

2014403s

Shaft, Governor Cross

$

$

Not available

10

2031003s

Kit, Governor Gear Assy

Note: (Includes 11)

$

$

Not available

11

1238001s

Pin, Governor Regulating

$

$

Not available

12

M545013s

Screw, Flg Thd Frm M5x0.8x13

$

$

Not available

13

M851030s

Screw, Flg M8x1.25x30

$

$

Not available

14

2003201s

Seal, Oil

$

$

Not available

15

2515502s

Connector, 90° Hose

$

$

Not available
