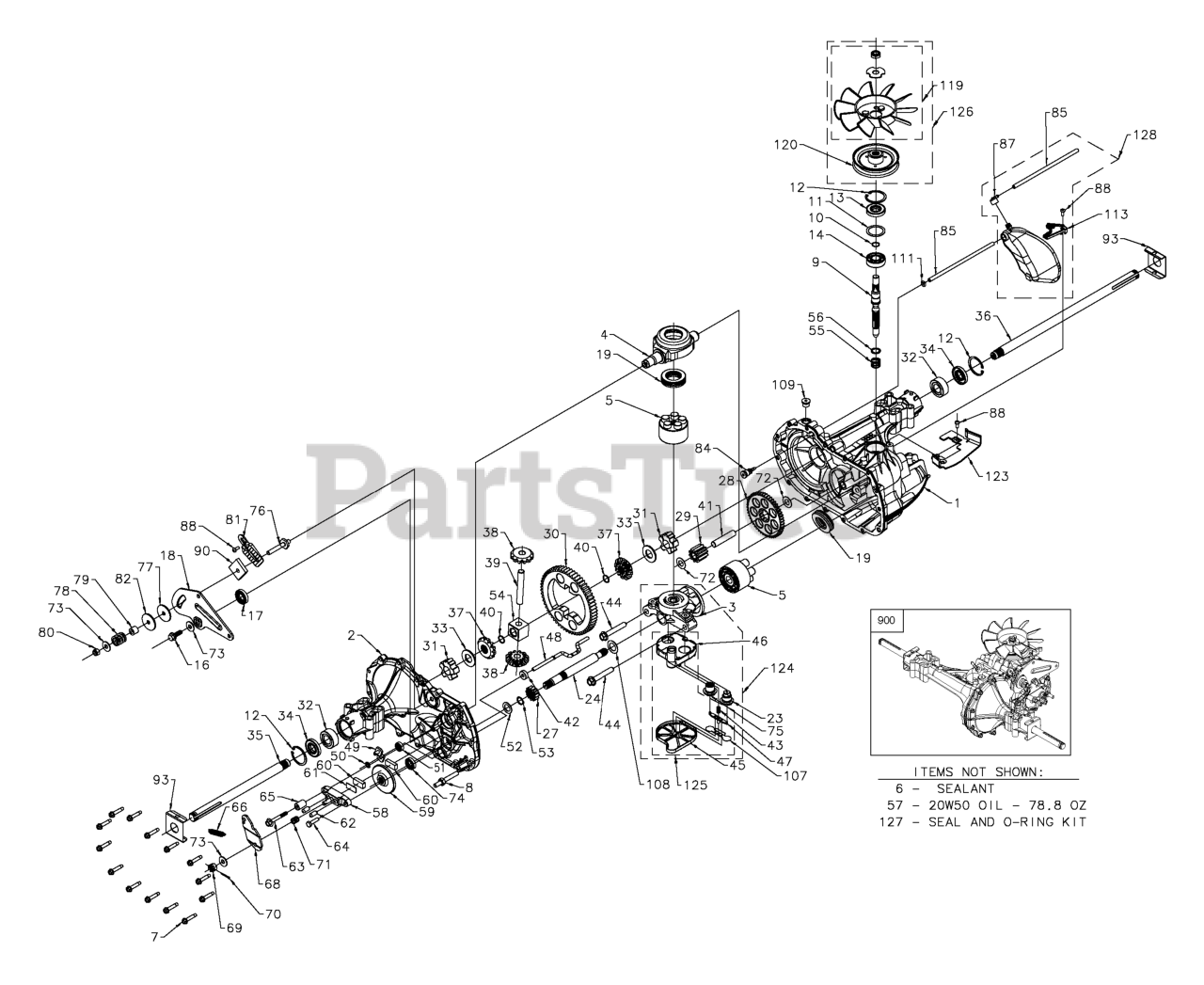

917.279260 (960430009) - Craftsman Yard Tractor (2006-06) (Sears) Hydro Transaxle Parts Diagram

Yard Tractor

Hydro Transaxle Parts Diagram

  • Title

1

Husqvarna 170351

Kit, Main Housing
(Superseded to 583038301)

$

$

Not available

1

Main Housing, Machined

$

$

Not available

1

Bushing.865 X.985 X.790

$

$

Not available

2

Husqvarna 170352

Kit, Side Housing
(Superseded to 583038401)

$538.99

$

Usually ships in 3-10 days

0

2

Side Housing, Machined

$

$

Not available

2

Bushing.865 X.985 X.790

$

$

Not available

2

Bushing.624 X.719 X.562

$

$

Not available

3

Husqvarna 170353

Kit, Center Section Center Section, Machined
(Superseded to 583038501)

$

$

Not available

3

Bushing.707 X.788 X.591

$

$

Not available

4

Husqvarna 170354

Swashplate, Trunnion Machined
(Superseded to 583038601)

$

$

Not available

5

Husqvarna 169898

Kit, Cylinder Block
(Superseded to 532169898)

$

$

Not available

5

(1000) Block - Cylinder

$

$

Not available

5

Piston

$

$

Not available

5

Spring, Compression Washer Thrust

$

$

Not available

6

Husqvarna 178322

Sealant Tube
(Superseded to 583087501)

$148.99

$

Usually ships in 3-10 days

0

7

Husqvarna 170356

Hex flange Screw 1/4-20 X 1.25
(Superseded to 583038801)

$

$

Not available

8

Husqvarna 170357

Stud, 5/16-24 Hex Double End
(Superseded to 583038901)

$

$

Not available

9

Husqvarna 170358

Shaft, Input
(Superseded to 583039001)

$

$

Not available

10

Husqvarna 170359

Retaining Ring
(Superseded to 583039101)

$

$

Not available

11

Husqvarna 170360

Spacer
(Superseded to 583039201)

$

$

Not available

12

Husqvarna 169870

Retaining Ring
(Superseded to 583034101)

$65.99

$

Usually ships in 3-10 days

0

13

Husqvarna 170361

Seal, Lip.67 X 1.58 X.276
(Superseded to 583039301)

$65.99

$

Usually ships in 3-10 days

0

14

Husqvarna 173158

Bearing, Ball 6203 (BDR)
(Superseded to 583057201)

$

$

Not available

16

Husqvarna 170362

Hex Flange Head Screw 1/4-20 X 1.25
(Superseded to 583039401)

$

$

Not available

17

Husqvarna 170363

Seal, Lip 18 X 32 X 7
(Superseded to 583039501)

$

$

Not available

18

Husqvarna 170364

Arm, Control
(Superseded to 583039601)

$

$

Not available

19

Husqvarna 173159

Bearing, Thrust (10cc)

$

$

Not available

23

Husqvarna 404023

Shock Valve Assembly 270 Bar

$

$

Currently unavailable

24

Husqvarna 170366

Shaft Motor
(Superseded to 583039801)

$478.99

$

Usually ships in 3-10 days

0

27

Husqvarna 404024

Gear, Pinion, 12T

$

$

Currently unavailable

28

Husqvarna 404025

Gear 1 OT / 49T

$

$

Currently unavailable

29

Husqvarna 170369

Gear, 1 OT Jackshaft
(Superseded to 583040101)

$

$

Not available

30

Husqvarna 406920

60t Bullgear

$

$

Currently unavailable

31

Husqvarna 170371

Sleeve Bearing .75 X 1.75 X.625
(Superseded to 583040301)

$

$

Not available

32

Husqvarna 170389

Sleeve Bearing (Outboard) .75 X 1.575 X.625
(Superseded to 583040501)

$21.99

$

Usually ships in 3-10 days

0

33

Husqvarna 142991

Washer
(Superseded to 532142991)

$

$

Not available

34

Husqvarna 170390

Lip Seal, Axle Shaft
(Superseded to 583040601)

$

$

Not available

35

Husqvarna 406921

Shaft, Axle (Keyed, R.h.)

$

$

Currently unavailable

36

Husqvarna 406922

Shaft, Axle (Keyed, L.h.)

$

$

Currently unavailable

37

Husqvarna 406923

Gear, Steel Miter 12T (Splined)

$

$

Currently unavailable

38

Husqvarna 406924

Gear, Steel Miter 12T

$

$

Currently unavailable

39

Husqvarna 150809

Differential Shaft (310-0750)

$

$

Currently unavailable

40

Husqvarna 170393

Retaining Ring
(Superseded to 583040901)

$

$

Not available

41

Husqvarna 170394

Pin, Jackshaft
(Superseded to 583041001)

$

$

Not available

42

Husqvarna 170395

Magnet, Ring

$

$

Not available

43

Husqvarna 170396

Spring, Bypass
(Superseded to 583041101)

$9.99

$

Usually ships in 3-10 days

0

44

Husqvarna 150797

Bolt 3/8-24 X 2-1/2
(Superseded to 582976101)

$

$

Not available

45

Husqvarna 170397

Filter

$

$

Not available

46

Husqvarna 170398

Base, Filter

$

$

Not available

47

Husqvarna 170399

Actuator, Bypass

$

$

Not available

48

Husqvarna 170400

Rod, Bypass Actuator
(Superseded to 583041201)

$

$

Not available

49

Husqvarna 196599

Arm, Bypass
(Superseded to 583234201)

$20.99

$

Usually ships in 3-10 days

0

50

Husqvarna 170402

Retaining Ring.25 External
(Superseded to 583041401)

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 170403

Seal, Lip .741 X.25 X.25
(Superseded to 583041501)

$

$

Not available

52

Husqvarna 170404

Washer, Flat 0.050" (210-1000)
(Superseded to 532170404)

$

$

Not available

53

Husqvarna 170405

Retaining Ring
(Superseded to 583041601)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 170406

Bearing, Center Block

$

$

Not available

55

Husqvarna 142977

Spring, Helical Compression
(Superseded to 532142977)

$9.99

$

Usually ships in 3-10 days

0

56

Husqvarna 142978

Washer, Block Thrust
(Superseded to 532142978)

$13.99

$

Usually ships in 3-10 days

0

57

Husqvarna 20W50

Oil

$

$

Currently unavailable

58

Husqvarna 142929

Kit, Brake Yoke
(Superseded to 584289701)

$

$

Not available

59

Husqvarna 170408

Rotor, Brake
(Superseded to 583041801)

$

$

Not available

60

Husqvarna 142883

Brake Puck
(Superseded to 532142883)

$5.99

$

In Stock, only 2 left!

0

61

Husqvarna 142882

Brake Puck Plate
(Superseded to 584289601)

$

$

Not available

62

Husqvarna 170409

Pin, Brake Actuating

$

$

Currently unavailable

63

Husqvarna 170410

Hfhcs 1/4-20 X 2 W/patch, Special Flange
(Superseded to 584281401)

$

$

Not available

64

Husqvarna 142892

Bolt, Nylok
(Superseded to 584281501)

$

$

Not available

65

Husqvarna 170411

Spacer, Brake Torsion Spring

$

$

Currently unavailable

66

Husqvarna 401262

Spring, Brake Arm Bias
(Superseded to 583269301)

$27.99

$

Usually ships in 3-10 days

0

68

Husqvarna 401263

Arm-brake, RH
(Superseded to 583269401)

$

$

Not available

69

Husqvarna 170415

Nut, Castle 5/16-24

$

$

Not available

70

Husqvarna 170416

Pin, Cotter 3/32x3/4

$

$

Currently unavailable

71

Husqvarna 170417

Brake Spring

$

$

Currently unavailable

72

Husqvarna 170418

Washer (310-0750)

$

$

Currently unavailable

73

Husqvarna 142884

Washer, Flat
(Superseded to 532142884)

$

$

Not available

74

Husqvarna 170419

Seal, Oil

$

$

Not available

75

Husqvarna 170420

Ass'y Check Plug
(Superseded to 583042201)

$96.99

$

Usually ships in 3-10 days

0

76

Husqvarna 170421

Bolt, Stud 5/16-24

$

$

Currently unavailable

77

Husqvarna 170422

Puck, Friction
(Superseded to 583042301)

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 142969

Spring
(Superseded to 532142969)

$

$

Not available

79

Husqvarna 142980

Spacer
(Superseded to 532142980)

$

$

Not available

80

Husqvarna 150778

Nut, Nylon Insert Hex Lock 5/16-24
(Superseded to 532150778)

$

$

Not available

81

Husqvarna 170423

Wedge, Friction
(Superseded to 583042401)

$47.99

$

Usually ships in 3-10 days

0

82

Husqvarna 170424

Clip, Washer
(Superseded to 583042501)

$

$

Not available

84

Husqvarna 170425

Fitting, 5/16 X Sae 5/32 Tube
(Superseded to 583042601)

$

$

Not available

85

Husqvarna 170426

Hose, Expansion Tank
(Superseded to 583042701)

$

$

Not available

87

Husqvarna 401264

Cap, Barbed Vent
(Superseded to 583269501)

$65.99

$

Usually ships in 3-10 days

0

88

Husqvarna 178334

Bolt, Self Tapping (BDR)

$

$

Not available

90

Husqvarna 170430

Puck, Inner Wedge
(Superseded to 583042801)

$

$

Not available

93

Husqvarna 170431

Spring Clip, Housing
(Superseded to 583042901)

$

$

Not available

107

Husqvarna 170432

Deflector
(Superseded to 583043001)

$11.99

$

Usually ships in 3-10 days

0

108

Husqvarna 170433

Washer, Motor Shaft.71 ID X 1.150D X.03 Thick
(Superseded to 583043101)

$

$

Not available

109

Husqvarna 170434

Plug, Straight Thread 9/16-18

$

$

Currently unavailable

111

Husqvarna 170435

O-ring .7 X.301 ID
(Superseded to 583043201)

$9.49

$

Usually ships in 3-10 days

0

113

Husqvarna 170437

Bracket, Support Expansion Tank
(Superseded to 583043301)

$17.99

$

Usually ships in 3-10 days

0

119

Husqvarna 191031

Kit, Fan - Washer - Nut
(Superseded to 583197801)

$

$

Not available

119

Fan, 7 In

$

$

Not available

119

Hex Lock Nut 1/2-20 (Nylon Insert) Washer

$

$

Not available

119

Or Slotted, .53 X 1.63 X.06

$

$

Not available

120

Husqvarna 170440

Pulley
(Superseded to 583043501)

$

$

Not available

123

Husqvarna 401265

Belt Keeper
(Superseded to 583269601)

$170.99

$

Usually ships in 3-10 days

0

124

Husqvarna 404029

Center Section Filter Bypass Assembly

$

$

Currently unavailable

124

Center Section Base Filter W/ Poppet

$

$

Not available

124

Shock Valve Assembly

$

$

Not available

124

270 bar Check Plug Assembly, .027 Washer

$

$

Not available

124

Spring,

$

$

Not available

124

Bypass Actuator,

$

$

Not available

124

Bypass Deflector Bottom, Filter

$

$

Not available

124

Bushing, .707 X.788 X.591

$

$

Not available

125

Husqvarna 170445

Kit, Filter

$

$

Not available

125

Bottom, Filter Spring,

$

$

Not available

125

Bypass Actuator,

$

$

Not available

125

Bypass Deflector

$

$

Not available

125

Base, Filter W/ Poppet

$

$

Not available

126

Husqvarna 170446

Kit, Fan/pulley
(Superseded to 583044001)

$

$

Not available

126

Hex Jam 1/20-20 (Nylon Inser) Washer,

$

$

Not available

126

OD Slotted, .53 X 1.63 X.06

$

$

Not available

126

Fan, 7 In

$

$

Not available

126

Pulley

$

$

Not available

127

Husqvarna 170447

Kit, Seal
(Superseded to 583044101)

$

$

Not available

127

Lip Seal.67 X 1.58 X.276

$

$

Not available

127

Lip Seal 18 X 32 X 7

$

$

Not available

127

Lip Seal .706 X 1.584 X.25

$

$

Not available

127

Lip Seal.741 X.250 X.250

$

$

Not available

127

TC Oil Seal.625 X1.0x.25

$

$

Not available

127

O-ring.07 X .301 ID

$

$

Not available

128

Husqvarna 401266

Kit, Expansion Tank
(Superseded to 583269701)

$

$

Not available

128

Tank,

$

$

Not available

128

Expansion Assembly Cap,

$

$

Not available

128

Barbed Vent Bolt,

$

$

Not available

128

Self Tapping 10-32 X 1/2 Bracket,

$

$

Not available

128

Support Expansion Tank Hose,

$

$

Not available

128

Expansion Tank

$

$

Not available

900

Husqvarna 192587

Transaxle
(Superseded to 583203901)

$1436.99

$

Usually ships in 3-10 days

0
