917.289630 (YTH 22 V 46) - Craftsman Yard Tractor (2010-05) (Sears) Tufftorq Transaxle Parts Diagram

Yard Tractor

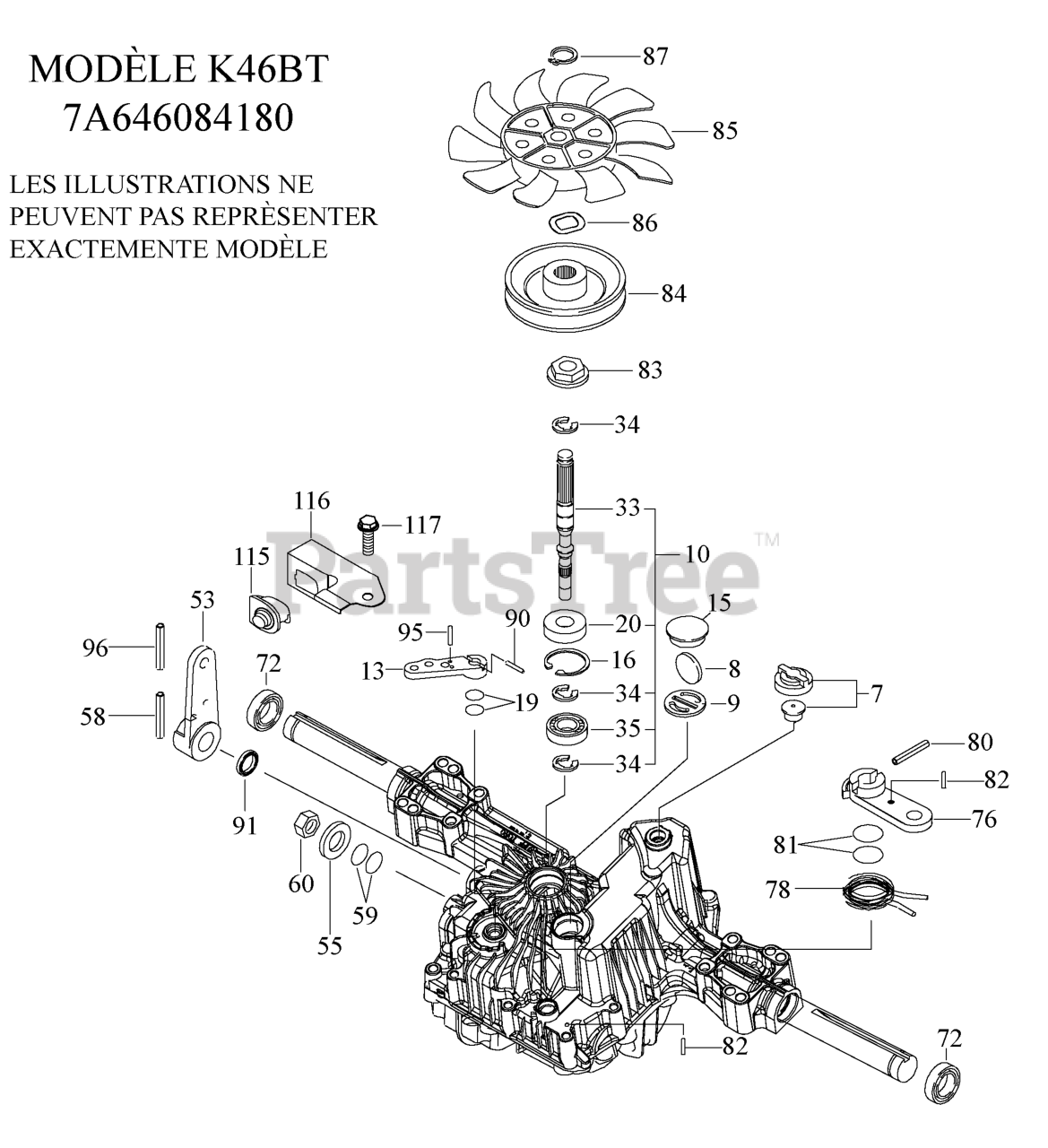

Tufftorq Transaxle Parts Diagram

  • Title

7

Husqvarna 414395

VENT VALVE 15
(Superseded to 583348201)

$21.99

$

In Stock, only 1 left!

0

8

Husqvarna 414396

MAGNET
(Superseded to 583348301)

$23.99

$

Usually ships in 3-10 days

0

9

Husqvarna 414397

MAGNET HOLDER
(Superseded to 583348401)

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 415923

PUMP SHAFT/BEARING KIT
(Superseded to 584336401)

$89.99

$

Usually ships in 3-10 days

0

13

Husqvarna 414398

BYPASS LEVER
(Superseded to 583348501)

$

$

Not available

15

Husqvarna 414399

SEALING CAP 30
(Superseded to 583348601)

$

$

Not available

16

Husqvarna 414400

SNAP RING C 35
(Superseded to 583348701)

$

$

Not available

19

Husqvarna 414401

O-RING 1A P10A
(Superseded to 583348801)

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 414402

SEAL TC 153507
(Superseded to 583345001)

$

$

Not available

33

Husqvarna 414403

PUMP SHAFT (STANDARD)
(Superseded to 583349001)

$

$

Not available

34

Husqvarna 414404

E-RING 15
(Superseded to 583349101)

$

$

Not available

35

Husqvarna 414405

BEARING 6202C3
(Superseded to 583349201)

$

$

Not available

53

Husqvarna 414431

CONTROL LEVER F
(Superseded to 583350901)

$15.99

$

Usually ships in 3-10 days

0

55

Husqvarna 415924

WASHER 12

$

$

Currently unavailable

58

Husqvarna 415925

ROLL PIN 6 x 40

$

$

Currently unavailable

59

Husqvarna 415926

O-RING 1A P14

$

$

Currently unavailable

60

Husqvarna 415927

NUT 12

$

$

Currently unavailable

72

Husqvarna 414407

SEAL 19 x 32 x 8
(Superseded to 583349301)

$21.99

$

In Stock, Qty 10

0

76

Husqvarna 414408

BRAKE LEVER
(Superseded to 583349401)

$

$

Not available

78

Husqvarna 414409

BRAKE RETURN SPRING
(Superseded to 583349501)

$26.99

$

Usually ships in 3-10 days

0

80

Husqvarna 414410

SPRING PIN 5 x 32
(Superseded to 583349601)

$

$

Not available

81

Husqvarna 414411

0-RING 1A P12
(Superseded to 583349701)

$

$

Not available

82

Husqvarna 414412

SPRING PIN 4 x 16
(Superseded to 583349801)

$9.99

$

Usually ships in 3-10 days

0

83

Husqvarna 414413

SPINE COLLAR
(Superseded to 583349901)

$20.99

$

In Stock, only 2 left!

0

84

Husqvarna 414414

PULLEY L
(Superseded to 583350001)

$

$

Not available

85

Husqvarna 414415

FAN, BLACK
(Superseded to 583350101)

$31.99

$

In Stock, only 3 left!

0

86

Husqvarna 414416

WAVE WASHER
(Superseded to 583350201)

$

$

Not available

87

Husqvarna 414417

SNAP RING
(Superseded to 583350301)

$

$

Not available

90

Husqvarna 414418

SPRING PIN 3.0A x 20
(Superseded to 583350401)

$

$

Not available

91

Husqvarna 414419

OIL SEAL 16 x 22 x.03

$

$

Not available

95

Husqvarna 414850

SPRING PIN 3.0Ax16
(Superseded to 583352701)

$

$

Not available

96

Husqvarna 414420

ROLL PIN 3.5 x 40
(Superseded to 583350601)

$9.49

$

Usually ships in 3-10 days

0

115

Husqvarna 415928

SWITCH 6440-11 DELTA

$

$

Currently unavailable

116

Husqvarna 415929

SWITCH BRACKET

$

$

Currently unavailable

117

Husqvarna 415930

TAPPING SCREW 8 x 20

$

$

Currently unavailable
