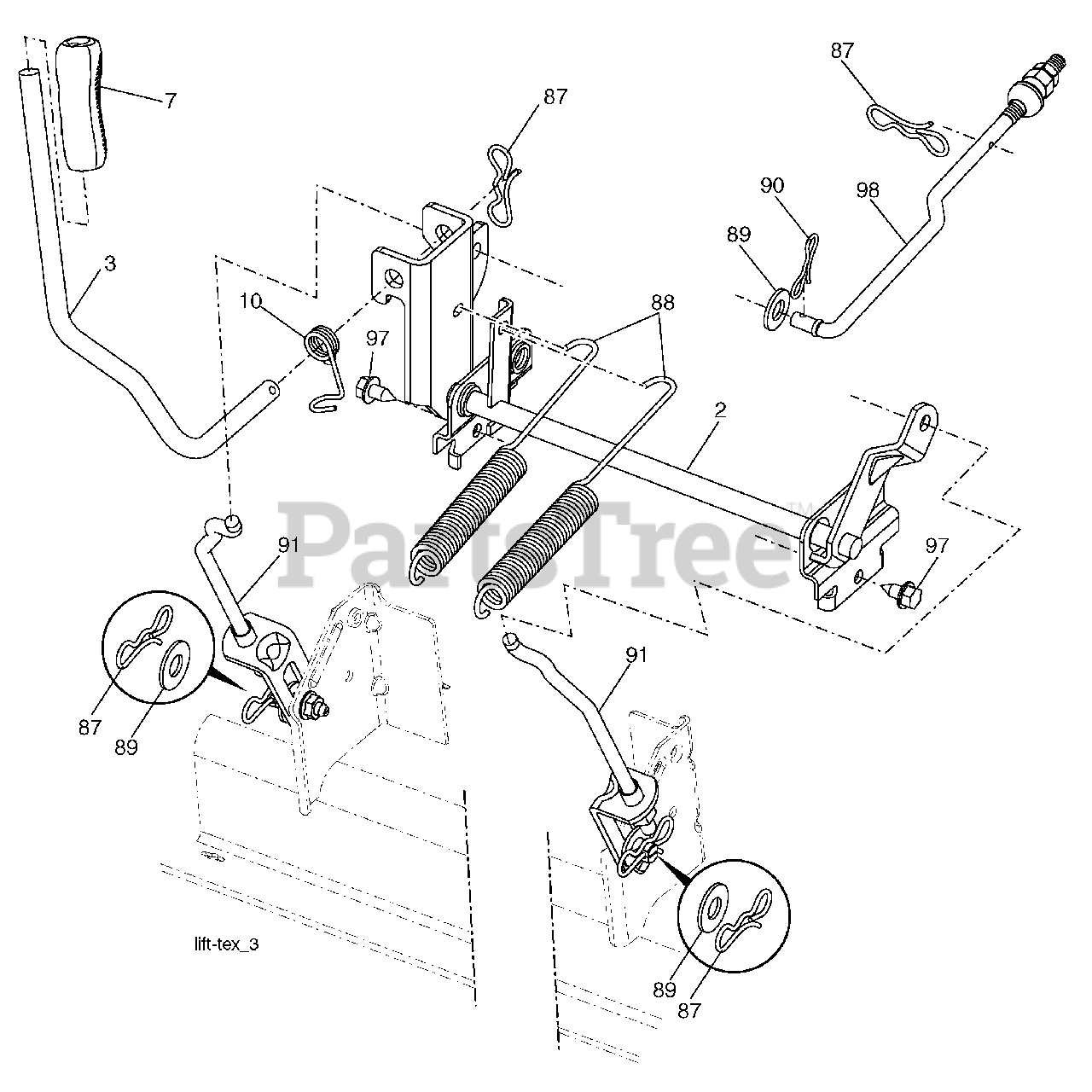

917.289640 (YTH 24 V 54) - Craftsman Yard Tractor (2010-04) (Sears) Mower Lift Parts Diagram
Yard Tractor
Mower Lift Parts Diagram
Husqvarna 532422027
Shaft Asm., Lift
$80.99
$
Usually ships in 3-10 days
Husqvarna 532195231
Lever Asm., Lift RH
$
$
Not available
Husqvarna 532411555
Grip, Lever
$6.49
$
In Stock, Qty 6
Husqvarna 532196314
Spring Torsion
$6.49
$
In Stock, Qty 5
Husqvarna 532194209
Pin Cotter 7/16 Bow Tie Lock
$3.99
$
In Stock, Qty 20+
Husqvarna 532410710
Spring Lift Assist
$8.99
$
In Stock, Qty 18
Husqvarna 819191912
Washer Clear Zinc
$6.49
$
In Stock, Qty 20+
Husqvarna 532194208
Pin Cotter 5/16 Bow Tie Lock
$3.99
$
In Stock, Qty 20+
Husqvarna 532403407
Link Lift Susp Mower Rear
$
$
Not available
Husqvarna 817000612
Screw 3/8-16 x 3/4
$4.99
$
In Stock, Qty 20+
$9.99
$
In Stock, Qty 20+
