917.374456 - Craftsman Walk-Behind Mower (2008-02) (Sears) Briggs & Stratton 4-Cycle Engine Parts Diagram

Walk-Behind Mower

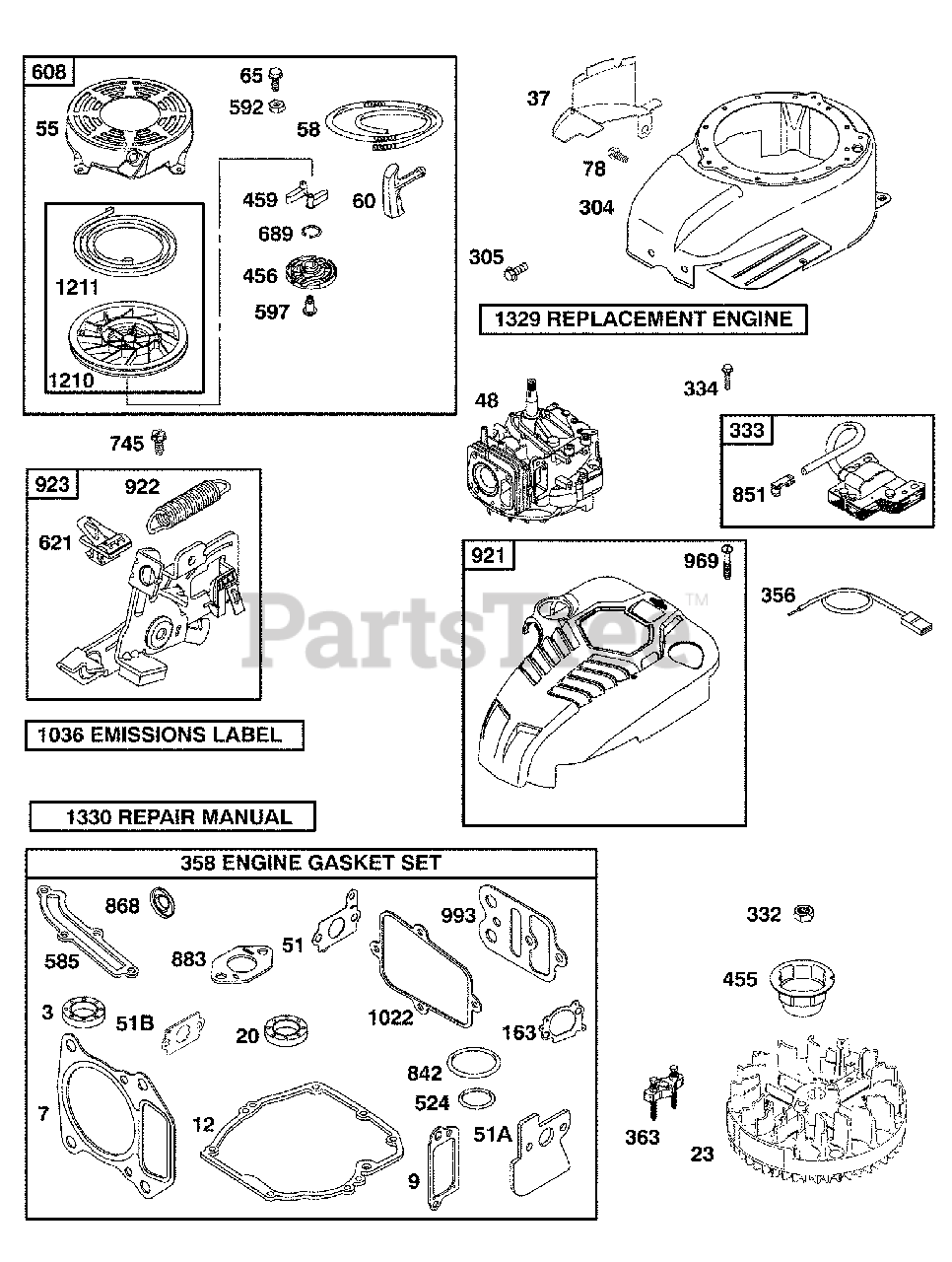

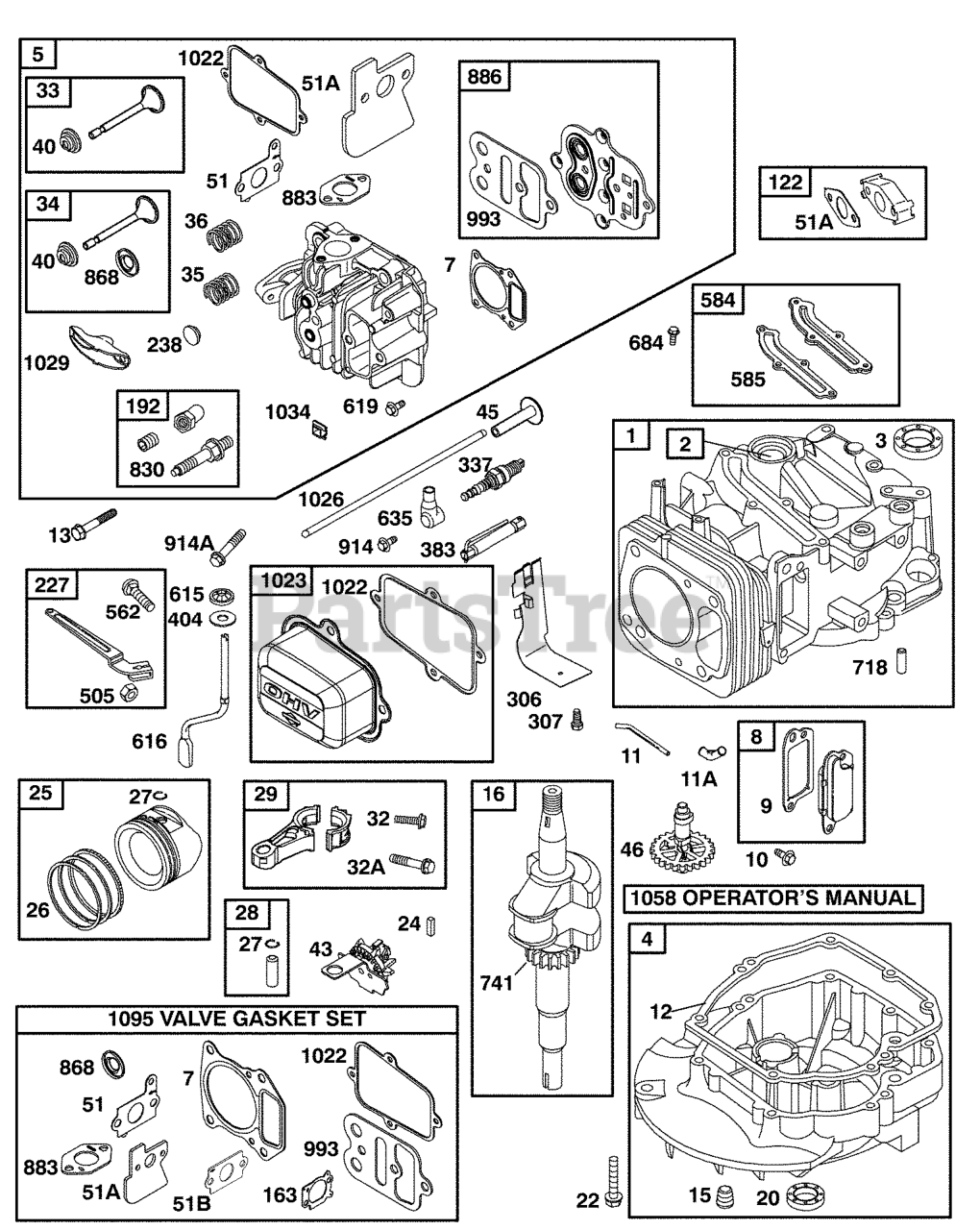

Briggs & Stratton 4-Cycle Engine Parts Diagram

  • Title

1

Husqvarna 692670

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 399269

Kit-Bushing/Seal

$

$

Not available

3

Husqvarna 299819S

Seal-Oil

Note: (Magneto Side) Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

4

Husqvarna 493279

Sump-Engine

$

$

Not available

5

Husqvarna 792381

Head-Cylinder

$

$

Currently unavailable

7

Husqvarna 697230

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

8

Husqvarna 495786

Breather Assembly

$

$

Not available

9

Husqvarna 699833

Gasket-Breather

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

10

Husqvarna 691125

Screw

Note: (Breather Assembly)

$

$

Currently unavailable

11

Husqvarna 691781

Tube-Breather

$

$

Currently unavailable

11A

Husqvarna 692937

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

13

Husqvarna 691137

Screw

Note: (Cylinder Head)

$

$

Currently unavailable

15

Husqvarna 691680

Plug-Oil Drain

$

$

Currently unavailable

16

Husqvarna 691456

Crankshaft

$

$

Currently unavailable

20

Husqvarna 399781S

Seal-Oil

Note: (PTO Side) Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

22

Husqvarna 691092

Screw

Note: (Engine Sump)

$

$

Currently unavailable

23

Husqvarna 697610

Flywheel

$

$

Currently unavailable

24

Husqvarna 222698S

Key-Flywheel

$

$

Currently unavailable

25

Husqvarna 795429

Piston Assembly

Note: (Standard Size)

$

$

Currently unavailable

Husqvarna 795430

Piston Assembly (.020" Oversize)

$

$

Currently unavailable

26

Husqvarna 795431

Ring Set

Note: (Standard)

$

$

Currently unavailable

Husqvarna 795432

Ring Set (.020" Oversize)

$

$

Currently unavailable

27

Husqvarna 691866

Lock-Piston Pin

$

$

Currently unavailable

28

Husqvarna 499423

Pin-Piston

$

$

Not available

29

Husqvarna 499424

Rod-Connecting

$

$

Not available

32

Husqvarna 691664

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

32A

Husqvarna 695759

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

33

Husqvarna 499642

Valve-Exhaust

$

$

Not available

34

Husqvarna 499641

Valve-Intake

$

$

Not available

35

Husqvarna 691304

Spring-Valve

Note: (Intake)

$

$

Not available

36

Husqvarna 691304

Spring-Valve

Note: (Exhaust)

$

$

Not available

37

Husqvarna 793756

Guard-Flywheel

$

$

Currently unavailable

40

Husqvarna 692194

Retainer-Valve

$

$

Currently unavailable

43

Husqvarna 691997

Slinger-Governor/Oil

$

$

Currently unavailable

45

Husqvarna 690977

Tappet-Valve

$

$

Not available

46

Husqvarna 694039

Camshaft

$

$

Currently unavailable

48

Husqvarna 692748

Short Block

$

$

Currently unavailable

51

Husqvarna 692668

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

51A

Husqvarna 692555

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095

$4.49

$

In Stock, Qty 20+

0

51B

Husqvarna 697735

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

55

Husqvarna 691421

Housing-Rewind Starter

$

$

Currently unavailable

58

Husqvarna 697316

Rope-Starter

Note: (Cut to Required Length)

$

$

Currently unavailable

60

Husqvarna 281434S

Grip-Starter Rope

$

$

Currently unavailable

65

Husqvarna 690837

Screw

Note: (Rewind Starter)

$

$

Currently unavailable

78

Husqvarna 691108

Screw

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

95

Husqvarna 691636

Screw

Note: (Throttle Valve)

$

$

Currently unavailable

97

Husqvarna 790121

Shaft-Throttle

$

$

Currently unavailable

104

Husqvarna 691242

Pin-Float Hinge

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

117

Husqvarna 498981

Jet-Main

Note: (Standard)

$

$

Currently unavailable

118

Husqvarna 498978

Jet-Main

Note: (High Altitude)

$

$

Currently unavailable

121

Husqvarna 792383

Kit-Carburetor Overhaul

$

$

Currently unavailable

122

Husqvarna 792382

Spacer-Carburetor

$

$

Currently unavailable

125

Husqvarna 790120

Carburetor

$

$

Currently unavailable

127

Husqvarna 694468

Plug-Welch

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

130

Husqvarna 696564

Valve-Throttle

$

$

Currently unavailable

133

Husqvarna 398187

Float-Carburetor

$

$

Not available

134

Husqvarna 398188

Valve-Needle/Seat

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Not available

137

Husqvarna 693981

Gasket-Float Bowl

Note: Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

163

Husqvarna 691894

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

187

Husqvarna 791766

Line-Fuel

Note: (Cut to Required Length)

$

$

Currently unavailable

188

Husqvarna 691147

Screw

Note: (Control Bracket)

$

$

Currently unavailable

190

Husqvarna 690940

Screw

Note: (Fuel Tank)

$

$

Currently unavailable

192

Husqvarna 694543

Ball-Rocker Arm

$

$

Currently unavailable

202

Husqvarna 691303

Link-Mechanical Governor

$

$

Currently unavailable

209

Husqvarna 691851

Spring-Governor

$

$

Currently unavailable

222

Husqvarna 697614

Bracket-Control

$

$

Currently unavailable

227

Husqvarna 691467

Control Lever-Governor

$

$

Currently unavailable

238

Husqvarna 691300

Cap-Valve

$

$

Not available

259

Husqvarna 691189

Bracket-Casing Clamp

$

$

Not available

276

Husqvarna 271716

Washer-Sealing

Note: Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

287

Husqvarna 690940

Screw

Note: (Dipstick Tube)

$

$

Currently unavailable

300

Husqvarna 697590

Muffl er

$

$

Currently unavailable

304

Husqvarna 695976

Housing-Blower

$

$

Currently unavailable

305

Husqvarna 691108

Screw

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

306

Husqvarna 691232

Shield-Cylinder

$

$

Currently unavailable

307

Husqvarna 690345

Screw

Note: (Cylinder Shield)

$

$

Currently unavailable

332

Husqvarna 690662

Nut

Note: (Flywheel)

$

$

Currently unavailable

333

Husqvarna 802574

Armature-Magneto

$

$

Not available

334

Husqvarna 691061

Screw

Note: (Armature Magneto)

$

$

Not available

337

Husqvarna 692051

Plug-Spark

$

$

Currently unavailable

356

Husqvarna 692390

Wire-Stop

$

$

Currently unavailable

358

Husqvarna 795442

Gasket Set-Engine

$

$

Currently unavailable

363

Husqvarna 19069

Puller-Flywheel

$

$

Not available

365

Husqvarna 691129

Screw

Note: (Carburetor)

$

$

Currently unavailable

383

Husqvarna 19374S

Wrench-Spark Plug

$

$

Currently unavailable

404

Husqvarna 690272

Washer

Note: (Governor Crank)

$

$

Currently unavailable

425

Husqvarna 690244

Screw

Note: (Air Cleaner Cover)

$

$

Currently unavailable

443

Husqvarna 690255

Screw

Note: (Air Cleaner Primer Base)

$

$

Currently unavailable
