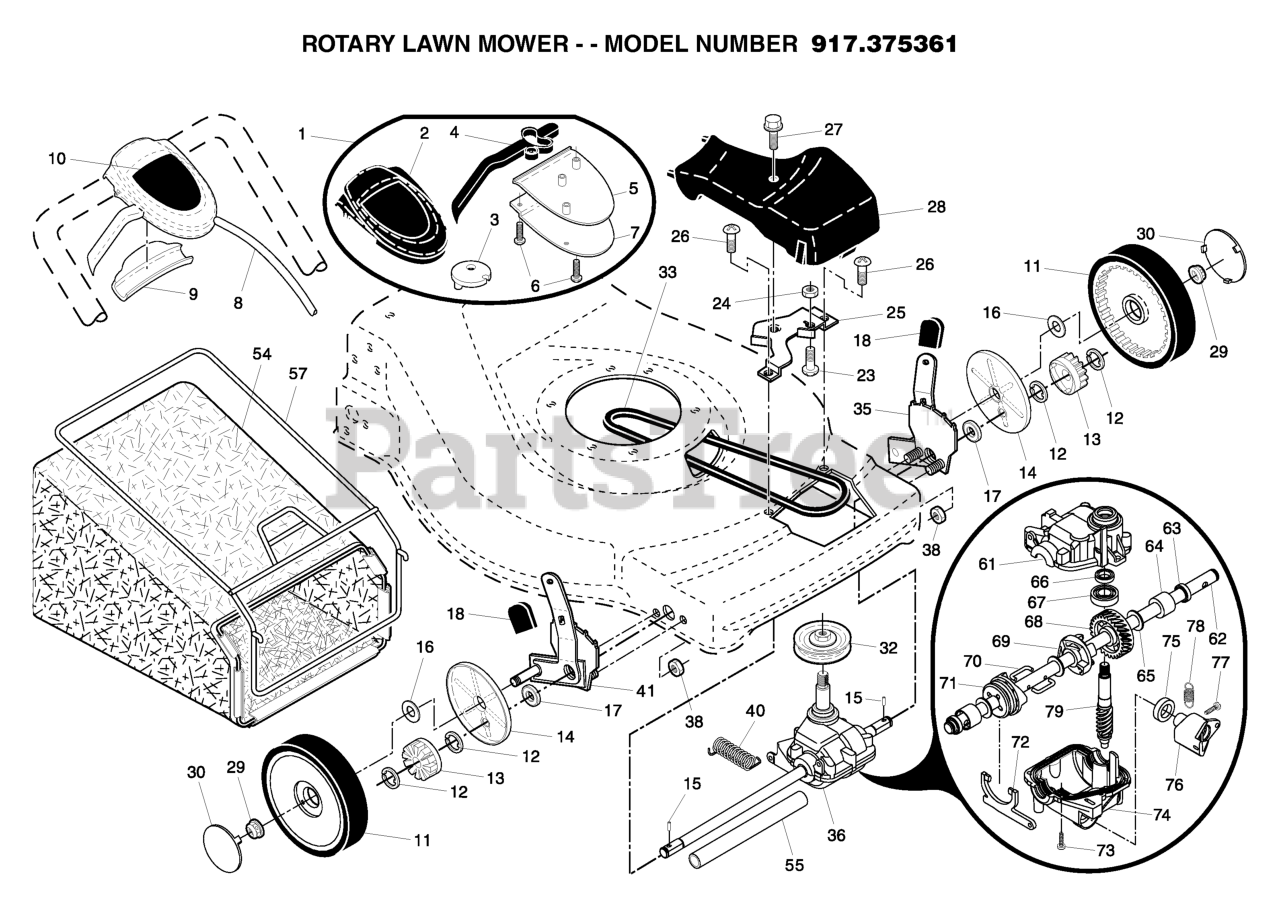

917.375361 - Craftsman Walk-Behind Mower (2005-01) (Sears) REPAIR PARTS 2 Parts Diagram

Walk-Behind Mower

REPAIR PARTS 2 Parts Diagram

  • Title

12

Husqvarna 12000058

E-Ring 7/16
(Superseded to 812000058)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 751152

Nut, Hex, Flanged

$

$

Currently unavailable

26

Husqvarna 188040

Screw

$

$

Not available

55

Husqvarna 86012

Driveshaft Cover

$

$

Not available

29

Husqvarna 145212

Nut, Hex, Flangelock

$

$

Not available

13

Husqvarna 750003

Gear, Pinion

$

$

Currently unavailable

16

Husqvarna 67725

Washer, Flat 3/8
(Superseded to 532067725)

$6.99

$

In Stock, Qty 7

0

23

Husqvarna 88652

Screw, Hinge 1/4-20 x 1-1/4
(Superseded to 532088652)

$3.99

$

In Stock, Qty 11

0
