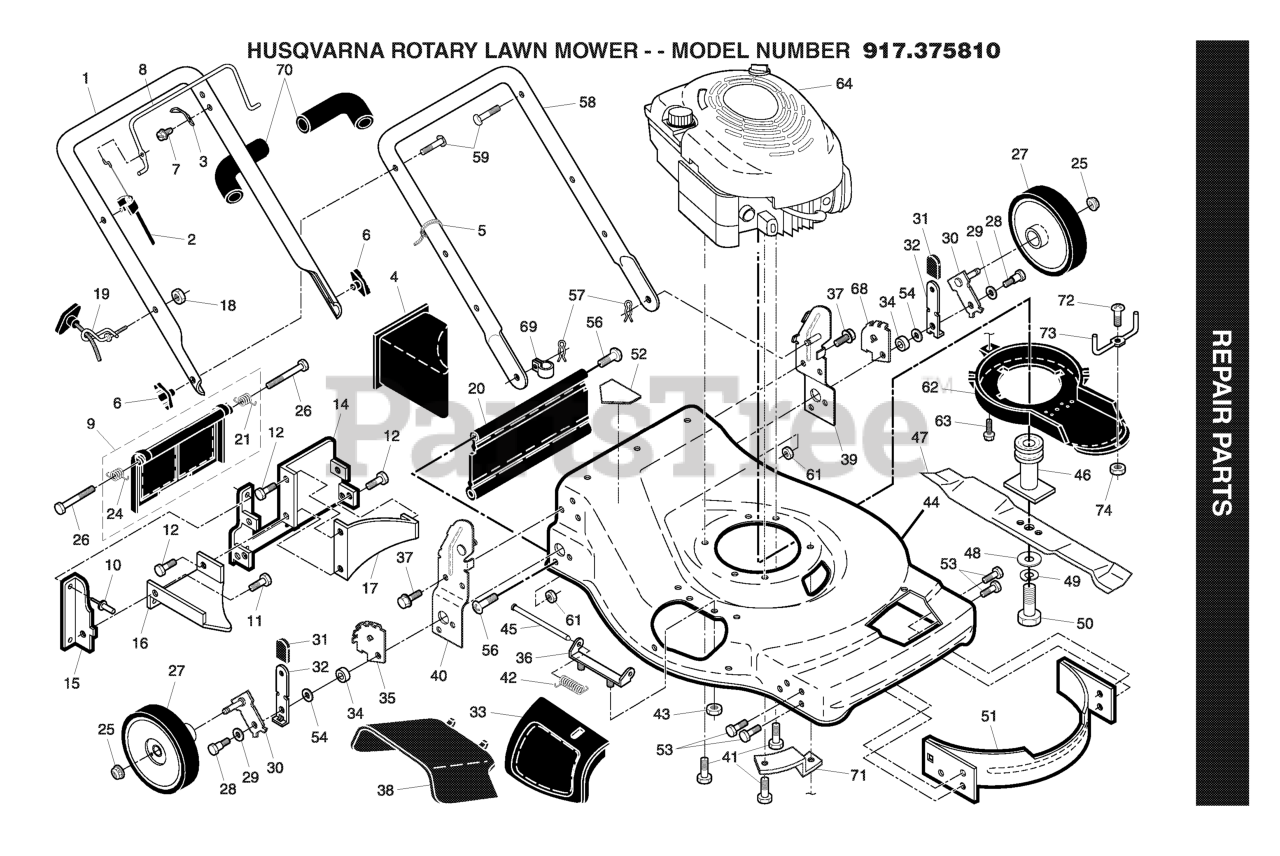

917.375810 - Craftsman Walk-Behind Mower (2006-05) (Sears) REPAIR PARTS 3 Parts Diagram

Walk-Behind Mower

REPAIR PARTS 3 Parts Diagram

  • Title

28

Husqvarna 142748

Bolt, Shoulder 3/8-16 x 1

$

$

Not available

48

Husqvarna 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 194788

Rope Guide
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

11

Husqvarna 150050

Screw, Self Tapping #10-24 x 5/8
(Superseded to 532150050)

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 751592

Locknut, Hex 3/8-16

$

$

Not available

12

Husqvarna 54583

Screw, Hex Hex Head, Sems 1/4-20 x 1/2
(Superseded to 532054583)

$

$

Not available

57

Husqvarna 51793

Cotter, Hairpin
(Superseded to 532051793)

$

$

Not available

34

Husqvarna 146630

Spacer

$

$

Not available

51

Husqvarna 170031

Front Baffle
(Superseded to 532170031)

$

$

Not available

49

Husqvarna 850263

Helical Lock Washer 3/8

$

$

Not available

37

Husqvarna 150078

Screw, Sems, Thread Cutting 5/16-18 x 3/4

$

$

Not available

47

Husqvarna 141114

Blade, 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 3 left!

0

41

Husqvarna 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$5.99

$

In Stock, Qty 12

0

25

Husqvarna 83923

Nut, Flangelock 3/8-16

$

$

Not available

29

Husqvarna 62335

Washer, Belleville
(Superseded to 532062335)

$

$

Not available

7

Husqvarna 750634

Screw, Threaded, Rolled #10-25 x .50
(Superseded to 532750634)

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna 128415

Self Tapping Screw #10-24 x 5/8
(Superseded to 532128415)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 88652

Screw, Hinge 1/4-20 x 1-1/4
(Superseded to 532088652)

$3.99

$

In Stock, Qty 11

0

5

Husqvarna 66426

Wire, Tie

$

$

Not available

43

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0
