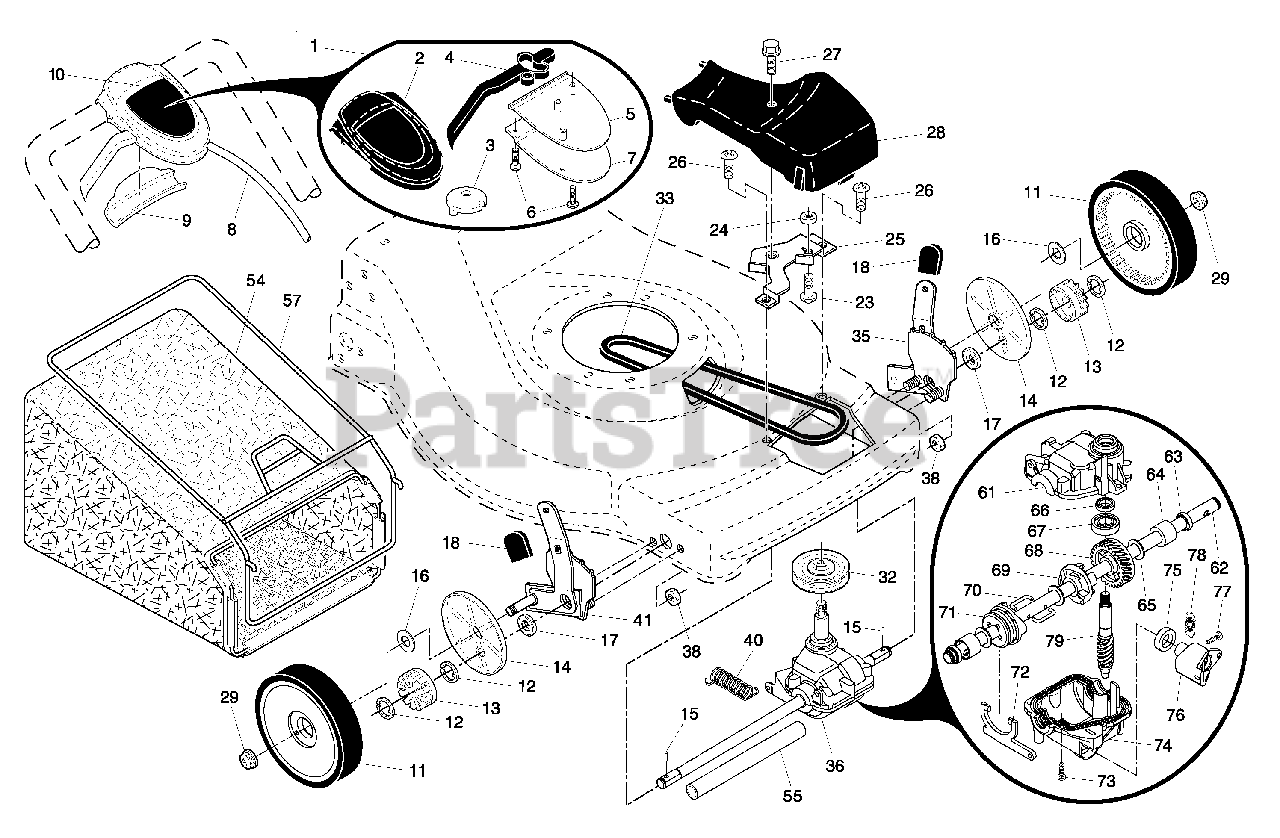

917.375820 - Craftsman Walk-Behind Mower (2006-01) (Sears) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 404142

Drive Control Assembly
(Superseded to 532404142)

Note: (Includes Cable)

$

$

Not available

2

Husqvarna 195745

Cover, Drive Control, Top

$

$

Not available

3

Husqvarna 187353

Pulley
(Superseded to 532187353)

$

$

Not available

4

Husqvarna 190039

Lever, Drive Control

$

$

Not available

5

Husqvarna 195744

Cover, Drive Control, Bottom

$

$

Not available

6

Husqvarna 186198

Screw, Torx Head #8 x 5/8

$

$

Not available

7

Husqvarna 400235X479

Mounting Bracket, Drive Control
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 197195

Cable, Drive Control
(Superseded to 532197195)

$56.99

$

Usually ships in 3-10 days

0

9

Husqvarna 184987

Cap, Drive Control, Bottom
(Superseded to 532184987)

$

$

Not available

10

Husqvarna 189074

Decal, Drive Control
(Superseded to 532189074)

$

$

Not available

11

Husqvarna 193912X460

Wheel & Tire Assembly

$

$

Not available

12

Husqvarna 12000058

E-Ring
(Superseded to 812000058)

$3.49

$

In Stock, Qty 12

0

13

Husqvarna 750003

Gear, Pinion

$

$

Currently unavailable

14

Husqvarna 189403

Dust Cover

$

$

Not available

15

Husqvarna 191017

Pawl, Drive

$

$

Currently unavailable

16

Husqvarna 67725

Washer, Flat 3/8
(Superseded to 532067725)

$6.99

$

In Stock, only 3 left!

0

17

Husqvarna 191039

Bearing, Wheel Adjuster

$

$

Currently unavailable

18

Husqvarna 196401

Selector Knob
(Superseded to 532196401)

$4.99

$

In Stock, only 4 left!

0

23

Husqvarna 88652

Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$3.99

$

In Stock, Qty 12

0

24

Husqvarna 191730

Nut, Hex
(Superseded to 532191730)

$3.99

$

In Stock, Qty 6

0

25

Husqvarna 197163X479

Belt Guide Bracket
(Superseded to 532197386)

$

$

Not available

26

Husqvarna 192325

Screw
(Superseded to 532192325)

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$3.49

$

In Stock, Qty 7

0

28

Husqvarna 194407X418

Drive Cover
(Superseded to 583721101)

$

$

Not available

29

Husqvarna 83923

Locknut, Hex

$

$

Not available

32

Husqvarna 194018

Drive Pulley

$

$

Not available

33

Husqvarna 196857

V-Belt
(Superseded to 532196857)

$20.99

$

In Stock, Qty 6

0

35

Husqvarna 195110

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 191636

Gearcase Assembly, Complete
(Superseded to 532191636)

$

$

Not available

38

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 192849

Spring

$

$

Not available

41

Husqvarna 195107

Kit, Wheel Adjuster, RH

Note: (Includes Knob and Bearing)

$

$

Currently unavailable

54

Husqvarna 401189

Grassbag Assembly

$

$

Not available

55

Husqvarna 86012

Driveshaft Cover

$

$

Not available

57

Husqvarna 189680

Frame, Grassbag
(Superseded to 532189680)

$

$

Not available

61

Husqvarna 196886

Case, Upper
(Superseded to 532196886)

$14.99

$

In Stock, only 1 left!

0

62

Husqvarna 197057

Shaft, Output
(Superseded to 532197057)

$

$

Not available

63

Husqvarna 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, Qty 7

0

64

Husqvarna 183511

Bushing
(Superseded to 532183511)

$

$

Not available

65

Husqvarna 183509

Washer
(Superseded to 532183509)

$5.99

$

Usually ships in 3-10 days

0

66

Husqvarna 183514

Seal, Worm Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 1 left!

0

67

Husqvarna 183506

Bearing, Ball
(Superseded to 532183506)

$6.99

$

In Stock, only 1 left!

0

68

Husqvarna 183499

Gear, 27 Teeth
(Superseded to 532183499)

$

$

Not available

69

Husqvarna 196884

Fixed Dog Clutch
(Superseded to 532196884)

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 183505

Wireform
(Superseded to 532183505)

$6.99

$

In Stock, only 1 left!

0

71

Husqvarna 196883

Movable Dog Clutch
(Superseded to 532196883)

$

$

Not available

72

Husqvarna 196882

Fork
(Superseded to 532196882)

$

$

Not available

73

Husqvarna 183513

Screw, Case

$2.99

$

In Stock, only 4 left!

0

74

Husqvarna 196881

Case, Lower
(Superseded to 532196881)

$14.99

$

In Stock, only 1 left!

0

75

Husqvarna 196880

Seal, Lever
(Superseded to 532196880)

$5.99

$

In Stock, only 1 left!

0

76

Husqvarna 196879

Lever
(Superseded to 532196879)

$6.99

$

In Stock, only 1 left!

0

77

Husqvarna 196878

Screw, Lever
(Superseded to 532196878)

$

$

Not available

78

Husqvarna 196877

Spring
(Superseded to 532196877)

$

$

Not available

79

Husqvarna 183502

Shaft, Worm
(Superseded to 532183502)

$31.99

$

In Stock, only 1 left!

0
