917.375830 - Craftsman Walk-Behind Mower (2006-01) (Sears) Briggs & Stratton 4-Cycle Engine (Part 1) Parts Diagram

Walk-Behind Mower

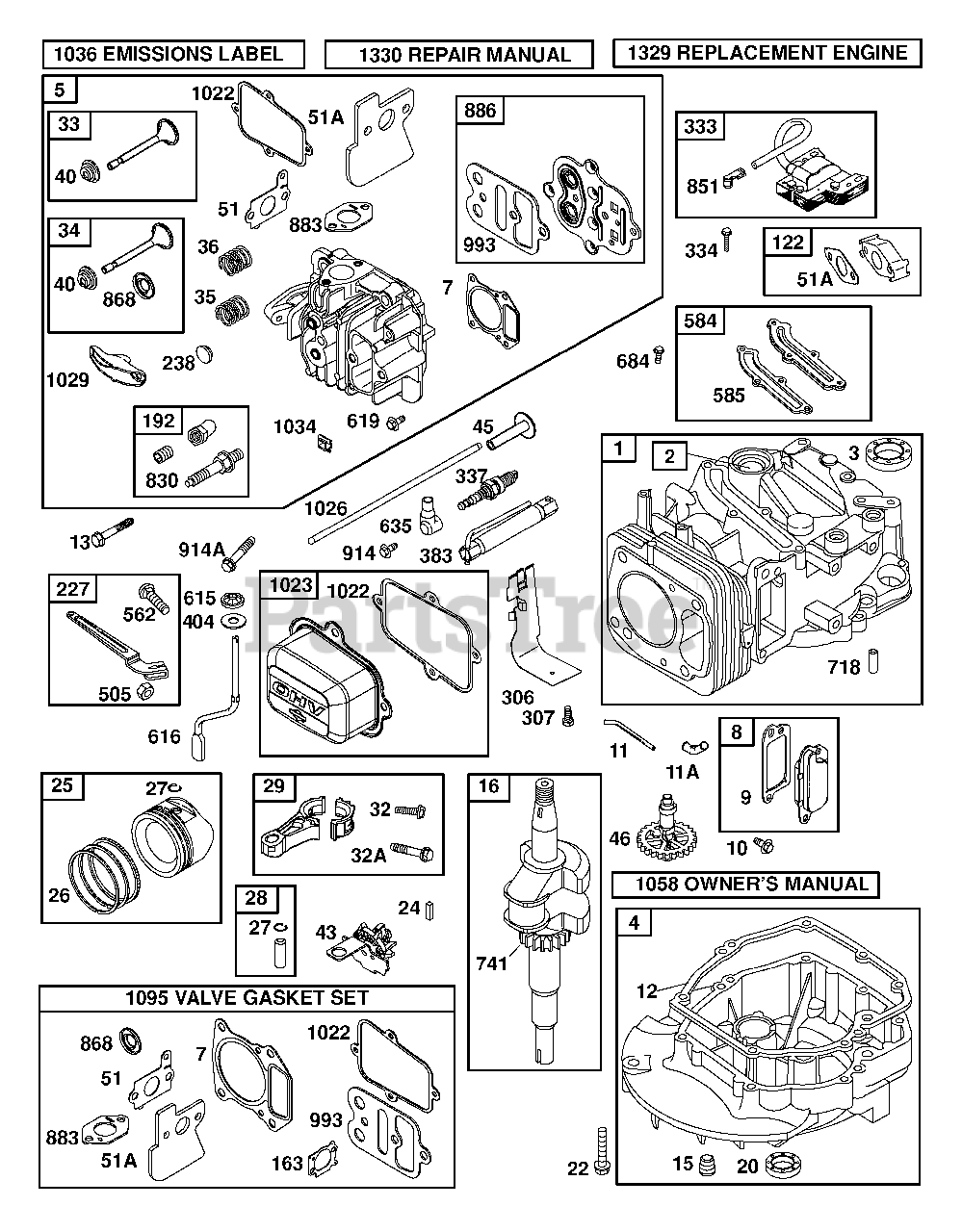

Briggs & Stratton 4-Cycle Engine (Part 1) Parts Diagram

  • Title

1

Husqvarna 692670

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 399269

Kit-Bushing/Seal

$

$

Not available

3

299819s

Seal-Oil

Note: (Magneto Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

4

Husqvarna 493279

Sump-Engine

$

$

Not available

5

Husqvarna 792381

Head-Cylinder

$

$

Currently unavailable

7

Husqvarna 697230

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

8

Husqvarna 495786

Breather Assembly

$

$

Not available

9

Husqvarna 699833

Gasket-Breather

$

$

Currently unavailable

10

Husqvarna 691125

Screw

Note: (Breather Assembly)

$

$

Currently unavailable

11

Husqvarna 691260

Tube-Breather

$

$

Currently unavailable

11A

Husqvarna 692937

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

13

Husqvarna 691137

Screw

Note: (Cylinder Head)

$

$

Currently unavailable

15

Husqvarna 691680

Plug-Oil Drain

$

$

Currently unavailable

16

Husqvarna 691456

Crankshaft

$

$

Currently unavailable

20

399781s

Seal-Oil

Note: (PTO Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

22

Husqvarna 691092

Screw

Note: (Engine Sump)

$

$

Currently unavailable

24

222698s

Key-Flywheel

$

$

Not available

25

Husqvarna 791968

Piston Assembly

Note: (Standard)

$

$

Currently unavailable

25

Husqvarna 791326

Piston Assembly

Note: (.020" Oversize)

$

$

Currently unavailable

26

Husqvarna 791969

Ring Set-Piston

Note: (Standard)

$

$

Currently unavailable

26

Husqvarna 791324

Ring Set-Piston

Note: (.020" Oversize)

$

$

Currently unavailable

27

Husqvarna 691866

Lock-Piston Pin

$

$

Currently unavailable

28

Husqvarna 499423

Pin-Piston

$

$

Not available

29

Husqvarna 499424

Rod-Connecting

$

$

Not available

32

Husqvarna 691664

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

32A

Husqvarna 695759

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

33

Husqvarna 499642

Valve-Exhaust

$

$

Not available

34

Husqvarna 499641

Valve-Intake

$

$

Not available

35

Husqvarna 691304

Spring-Valve (Intake)

$

$

Not available

36

Husqvarna 691304

Spring-Valve (Exhaust)

$

$

Not available

40

Husqvarna 692194

Retainer-Valve

$

$

Currently unavailable

43

Husqvarna 691997

Slinger-Governor/Oil

$

$

Currently unavailable

45

Husqvarna 690977

Tappet-Valve

$

$

Not available

46

Husqvarna 694039

Camshaft

$

$

Currently unavailable

51

Husqvarna 692668

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

51A

Husqvarna 692555

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$3.99

$

In Stock, Qty 20+

0

122

Husqvarna 792382

Spacer-Carburetor

$

$

Currently unavailable

163

Husqvarna 691894

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

192

Husqvarna 694543

Ball-Rocker Arm

$

$

Currently unavailable

227

Husqvarna 691467

Control Lever-Governor

$

$

Currently unavailable

238

Husqvarna 691300

Cap-Valve

$

$

Not available

306

Husqvarna 691232

Shield-Cylinder

$

$

Currently unavailable

307

Husqvarna 690345

Screw

Note: (Cylinder Shield)

$

$

Currently unavailable

333

Husqvarna 802574

Armature-Magneto

$

$

Not available

334

Husqvarna 691061

Screw

Note: (Armature Magneto)

$

$

Not available

337

Husqvarna 692051

Plug-Spark

$

$

Currently unavailable

383

19374s

Wrench-Spark Plug

$

$

Not available

404

Husqvarna 690272

Washer

Note: (Governor Crank)

$

$

Currently unavailable

505

Husqvarna 691251

Nut

Note: (Gov. Control Lever)

$

$

Currently unavailable

562

Husqvarna 92613

Bolt

Note: (Gov. Control Lever)

$

$

Not available

584

Husqvarna 697734

Cover-Breather Passage

$

$

Currently unavailable

585

Husqvarna 691879

Gasket-Breather Passage

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

615

Husqvarna 690340

Retainer-Governor Shaft

$

$

Currently unavailable

616

Husqvarna 698801

Crank-Governor

$

$

Currently unavailable

619

Husqvarna 691108

Screw

Note: (Cylinder Head Plate)

$3.49

$

In Stock, Qty 20+

0

635

66538s

Boot-Spark Plug

$

$

Not available

684

Husqvarna 690345

Screw

Note: (Breather Cover)

$

$

Currently unavailable

718

Husqvarna 690959

Pin-Locating

$

$

Not available

741

Husqvarna 790345

Gear-Timing

$

$

Currently unavailable

830

Husqvarna 694544

Stud

Note: (Rocker Arm)

$

$

Currently unavailable

851

493880s

Terminal-Spark Plug

$

$

Not available

868

Husqvarna 692044

Seal-Valve

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

883

Husqvarna 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

886

Husqvarna 696268

Gasket Kit - Cylinder Head / Plate

$

$

Currently unavailable

914

Husqvarna 691108

Screw

Note: (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

914A

Husqvarna 691127

Screw

Note: (Rocker Cover)

$

$

Currently unavailable

993

Husqvarna 694088

Gasket-Cylinder Head Plate

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

1022

Husqvarna 691890

Gasket-Rocker Cover

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

1023

Husqvarna 499624

Cover-Rocker Arm

$

$

Not available

1026

Husqvarna 692045

Rod-Push

$

$

Currently unavailable

1029

Husqvarna 691230

Arm-Rocker

$

$

Not available

1034

Husqvarna 691343

Guide-Push Rod

$

$

Not available

1036

Husqvarna 792166

Label-Emissions

$

$

Not available

1058

Husqvarna 275054

Owner's Manual

$

$

Currently unavailable

1095

Husqvarna 792386

Set-Valve Gasket

$

$

Currently unavailable

1329

Husqvarna 1216020625

Replacement Engine

$

$

Currently unavailable

1330

Husqvarna 272147

Repair Manual

$

$

Currently unavailable

Husqvarna 398067

Spark Arrester

Note: (available accessory)

$

$

Currently unavailable
