917.375830 - Craftsman Walk-Behind Mower (2006-01) (Sears) Briggs & Stratton 4-Cycle Engine (Part 2) Parts Diagram

Walk-Behind Mower

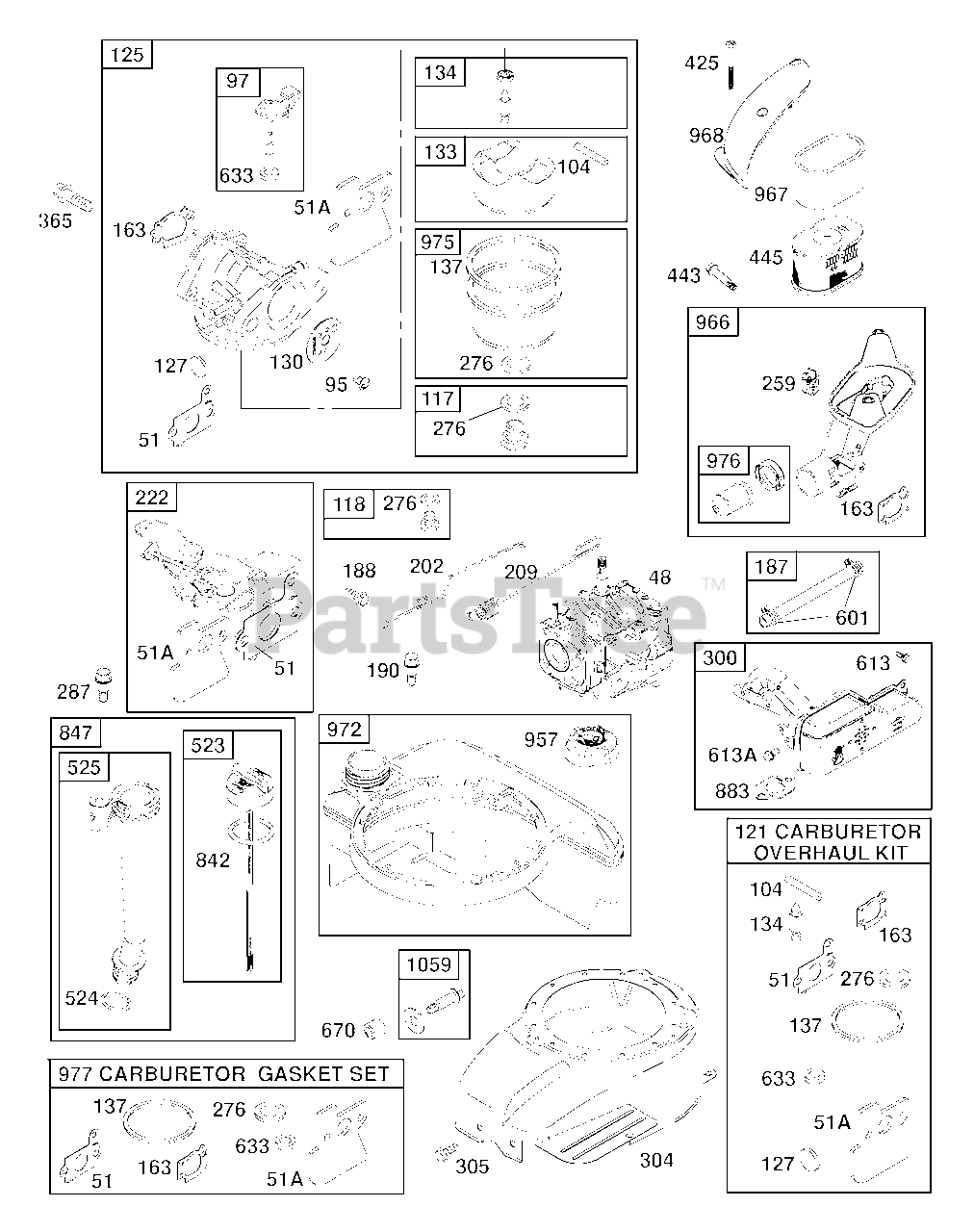

Briggs & Stratton 4-Cycle Engine (Part 2) Parts Diagram

  • Title

48

Husqvarna 692748

Short Block

$

$

Currently unavailable

51

Husqvarna 692668

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

51A

Husqvarna 692555

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$3.99

$

In Stock, Qty 20+

0

95

Husqvarna 691636

Screw

Note: (Throttle Valve)

$

$

Currently unavailable

97

Husqvarna 790121

Shaft-Throttle

$

$

Currently unavailable

104

Husqvarna 691242

Pin-Float Hinge

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

117

Husqvarna 498981

Jet-Main

Note: (Standard)

$

$

Currently unavailable

118

Husqvarna 498978

Jet-Main

Note: (High Altitude)

$

$

Currently unavailable

121

Husqvarna 792383

Kit-Carburetor Overhaul

$

$

Currently unavailable

125

Husqvarna 790120

Carburetor

$

$

Currently unavailable

127

Husqvarna 694468

Plug-Welch

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

130

Husqvarna 696564

Valve-Throttle

$

$

Currently unavailable

133

Husqvarna 398187

Float-Carburetor

$

$

Not available

134

Husqvarna 398188

Valve-Needle/Seat

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Not available

137

Husqvarna 693981

Gasket-Float Bowl

Note: Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

163

Husqvarna 691894

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

187

Husqvarna 791766

Line-Fuel

Note: (Cut to Length)

$

$

Currently unavailable

188

Husqvarna 691147

Screw

Note: (Control Bracket)

$

$

Currently unavailable

190

Husqvarna 690940

Screw

Note: (Fuel Tank)

$

$

Currently unavailable

202

Husqvarna 691303

Link-Mechanical Governor

$

$

Currently unavailable

209

Husqvarna 691851

Spring-Governor

$

$

Currently unavailable

222

Husqvarna 697614

Bracket-Control

$

$

Currently unavailable

259

Husqvarna 691189

Bracket-Casing Clamp

$

$

Not available

276

Husqvarna 271716

Washer-Sealing

Note: Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

287

Husqvarna 690940

Screw

Note: (Dipstick Tube)

$

$

Currently unavailable

300

Husqvarna 697590

Muffler

$

$

Currently unavailable

304

Husqvarna 695976

Housing-Blower

$

$

Currently unavailable

305

Husqvarna 691108

Screw

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

365

Husqvarna 691129

Screw

Note: (Carburetor)

$

$

Currently unavailable

425

Husqvarna 690244

Screw

Note: (Air Cleaner Cover)

$

$

Currently unavailable

443

Husqvarna 690255

Screw

Note: (Air Cleaner Base)

$

$

Currently unavailable

445

Husqvarna 697029

Filter-Air Cleaner Cartridge

$

$

Currently unavailable

523

Husqvarna 499621

Dipstick

$

$

Currently unavailable

524

Husqvarna 692296

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

525

Husqvarna 495265

Tube-Dipstick

$

$

Not available

601

Husqvarna 791850

Clamp-Hose

$

$

Currently unavailable

613

Husqvarna 691108

Screw

Note: (Muffler)

$3.49

$

In Stock, Qty 20+

0

613A

Husqvarna 691140

Screw

Note: (Muffler)

$

$

Currently unavailable

633

Husqvarna 691321

Seal-Throttle Shaft

Note: Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

670

Husqvarna 692294

Spacer-Fuel Tank

$

$

Currently unavailable

842

Husqvarna 691031

Seal-O Ring

Note: (Dipstick Tube); Included in Engine Gasket Set, Key No. 358

$

$

Not available

847

Husqvarna 692047

Assembly-Dipstick/Tube

$

$

Currently unavailable

883

Husqvarna 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

957

Husqvarna 692046

Cap-Fuel Tank

$

$

Currently unavailable

966

Husqvarna 690243

Base-Air Cleaner Primer

$

$

Currently unavailable

967

Husqvarna 273356

Filter-Pre Cleaner

$

$

Not available

968

Husqvarna 691342

Cover-Air Cleaner

$

$

Not available

972

Husqvarna 699374

Tank-Fuel

$

$

Currently unavailable

975

Husqvarna 493640

Bowl-Float

$

$

Not available

976

Husqvarna 694395

Primer-Carburetor

$

$

Currently unavailable

977

Husqvarna 792385

Set-Carburetor Gasket

$

$

Currently unavailable

1059

Husqvarna 692311

Kit-Screw/Washer

$

$

Currently unavailable

Husqvarna 398067

Spark Arrester

Note: (available accessory)

$

$

Currently unavailable
