917.375830 - Craftsman Walk-Behind Mower (2006-01) (Sears) Briggs & Stratton 4-Cycle Engine (Part 3) Parts Diagram

Walk-Behind Mower

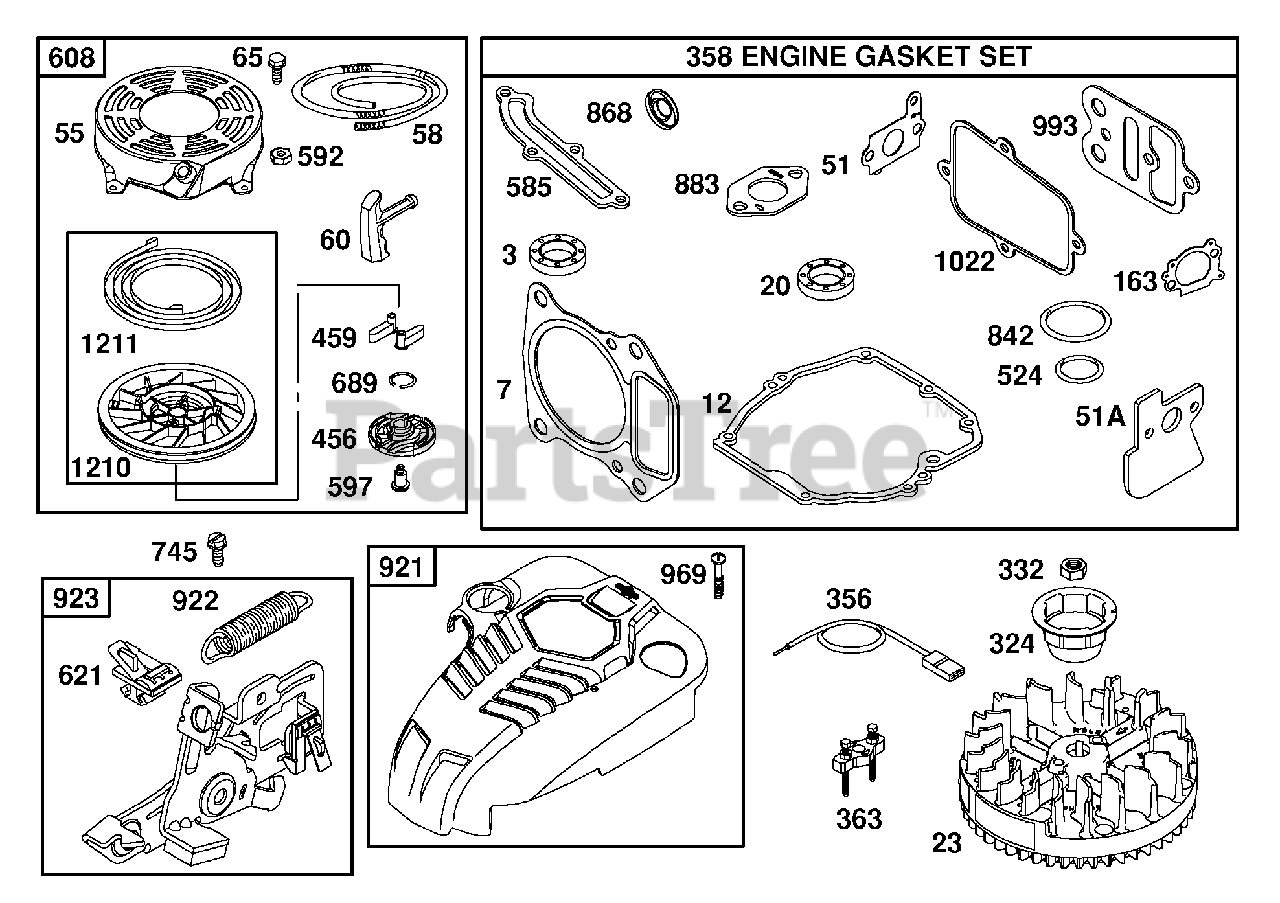

Briggs & Stratton 4-Cycle Engine (Part 3) Parts Diagram

  • Title

3

299819s

Seal-Oil

Note: (Magneto Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

7

Husqvarna 697230

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

12

Husqvarna 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

20

399781s

Seal-Oil

Note: (PTO Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

23

Husqvarna 697610

Flywheel

$

$

Currently unavailable

51

Husqvarna 692668

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

51A

Husqvarna 692555

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 691421

Housing-Rewind Starter

$

$

Currently unavailable

58

Husqvarna 697316

Rope-Starter

Note: (Cut to Length)

$

$

Currently unavailable

60

Husqvarna 281434

Grip-Starter Rope

$

$

Not available

65

Husqvarna 690837

Screw

Note: (Rewind Starter)

$

$

Currently unavailable

163

Husqvarna 691894

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

324

Husqvarna 695161

Cup/Screen Assembly

$

$

Currently unavailable

332

Husqvarna 690662

Nut

Note: (Flywheel)

$

$

Currently unavailable

356

Husqvarna 692390

Wire-Stop

$

$

Currently unavailable

358

Husqvarna 792384

Gasket Set-Engine

$

$

Currently unavailable

363

Husqvarna 19069

Puller-Flywheel

$

$

Not available

456

Husqvarna 692299

Plate-Pawl Friction

$

$

Currently unavailable

459

281505s

Pawl-Ratchet

$

$

Not available

524

Husqvarna 692296

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

585

Husqvarna 691879

Gasket-Breather Passage

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

592

Husqvarna 690800

Nut

Note: (Rewind Starter)

$

$

Currently unavailable

597

Husqvarna 691696

Screw

Note: (Pawl Friction Plate)

$

$

Currently unavailable

608

Husqvarna 497680

Starter-Rewind

$

$

Not available

621

Husqvarna 692310

Switch-Stop

$

$

Not available

689

Husqvarna 691855

Spring-Friction

$

$

Currently unavailable

745

Husqvarna 691648

Screw

Note: (Brake)

$

$

Not available

842

Husqvarna 691031

Seal-O Ring

Note: (Dipstick Tube); Included in Engine Gasket Set, Key No. 358

$

$

Not available

868

Husqvarna 692044

Seal-Valve

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

883

Husqvarna 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

921

Husqvarna 691465

Cover-Blower Housing

$

$

Currently unavailable

922

Husqvarna 692135

Spring-Brake

$

$

Currently unavailable

923

Husqvarna 695891

Brake

$

$

Currently unavailable

969

Husqvarna 691138

Screw

Note: (Blower Cover)

$

$

Currently unavailable

993

Husqvarna 694088

Gasket-Cylinder Head Plate

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

1022

Husqvarna 691890

Gasket-Rocker Cover

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$

$

Currently unavailable

1210

Husqvarna 498144

Pulley/Spring Assy.

Note: (Pulley)

$

$

Not available

1211

Husqvarna 498144

Pulley/Spring Assy.

Note: (Spring)

$

$

Not available

Husqvarna 398067

Spark Arrester

Note: (available accessory)

$

$

Currently unavailable
