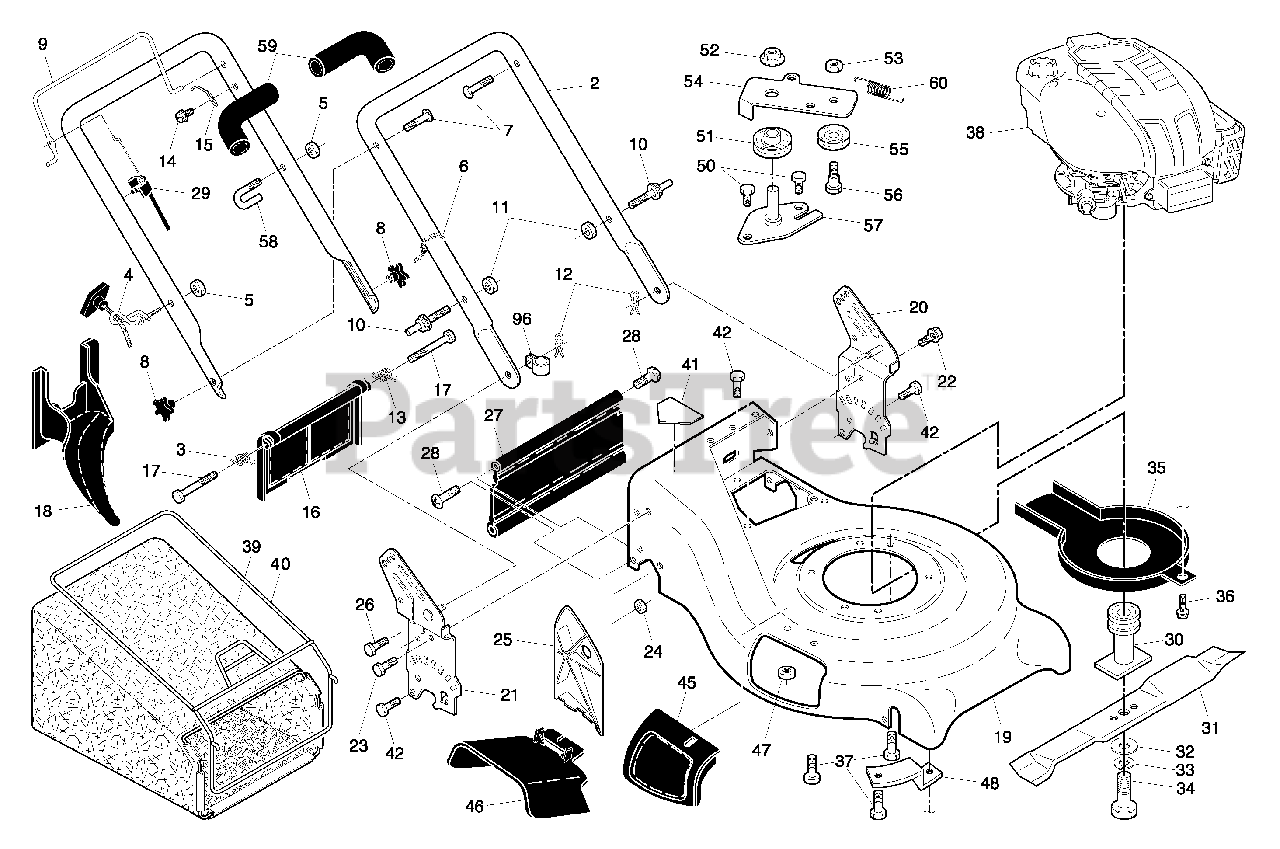

917.375830 - Craftsman Walk-Behind Mower (2006-01) (Sears) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 199982

Upper Handle Assembly
(Superseded to 532199982)

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 193664X498

Handle, Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 186053

Spring, Rear Door, RH
(Superseded to 532186053)

$

$

Not available

4

Husqvarna 194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

5

Husqvarna 132004

Nut, Hex, with Lockwasher Insert 1/4-20

$

$

Not available

6

Husqvarna 66426

Wire, Tie

$

$

Not available

7

Husqvarna 191574

Bolt, Handle 5/16-18 x 2-5/8
(Superseded to 532191574)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 185588

Knob, Handle
(Superseded to 532185588)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 194580X422

Control Bar
(Superseded to 532197019)

$

$

Not available

10

Husqvarna 188821

Pin, Handle Adjustment
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 73930500

Nut, Hex
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 51793

Cotter, Hairpin
(Superseded to 532051793)

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 186052

Spring, Rear Door, LH
(Superseded to 532186052)

$

$

Not available

14

Husqvarna 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 185855X428

Rear Door Assembly
(Superseded to 532190574)

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

18

Husqvarna 198170

Plug, Mulcher
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 402549

Kit, Housing

$125.99

$

In Stock, only 1 left!

0

20

Husqvarna 192980X479

Handle Bracket Assembly, LH
(Superseded to 532403296)

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 192979X479

Handle Bracket Assembly, RH
(Superseded to 532403297)

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 150078

Screw, Hex Washer Head

$

$

Not available

23

Husqvarna 163183

Bolt, Hex Head 5/16-18 x 5/8
(Superseded to 532163183)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 73800500

Nut, Hex, with Lockwasher Insert 5/16-18

$

$

Not available

25

Husqvarna 161333

Baffle, Side
(Superseded to 532161333)

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 163409

Screw #12 x 5/8
(Superseded to 532163409)

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 192876

Skirt, Rear
(Superseded to 532192876)

$

$

Not available

28

Husqvarna 88652

Screw, Hinge 1/4-20 x 1.25
(Superseded to 532088652)

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 191221

Cable, Operator Presence
(Superseded to 532191221)

$22.99

$

In Stock, Qty 6

0

30

Husqvarna 189179

Blade Adapter / Pulley

$18.99

$

In Stock, Qty 6

0

31

Husqvarna 189028

Blade, 21"
(Superseded to 532189028)

$14.99

$

In Stock, Qty 18

0

32

Husqvarna 851074

Washer
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 850263

Washer, Lock

$

$

Not available

34

Husqvarna 851084

Bolt, Hex Head
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 188786

Debris Shield
(Superseded to 532188786)

$

$

Not available

36

Husqvarna 192325

Bolt
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 150406

Bolt, Engine
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

38

Engine, Briggs & Stratton, Model Number 128602-0551-E1

Note: (See Breakdown)

$

$

Not available

39

Husqvarna 401683

Grassbag
(Superseded to 532401683)

$91.99

$

Usually ships in 3-10 days

0

40

Husqvarna 194644

Frame, Grassbag
(Superseded to 532194644)

$60.99

$

Usually ships in 3-10 days

0

41

Husqvarna 85463

Danger Decal
(Superseded to 539913010)

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 54583

Screw
(Superseded to 532054583)

$

$

Not available

45

Husqvarna 183058X418

Mulcher Door Assembly

$

$

Not available

46

Husqvarna 169699X418

Discharge Guard

$

$

Not available

47

Husqvarna 88349

Nut, Hex
(Superseded to 532088349)

$7.49

$

In Stock, only 3 left!

0

48

Husqvarna 188839X004

Mounting Bracket,Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 57808

Screw
(Superseded to 582000801)

$

$

Not available

51

Husqvarna 193791

Pulley, Idler
(Superseded to 532193791)

$

$

Not available

52

Husqvarna 145212

Flanged Nut

$

$

Not available

53

Husqvarna 155552

Locknut

$

$

Currently unavailable

54

Husqvarna 193792X004

Idler Arm
(Superseded to 532193792)

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 166043

Idler Pulley
(Superseded to 532166043)

$31.99

$

In Stock, Qty 6

0

56

Husqvarna 160829

Shoulder Bolt
(Superseded to 532160829)

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 193315

Bracket Assembly
(Superseded to 532193315)

$6.49

$

In Stock, Qty 5

0

58

Husqvarna 182003

Clip, Wireform (Packaging)
(Superseded to 532182003)

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 182748

Grip, Foam
(Superseded to 532182748)

$

$

Not available

60

Husqvarna 182226

Spring, Return
(Superseded to 532182226)

$8.99

$

In Stock, Qty 20+

0

96

Husqvarna 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 9

0

Husqvarna 161058

Warning Decal
(Superseded to 532161058)

Note: (not shown)

$6.49

$

In Stock, only 1 left!

0

Husqvarna 402780

Owner's Manual,English / Spanish
(Superseded to 917402780)

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 7133623

Gas Can (2.5 Gallon Container)

Note: Available accessories not included with mower

$

$

Currently unavailable

Husqvarna 7133500

Fuel Stabilizer

Note: Available accessories not included with mower

$

$

Currently unavailable

Husqvarna 7133000

SAE 30W Oil (20 Ounce Bottle)

Note: Available accessories not included with mower

$

$

Currently unavailable
