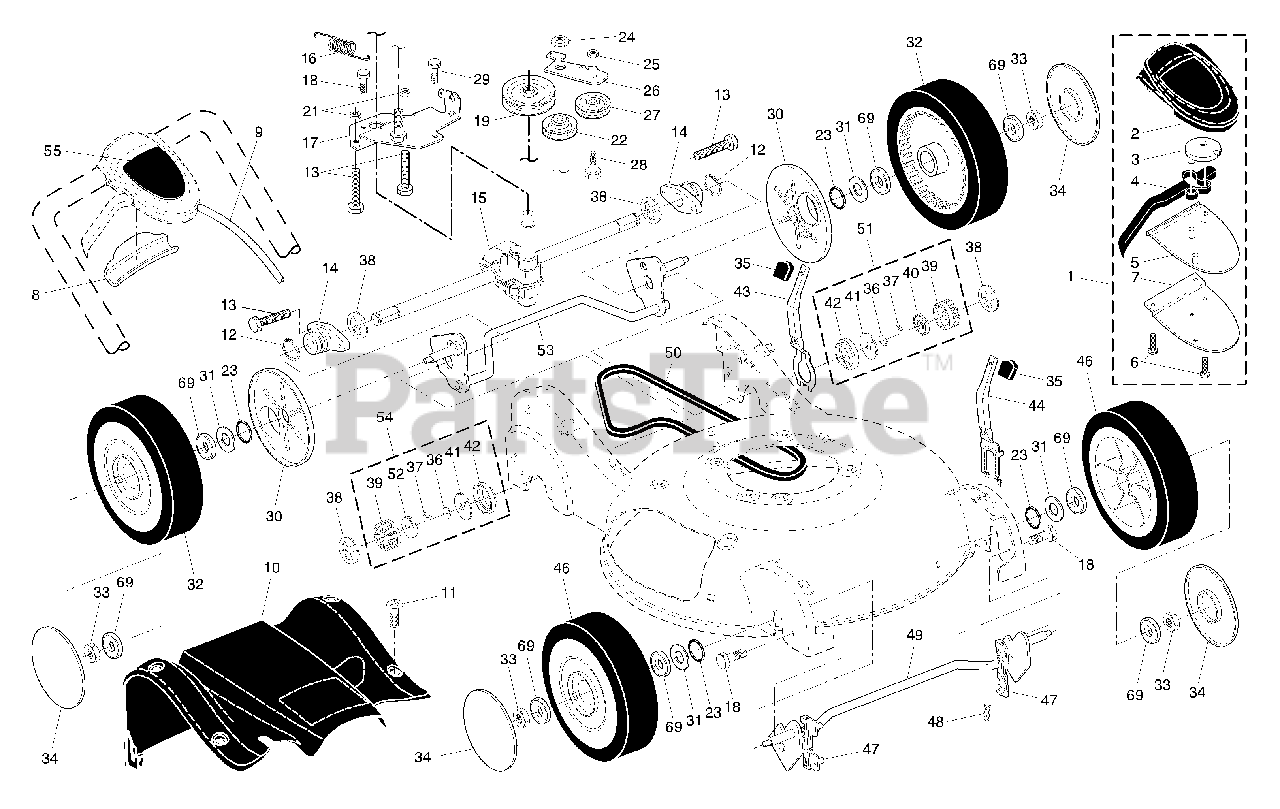

917.375950 - Craftsman Walk-Behind Mower (2005-01) (Sears) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 197012

Drive Control Assembly, Complete
(Superseded to 532197012)

Note: (Consists of Key Numbers 2 through 7)

$

$

Not available

2

Husqvarna 195761

Cover, Drive Control, Top
(Superseded to 532414555)

$

$

Not available

3

Husqvarna 187353

Pulley, Drive Control
(Superseded to 532187353)

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 190037

Lever, Drive Control (blue)

$

$

Not available

5

Husqvarna 195762

Cover, Drive Control, Bottom

$

$

Not available

6

Husqvarna 181698

Screw, Torx Head #8-5/8
(Superseded to 532181698)

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 187097

Bracket, Mounting, Drive Control

$

$

Currently unavailable

8

Husqvarna 186297

Cap, Drive Control, Bottom
(Superseded to 532186297)

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 197011

Cable, Drive Control
(Superseded to 532197011)

$53.99

$

Usually ships in 3-10 days

0

10

Husqvarna 196956

Cover Assembly, Drive

$

$

Currently unavailable

11

Husqvarna 184571

Screw

$

$

Not available

12

Husqvarna 12000012

Ring, Retaining
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 183450

Screw

$

$

Not available

14

Husqvarna 187120

Bearing / Axle Support
(Superseded to 532187120)

$

$

Not available

15

Husqvarna 188294

Gear Case Assembly
(Superseded to 532188294)

Note: (See Breakdown)

$133.99

$

Usually ships in 3-10 days

0

16

Husqvarna 194124

Spring, Return
(Superseded to 532194124)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 196822

Bracket, Gear Case / Drive Pulley

$

$

Currently unavailable

18

Husqvarna 163409

Screw
(Superseded to 532163409)

$7.49

$

In Stock, Qty 12

0

19

Husqvarna 194128

Pulley, Drive
(Superseded to 532194128)

$18.99

$

In Stock, Qty 16

0

21

Husqvarna 132004

Nut, Hex

$

$

Not available

22

Husqvarna 193791

Pulley Assembly, VGroove
(Superseded to 532193791)

$

$

Not available

23

Husqvarna 188152

ORing

$

$

Not available

24

Husqvarna 145212

Nut, Hex, Flangelock

$

$

Not available

25

Husqvarna 73930500

Nut, Hex, Lock
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 196542

Idler Arm

$

$

Currently unavailable

27

Husqvarna 166043

Pulley, Idler
(Superseded to 532166043)

$31.99

$

In Stock, Qty 6

0

28

Husqvarna 160829

Bolt, Hex Head, Shoulder
(Superseded to 532160829)

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 17060410

Screw 1/4-20 x 1-1/16
(Superseded to 817060410)

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 183457

Cover, Dust, Wheel
(Superseded to 532183457)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 88348

Washer, Flat 3/8
(Superseded to 532088348)

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 192619

Wheel Assembly, Rear 9 x 2-1/4
(Superseded to 532192619)

$67.99

$

In Stock, only 2 left!

0

33

Husqvarna 83923

Nut, Hex

$

$

Not available

34

Husqvarna 183695

Hubcap
(Superseded to 532183442)

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 185994

Knob
(Superseded to 532185994)

$15.99

$

In Stock, only 3 left!

0

36

Husqvarna 188291

Spring, Torsion
(Superseded to 532188291)

$5.99

$

In Stock, Qty 13

0

37

Husqvarna 175098

Pawl
(Superseded to 532175098)

$6.49

$

In Stock, Qty 10

0

38

Husqvarna 12000058

ERing
(Superseded to 812000058)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 175103

Gear
(Superseded to 532175103)

$

$

Not available

40

Husqvarna 175105

Retainer, Drive, LH
(Superseded to 532175105)

$

$

Not available

41

Husqvarna 175104

Disc, Drive
(Superseded to 532175104)

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 184172

Seal, Friction
(Superseded to 532184172)

$7.49

$

In Stock, only 1 left!

0

43

Husqvarna 190520

Lever, Selector, Wheel Height, Rear

$

$

Currently unavailable

44

Husqvarna 190518

Lever, Selector, Wheel Height, Front

$

$

Currently unavailable

45

Husqvarna 163409

Screw
(Superseded to 532163409)

$7.49

$

In Stock, Qty 12

0

46

Husqvarna 192230

Wheel Assembly, Front 9 x 2-1/4
(Superseded to 532192232)

$

$

Not available

47

Husqvarna 183438

Bushing, Front Axle
(Superseded to 532183438)

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 169675

Retainer, Hairpin Cotter
(Superseded to 532169675)

$7.49

$

In Stock, only 4 left!

0

49

Husqvarna 196469

Torque Shaft Assembly, Front

$

$

Currently unavailable

50

Husqvarna 183688

Belt, Drive
(Superseded to 532183688)

$15.99

$

Usually ships in 3-10 days

0

51

Husqvarna 188331

Pinion Assembly, LH

$

$

Not available

52

Husqvarna 175102

Retainer, Drive, RH
(Superseded to 532175102)

$7.49

$

In Stock, only 1 left!

0

53

Husqvarna 195995

Rear Axle Assembly

$

$

Currently unavailable

54

Husqvarna 188330

Pinion Assembly, RH

$

$

Currently unavailable

55

Husqvarna 189074

Decal, Drive Control
(Superseded to 532189074)

$

$

Not available

69

Husqvarna 751068

Bearing, Ball (Wheel)
(Superseded to 532751068)

$8.99

$

In Stock, only 1 left!

0
