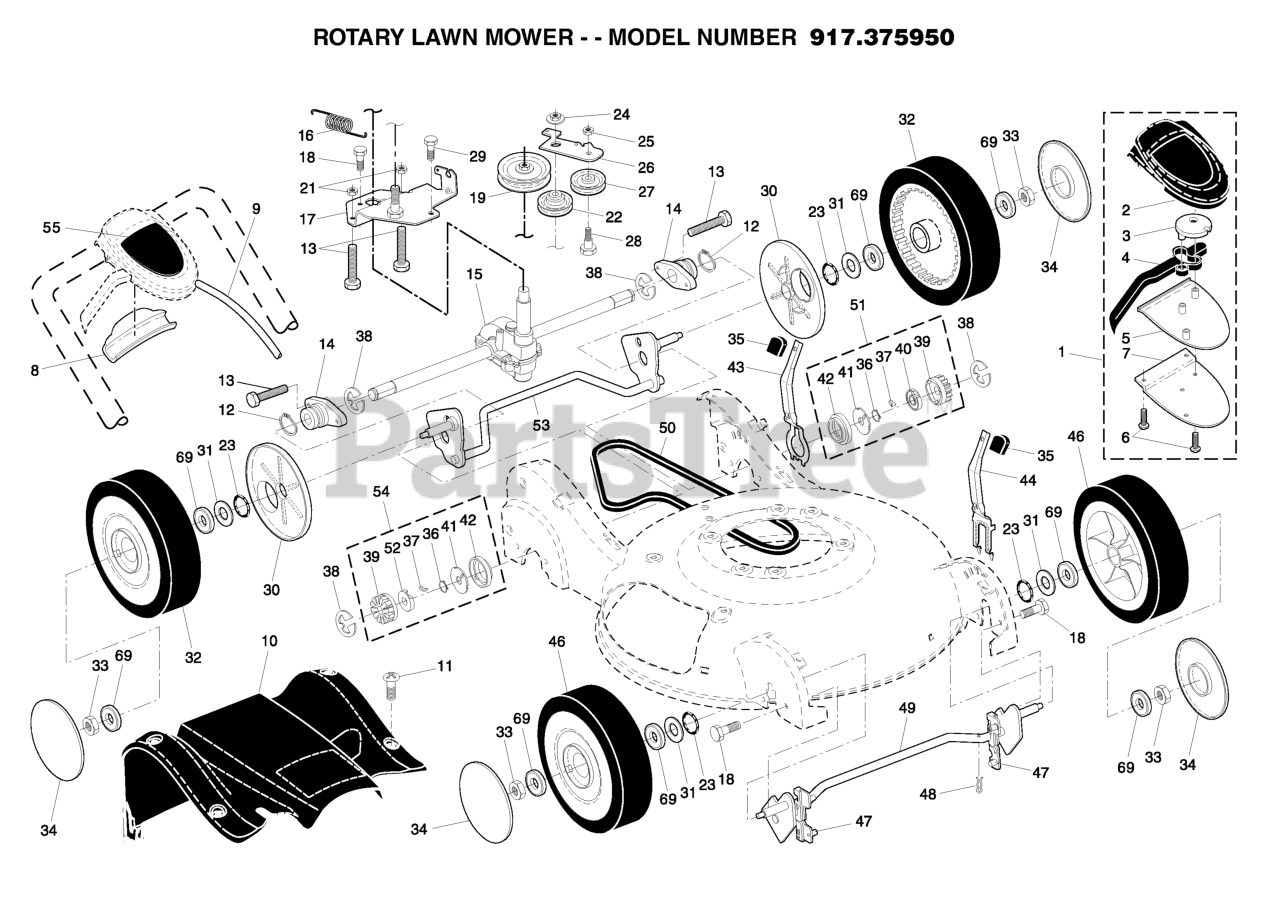

917.375950 - Craftsman Walk-Behind Mower (2005-01) (Sears) REPAIR PARTS 2 Parts Diagram

Walk-Behind Mower

REPAIR PARTS 2 Parts Diagram

  • Title

45

Husqvarna 163409

Screw, Hi-Lo Thread #12 x 5/8
(Superseded to 532163409)

$3.49

$

In Stock, Qty 11

0

48

Husqvarna 169675

Retainer, Hairpin Cotter
(Superseded to 532169675)

$5.99

$

In Stock, only 3 left!

0

31

Husqvarna 88348

Washer, Flat 3/8
(Superseded to 532088348)

$3.49

$

In Stock, Qty 16

0

54

Husqvarna 188330

Pinion Assembly, RH

$

$

Currently unavailable

24

Husqvarna 145212

Nut, Hex, Flangelock

$

$

Not available

46

Husqvarna 192230

Wheel Assembly, Front 9 x 2-1/4
(Superseded to 532192232)

$

$

Not available

38

Husqvarna 12000058

E-Ring 7/16
(Superseded to 812000058)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 83923

Nut, Flangelock 3/8-16

$

$

Not available
