917.375950 - Craftsman Walk-Behind Mower (2005-01) (Sears) REPAIR PARTS Parts Diagram

Walk-Behind Mower

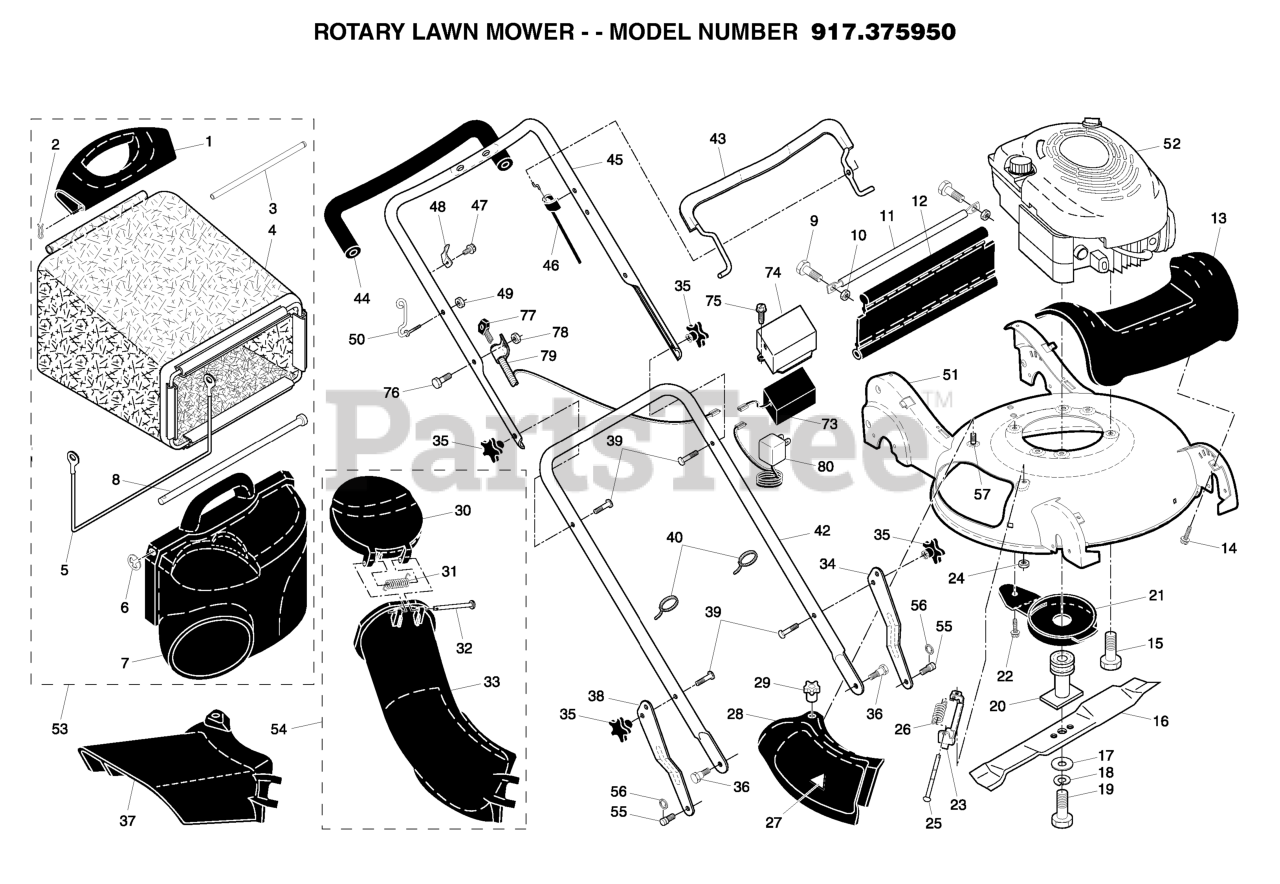

REPAIR PARTS Parts Diagram

  • Title
6

Husqvarna 12000014

ERing
(Superseded to 812000014)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$5.99

$

In Stock, Qty 12

0

56

Husqvarna 12000058

E-Ring 7/16
(Superseded to 812000058)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 850263

Helical Lock Washer 3/8

$

$

Not available

17

Husqvarna 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 17411312

Screw, Hex Washer Head #13 x 3/4
(Superseded to 817411312)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 164322

Cable, Engine Zone Control
(Superseded to 532164322)

$20.99

$

In Stock, Qty 20+

0

47

Husqvarna 750634

Screw, Threaded, Rolled #10-25 x .50
(Superseded to 532750634)

$3.49

$

In Stock, only 1 left!

0

24

Husqvarna 751152

Nut, Hex, Flanged

$

$

Currently unavailable

40

Husqvarna 66426

Wire, Tie

$

$

Not available
