917.384510 (6021 P) - Craftsman Walk-Behind Mower (2010-01) (Sears) Engine Image 1 Parts Diagram

Walk-Behind Mower

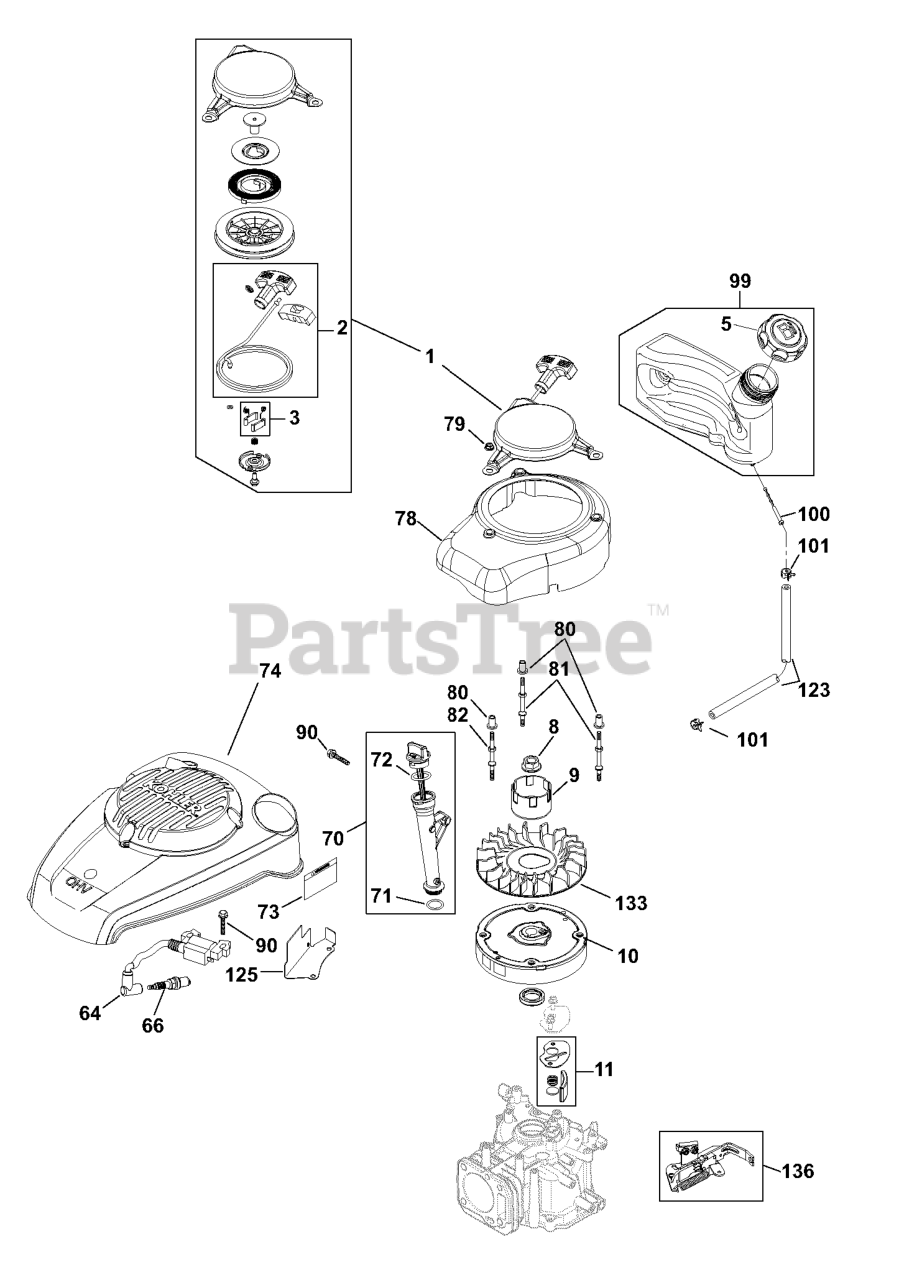

Engine Image 1 Parts Diagram

  • Title

1

Husqvarna 1416501S

Starter, Recoil

Note: (Includes Key Numbers 2 and 3, Recoil Housing, Recoil Bushing, Recoil Guide Plate, Recoil Springs, Recoil Pulley, Recoil Retainer Plate and Recoil Shoulder Screw)

$

$

Currently unavailable

2

Husqvarna 1416001S

Kit, Starter Rope, with Handle

Note: (Includes Coil Starter Rope, Recoil Starter Handle, Recoil Starter Handle Retainer and Recoil Rope Retainer)

$

$

Currently unavailable

3

Husqvarna 1437901S

Kit, Pawl Repair

Note: (Includes Recoil Springs and Recoil Starter Pawls)

$

$

Currently unavailable

5

Husqvarna 1422704S

Cap Assembly, Fuel

$

$

Currently unavailable

8

Husqvarna 1410010S

Nut, Flywheel, with Serrations

$

$

Currently unavailable

9

Husqvarna 1410902S

Cup, Starter Drive

$

$

Currently unavailable

10

Husqvarna 1402502S

Flywheel Assembly, Aluminum

$

$

Currently unavailable

11

Husqvarna 1405001S

Kit, Breather Filter

Note: (Includes Breather Cover Gasket, Breather Cover Spring, Breather Filter and Breather Reed)

$

$

Currently unavailable

25

Husqvarna 1409018S

Lever, Governor

$

$

Currently unavailable

26

Husqvarna 1412622S

Control Assembly, Fixed Speed

$

$

Currently unavailable

29

Husqvarna 1408914S

Spring, Extension (Governor)

$

$

Currently unavailable

36

Husqvarna 1409413S

Base, Air Cleaner

$

$

Currently unavailable

37

Husqvarna 1412305S

Hose, Breather

$

$

Currently unavailable

38

Husqvarna 1408301S

Element, Air Filter

$

$

Currently unavailable

40

Husqvarna 1409609S

Cover, Air Cleaner

$

$

Currently unavailable

44

Husqvarna 1419903S

Kit, Oil Pan

Note: (Includes Key Numbers 45 and 46)

$

$

Currently unavailable

45

Husqvarna 1403205S

Seal, Oil

$

$

Currently unavailable

46

Husqvarna 1404113S

Gasket, Oil Pan

$

$

Currently unavailable

48

Husqvarna 1404116S

Gasket, Carburetor (Heat Shield)

$

$

Currently unavailable

49

Husqvarna 1485321S

Carburetor, 12mm Auto Choke without Shutoff

$

$

Currently unavailable

50

Husqvarna 1401429S

Crankshaft Assembly

$

$

Currently unavailable

51

Husqvarna 1434001S

Key, Woodruff

$

$

Currently unavailable

52

Husqvarna 1401702S

Valve, Intake

$

$

Currently unavailable

53

Husqvarna 1401602S

Valve, Exhaust

$

$

Currently unavailable

54

Husqvarna 1484115S

Gasket, Head

$

$

Currently unavailable

55

Husqvarna 1431802S

Kit, Cylinder Head

Note: (Includes Key Number 93)

$

$

Currently unavailable

56

Husqvarna 1409605S

Cover, Valve

$

$

Currently unavailable

57

Husqvarna 1404101S

Gasket, Valve Cover

$

$

Currently unavailable

60

Husqvarna 1431404S

Guard Assembly, Muffler

$

$

Currently unavailable

61

Husqvarna 1406806S

Muffler Assembly

$

$

Currently unavailable

62

Husqvarna 1406702S

Rod Assembly, Connecting

$

$

Currently unavailable

64

Husqvarna 1458405S

Module, Ignition (Aluminum Flywheel)

$

$

Currently unavailable

66

Husqvarna 1413208S

Plug, Spark (RA10HC)

$

$

Currently unavailable

70

Husqvarna 1412304S

Assembly, Dipstick and Tube

Note: (Includes Key No.s 71 and 72)

$

$

Currently unavailable

71

Husqvarna 1415303S

O-Ring, Oil Fill Tube

$

$

Currently unavailable

72

Husqvarna 1415301S

O-Ring, Dipstick

$

$

Currently unavailable

73

Husqvarna 1411303S

Label, Warning

$

$

Currently unavailable

74

Husqvarna 1409636S

Cover, Engine

$

$

Currently unavailable

78

Husqvarna 1402703S

Housing, Blower

$

$

Currently unavailable

79

Husqvarna M641060S

Nut, Hex Flange (M6)

$

$

Currently unavailable

80

Husqvarna 1411207

Spacer, Compression Limiter

$

$

Currently unavailable

81

Husqvarna 1407212S

Stud, Blower Housing (Fuel Tank)

$

$

Currently unavailable

82

Husqvarna 1407213S

Stud, Blower Housing (Ignition)

$

$

Currently unavailable

83

Husqvarna 1407920S

Linkage, Governor (Auto Choke)

$

$

Currently unavailable

86

Husqvarna 25086166S

Screw, Retangle Head, M6

$

$

Currently unavailable

89

Husqvarna 1409651S

Cover, Air Cleaner Base (Breather Gas)

$

$

Currently unavailable

90

Husqvarna 25086293S

Screw, Hex Flange (M6)

$

$

Currently unavailable

93

Husqvarna 2407206S

Stud, Carburetor (M6)

$

$

Currently unavailable

99

Husqvarna 1406511S

Tank, Fuel (Row)

Note: (Includes Key Number 5)

$

$

Currently unavailable

100

Husqvarna 1405014S

Filter, Fuel (in-nipple)

$

$

Currently unavailable

101

Husqvarna 1423704S

Clamp, Hose

$

$

Currently unavailable

123

Husqvarna 2511161S

Hose, Fuel Low-permeation

$

$

Currently unavailable

125

Guard, Finger

$

$

Not available

126

Seal, Oil

$

$

Not available

128

Retainer, Valve Spring

$

$

Not available

129

Nut, Hex Jam (M6)

$

$

Not available

130

Pivot, Rocker Arm

$

$

Not available

131

Arm, Rocker

$

$

Not available

132

Stud, Rocker Arm

$

$

Not available

133

Fan, Flywheel (Plastic)

$

$

Not available

136

Husqvarna 1421907S

Brake Assembly, Carburetor Side

Note: (Includes Brake Lever, Brake Spring, Flange Nuts, Brake Pad, Ground To Kill Lead, Screw, Kill Switch, Brake Bracket, Brake Lever Washer and Brake Lever Rivet)

$

$

Currently unavailable

153

Husqvarna 1423705S

Clamp, Hose

$

$

Currently unavailable

154

Camshaft Assembly

$

$

Not available
