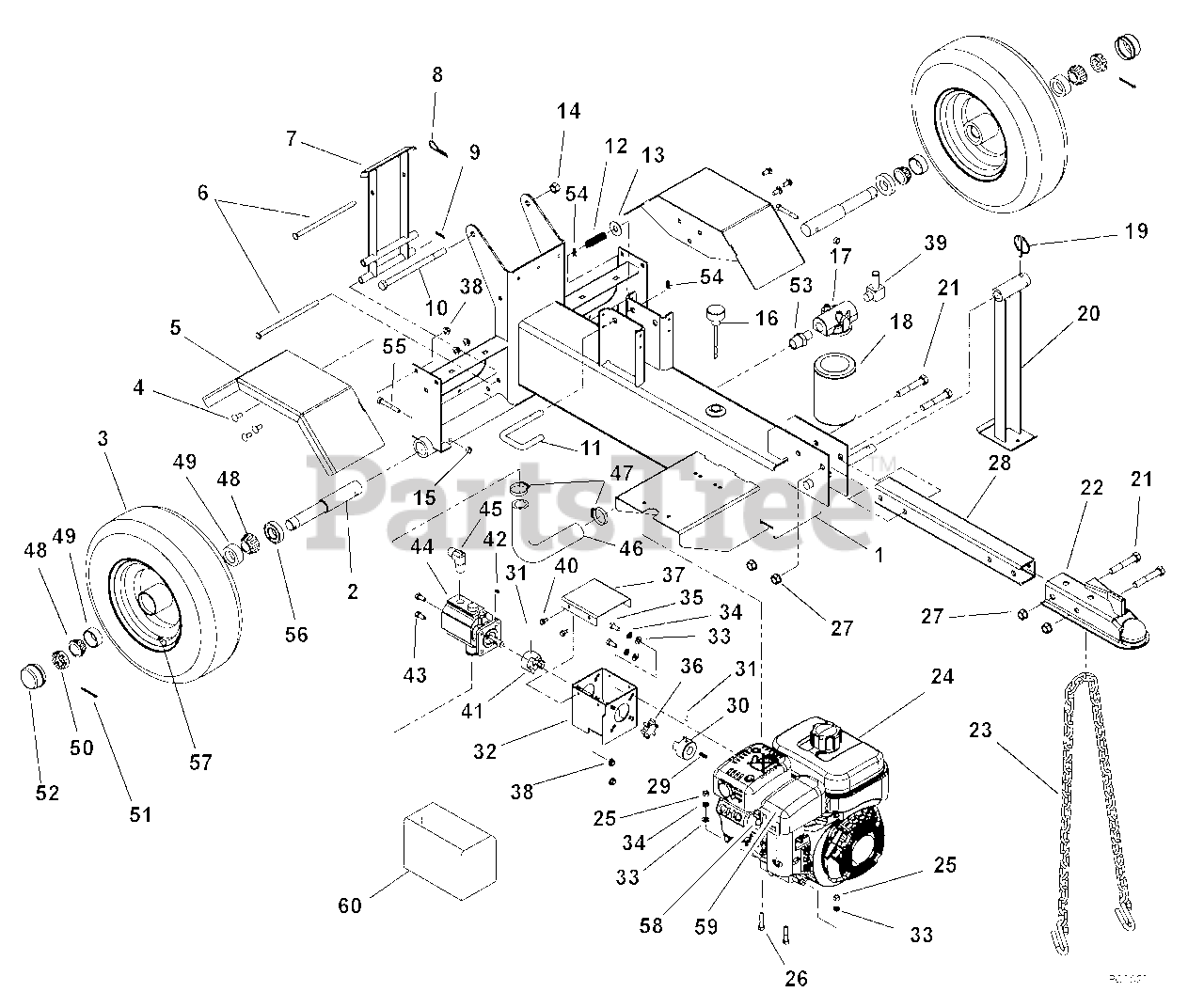

917001 - Ariens 27-Ton Log Splitter, 170cc Subaru (SN: 000101 - 000999) Frame, Engine And Pump Parts Diagram

27-Ton Log Splitter, 170cc Subaru

Frame, Engine And Pump Parts Diagram

  • Title

1

Ariens 51700800

CHASSIS,SPLITTER W/SAFTY DECAL
(Superseded to 51703600)

$475.99

$

Usually ships in 4-12 days

0

2

Ariens 03857000

AXLE, SPLITTER

$86.99

$

Usually ships in 4-12 days

0

3

Ariens 07100806

WHEEL, SPLITTER
(Superseded to 07101019)

Note: (Includes Items 48, 49, 56 and 57)

$113.99

$

Usually ships in 4-12 days

0

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03857159

WLDMT, FENDER

$109.99

$

Usually ships in 4-12 days

0

6

Ariens 03857251

PIN, LOCK
(Superseded to 03857200)

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 51700400

REAR STAND W/DECALS (ARIENS)

$96.99

$

Usually ships in 4-12 days

0

8

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, only 4 left!

0

9

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 1 left!

0

11

Ariens 03857551

LOCK, BEAM

$

$

Not available

12

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 17

0

14

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00463000

BREATHER, DIPSTICK

$51.99

$

In Stock, only 2 left!

0

17

Ariens 61700400

ASM, FILTER HEAD

$71.99

$

Usually ships in 4-12 days

0

18

Ariens 09414200

FILTER ELEMENT, ZINGA AE-25
(Superseded to 03931900)

$26.99

$

In Stock, Qty 14

0

19

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 9

0

20

Ariens 03857451

WMT,JACK

$

$

Not available

21

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

22

Ariens 03846600

HITCH, BALL-2"
(Superseded to 51706100)

$271.99

$

Usually ships in 4-12 days

0

23

Ariens 03846700

CHAIN, SAFETY

$35.99

$

Usually ships in 4-12 days

0

24

Ariens 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (CARB)

$

$

Not available

25

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

26

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

27

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

28

Ariens 51700500

HITCH BAR W/DECALS

$131.99

$

Usually ships in 4-12 days

0

29

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

30

Ariens 03856100

HUB,DRIVE COUPLING 3/4"
(Superseded to 04586700)

$26.99

$

In Stock, Qty 5

0

31

Ariens 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.49

$

In Stock, only 3 left!

0

32

Ariens 03858351

WLDMT, PUMP MOUNT BRKT

$61.99

$

In Stock, only 1 left!

0

33

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

34

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

35

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 03856200

SPIDER,URETHANE
(Superseded to 04586500)

$5.99

$

In Stock, Qty 7

0

37

Ariens 51700600

COVER W/DECALS

$

$

Not available

38

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 07001602

FTG,HYD 4501-10-12-FG

$17.99

$

Usually ships in 4-12 days

0

40

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 03856300

HUB,DRIVE COUPLING 1/2"
(Superseded to 04586600)

$25.99

$

In Stock, only 1 left!

0

42

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.49

$

In Stock, Qty 5

0

43

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

44

Ariens 03846400

PUMP, SPLITTER-11 GPM

$

$

Not available

45

Ariens 07001536

FTG,HYD 2501-8-8

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 03859700

HOSE,HYD SUCTION 16G4H X 13.5

$55.99

$

Usually ships in 4-12 days

0

47

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 9

0

49

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 13

0

50

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

51

Ariens 06713800

@PIN-CTR .15X1.50 YWZC

$3.99

$

In Stock, Qty 5

0

52

Ariens 20655400

CAP,DUST

$9.49

$

In Stock, Qty 20+

0

53

Ariens 07001601

FTG,HYD 5404-12-12

$13.99

$

Usually ships in 4-12 days

0

54

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

55

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 5

0

56

Ariens 00092498

SEAL

$

$

Not available

57

Ariens 07520000

VALVE STEM ASS'Y

$2.49

$

In Stock, Qty 7

0

58

Ariens 20020001

SPARK PLUG,SP-170

$3.49

$

In Stock, Qty 20+

0

59

Ariens 20020002

FILTER,SP-170 SPONGE/ROBIN
(Superseded to 21551200)

$38.99

$

In Stock, Qty 12

0

60

Ariens 00069100

OIL, 2.5 GAL HYD ISO GRADE 32

$159.99

$

Usually ships in 4-12 days

0

61

Ariens 51701600

KIT,4.5" HYD CYL SEAL-SPLITTER

Note: (Not Shown)

$203.99

$

Usually ships in 4-12 days

0
