917001 - Ariens 27-Ton Log Splitter, 170cc Subaru (SN: 019000 & Above) Beam And Hydraulic Cylinder Parts Diagram

27-Ton Log Splitter, 170cc Subaru

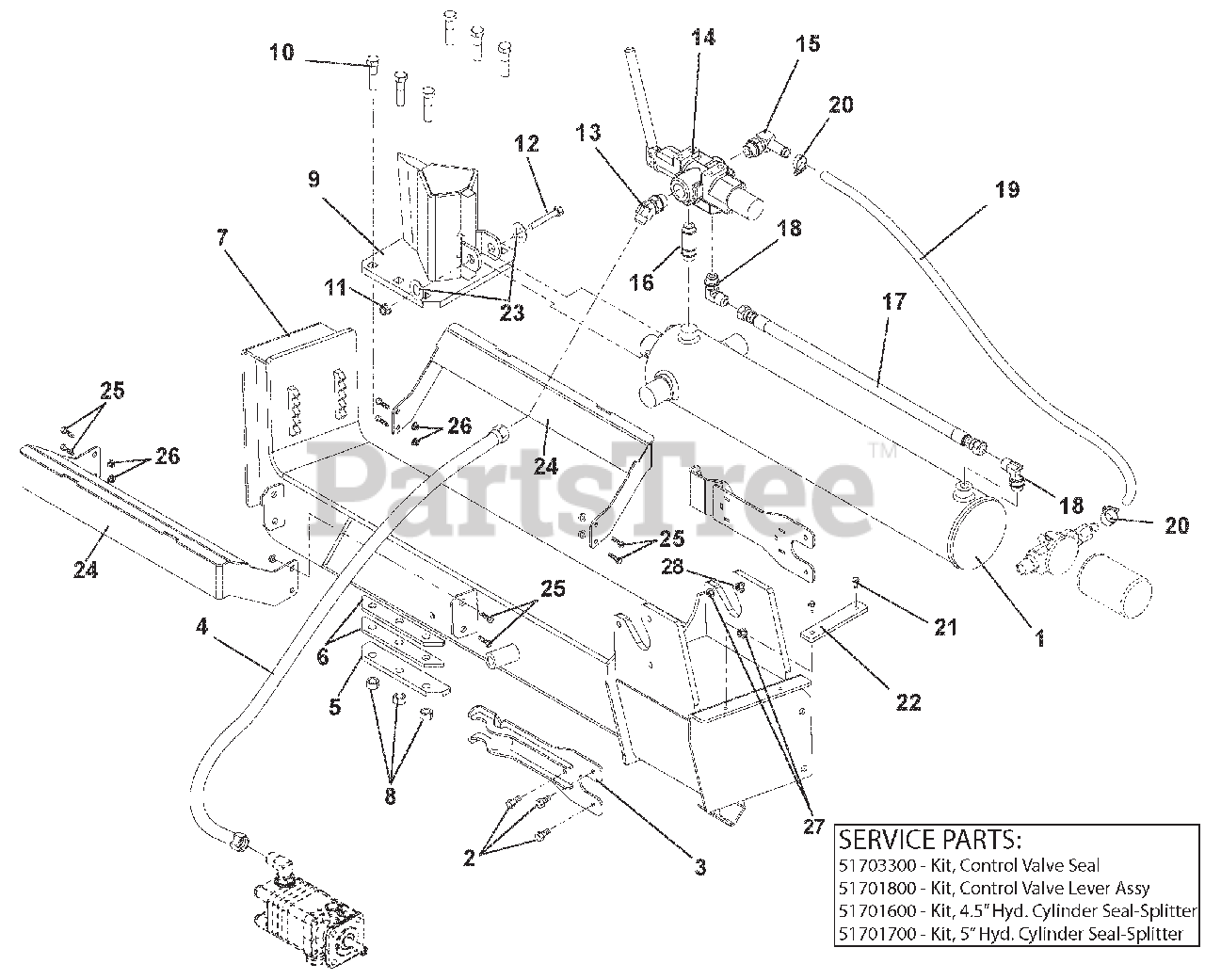

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Ariens 51700200

CYLINDER,4.5 W/DECALS

Note: (917001)

$1018.99

$

Usually ships in 4-12 days

0

1

Ariens 51701600

KIT,4.5" HYD CYL SEAL-SPLITTER

Note: (917001) SERVICE PART

$203.99

$

Usually ships in 4-12 days

0

1

Ariens 51700700

CYLINDER, 5' W/DECALS

Note: (917002)

$1086.99

$

Usually ships in 4-12 days

0

1

Ariens 51701700

KIT, 5" HYD CYL SEAL-SPLITTER

Note: (917002) SERVICE PART

$135.99

$

Usually ships in 4-12 days

0

2

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

3

Ariens 04861459

WLDMT, PLATE - STRIPPER

$142.99

$

In Stock, Qty 5

0

4

Ariens 07001539

HOSE, ASM - 46"

$141.99

$

Usually ships in 4-12 days

0

5

Ariens 04353251

RETAINER,WEDGE

$24.99

$

In Stock, Qty 5

0

6

Ariens 03967151

SPACER, WEDGE

$22.99

$

In Stock, only 3 left!

0

7

Ariens 04740951

WLDMT, BEAM - 27/34T SPLITTER

$568.99

$

Usually ships in 4-12 days

0

8

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 04824851

WMT, WEDGE - SPLITTER

$681.99

$

Usually ships in 4-12 days

0

10

Ariens 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 07001537

FTG,HYD 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

14

Ariens 03846300

VALVE CONTROL-SPLITTER

$297.99

$

Usually ships in 4-12 days

0

14

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PART

$86.99

$

Usually ships in 4-12 days

0

14

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$102.99

$

Usually ships in 4-12 days

0

15

Ariens 07001538

FTG,HYD 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 07001534

FTG,HYD 6403-NWO-8-8-L

$51.99

$

In Stock, only 3 left!

0

17

Ariens 07001540

HOSE, HYD - 22"

$68.99

$

Usually ships in 4-12 days

0

18

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

19

Ariens 03859600

HOSE,HYD RETURN 10LOLA X 53"

$78.99

$

Usually ships in 4-12 days

0

20

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

Usually ships in 4-12 days

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (917001)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03835751

SPACER, CYLINDER

Note: (917001)

$11.99

$

Usually ships in 4-12 days

0

23

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 17

0

24

Ariens 04590851

WLDMT, CRADLE, LOG SPLITTER

$168.99

$

In Stock, only 2 left!

0

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07604800

NUT-WELD .31-18

$

$

Not available

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
