917002 - Ariens 34-Ton Log Splitter, 210cc Subaru (SN: 000101 - 001999) Work Table Kit 71701200 Parts Diagram

34-Ton Log Splitter, 210cc Subaru

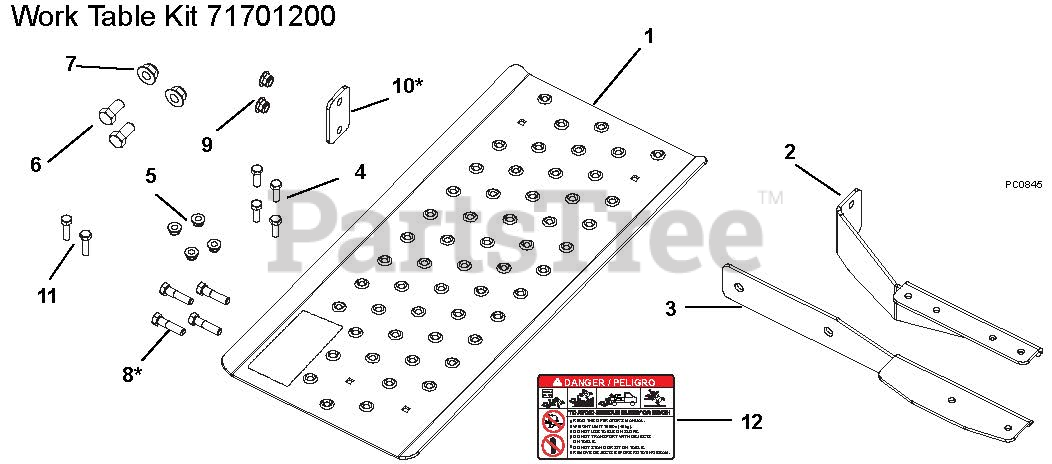

Work Table Kit 71701200 Parts Diagram

  • Title

1

Ariens 03880159

BRKT, LOG SPLITTER WORK TABLE

$

$

Not available

2

Ariens 03880251

BRKT, REAR TABLE MOUNT

$61.99

$

Usually ships in 4-12 days

0

3

Ariens 03880351

BRKT, FRONT TABLE MOUNT

$29.99

$

Usually ships in 4-12 days

0

4

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$3.49

$

In Stock, only 2 left!

0

5

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$3.49

$

In Stock, only 2 left!

0

7

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: For use with installation of Log Cradle Kit (71701600).

$2.99

$

In Stock, Qty 10

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 03886751

PLATE, WORK TABLE SPACER

Note: For use with installation of Log Cradle Kit (71701600).

$7.49

$

Usually ships in 4-12 days

0

11

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 08000406

DECAL,WORK TABLE

$

$

Not available
