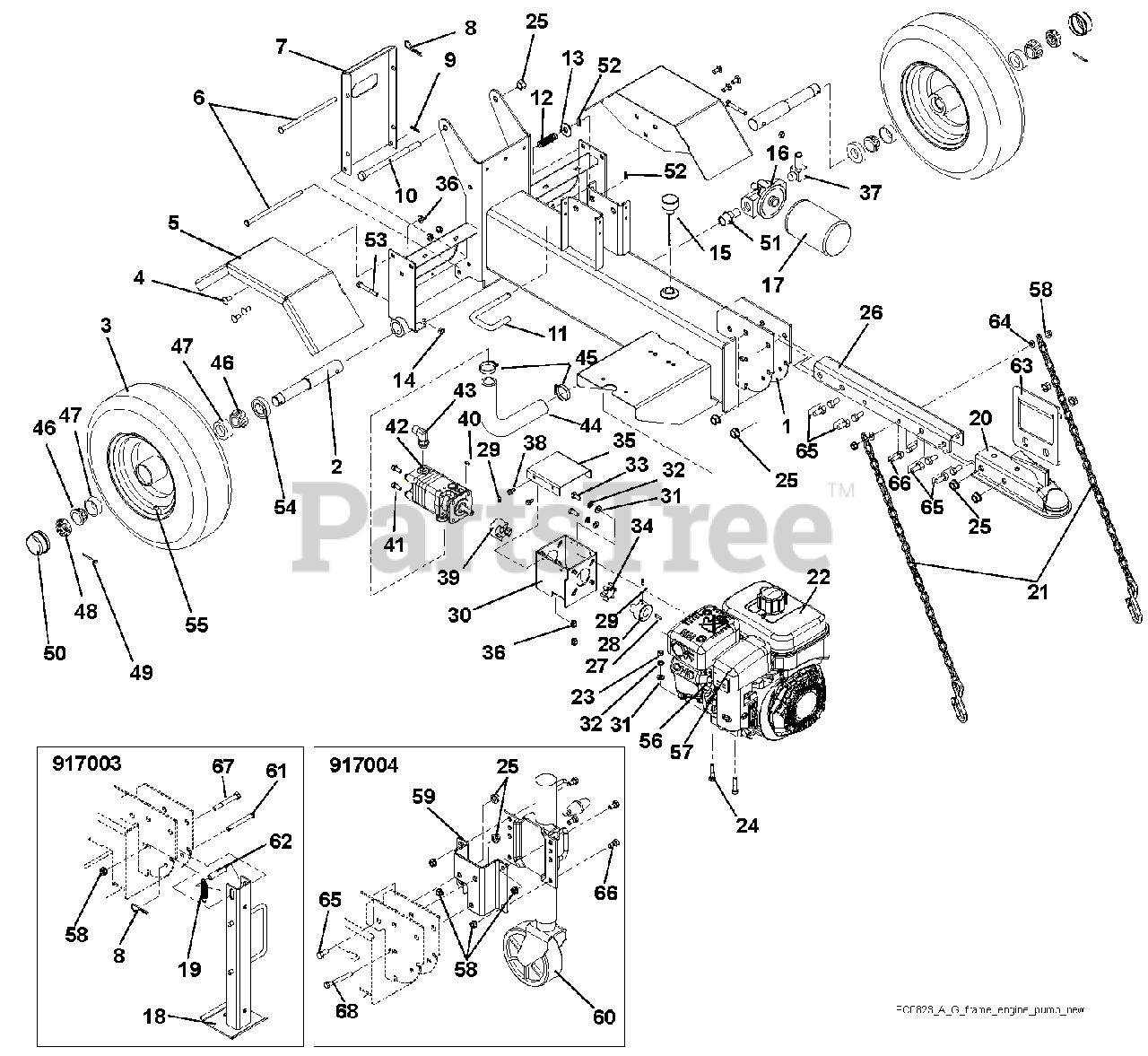

917003 - Gravely 27-Ton Log Splitter, Subaru (SN: 011000 & Above) Frame Engine And Pump Parts Diagram

27-Ton Log Splitter, Subaru

Frame Engine And Pump Parts Diagram

  • Title

1

Gravely 51701000

CHASSIS,SPLITTER W/SFTY DECAL
(Superseded to 51703700)

$

$

Not available

2

Gravely 03857000

AXLE, SPLITTER

$88.99

$

Usually ships in 4-12 days

0

3

Gravely 07100806

WHEEL, SPLITTER
(Superseded to 07101019)

Note: (Includes Items 46, 47, 54 and 55)

$125.99

$

In Stock, only 1 left!

0

4

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 03857153

WLDMT, FENDER

$108.99

$

Usually ships in 4-12 days

0

6

Gravely 03857200

PIN, LOCK

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 51701500

REAR STAND W/DECALS (GRAVELY)

$

$

Not available

8

Gravely 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$6.99

$

In Stock, Qty 9

0

9

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

10

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$8.49

$

In Stock, Qty 16

0

11

Gravely 03857500

LOCK, BEAM

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00463000

BREATHER, DIPSTICK

$

$

Not available

16

Gravely 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

17

Gravely 03931900

FILTER,OIL-W/BYPASS

$30.99

$

In Stock, Qty 20+

0

18

Gravely 03938151

WLDMT, JACK STAND

Note: (917003)

$174.99

$

Usually ships in 4-12 days

0

19

Gravely 08300435

SPRG, TENSION .063X.625X2.50

Note: (917003)

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 03846600

HITCH, BALL-2"
(Superseded to 51706100)

$277.99

$

Usually ships in 4-12 days

0

21

Gravely 04649800

CHAIN, SAFETY 3/16"-30LINK

$41.99

$

Usually ships in 4-12 days

0

22

Gravely 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (917003)

$

$

Not available

Gravely 08200517

ENGINE,SUBARU EX21 (CARB)

Note: (917004)

$

$

Not available

23

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

24

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

25

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

Note: (917003)

$1.49

$

In Stock, Qty 20+

0

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

Note: (917004)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 51702300

BAR, HITCH - WITH DECALS

$

$

Not available

27

Gravely 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 2 left!

0

28

Gravely 03856100

HUB,DRIVE COUPLING 3/4"
(Superseded to 04586700)

$27.99

$

In Stock, only 4 left!

0

29

Gravely 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.99

$

In Stock, only 2 left!

0

30

Gravely 03858351

WLDMT, PUMP MOUNT BRKT

$63.99

$

In Stock, only 1 left!

0

31

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

33

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

34

Gravely 03856200

SPIDER,URETHANE
(Superseded to 04586500)

$6.49

$

In Stock, Qty 10

0

35

Gravely 51700600

COVER W/DECALS

$

$

Not available

36

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07001602

FTG,HYD 4501-10-12-FG

$18.99

$

Usually ships in 4-12 days

0

38

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 03856300

HUB,DRIVE COUPLING 1/2"
(Superseded to 04586600)

$25.99

$

In Stock, only 4 left!

0

40

Gravely 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.99

$

In Stock, Qty 10

0

41

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 03926900

PUMP,SPLITTER-11 GPM

Note: (917003)

$747.99

$

Usually ships in 4-12 days

0

Gravely 03874000

PUMP,SPLITTER-13 GPM

Note: (917004)

$772.99

$

Usually ships in 4-12 days

0

43

Gravely 07001535

FTG,HYD 6801-8-8

$29.99

$

Usually ships in 4-12 days

0

44

Gravely 03859700

HOSE,HYD SUCTION 16G4H X 13.5

$57.99

$

Usually ships in 4-12 days

0

45

Gravely 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.49

$

Usually ships in 4-12 days

0

46

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

47

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 18

0

48

Gravely 06513100

NUT-SL 1.0-14

$6.49

$

Usually ships in 4-12 days

0

49

Gravely 06713800

PIN-CTR .15X1.50 YWZC

$3.99

$

Usually ships in 4-12 days

0

50

Gravely M135582

CAP, DUST
(Superseded to 05117700)

$6.49

$

In Stock, Qty 13

0

51

Gravely 07001601

FTG,HYD 5404-12-12

$14.99

$

Usually ships in 4-12 days

0

52

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

53

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

54

Gravely 00092498

SEAL

$

$

Not available

55

Gravely 07520000

VALVE STEM ASS'Y

$2.99

$

In Stock, only 1 left!

0

56

Gravely 20020001

SPARK PLUG,SP-170

$14.99

$

In Stock, Qty 5

0

57

Gravely 20020002

FILTER,SP-170 SPONGE/ROBIN
(Superseded to 21551200)

$

$

Not available

58

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (917003)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (917004)

$1.49

$

In Stock, Qty 20+

0

59

Gravely 03938253

BRACKET, MOUNTING

Note: (917004)

$42.99

$

Usually ships in 4-12 days

0

60

Gravely 03938300

STAND, JACK-W/WHEEL

Note: (917004)

$

$

Not available

61

Gravely 02747500

PIN-CLEV .371X3.25 YWZC

Note: (917003)

$6.99

$

In Stock, Qty 12

0

62

Gravely 05533500

SPCR, WHEEL .385X.500X2.00

Note: (917003)

$9.99

$

In Stock, Qty 20+

0

63

Gravely 04378651

HANDLE, SPLITTER DRAW BAR

$17.99

$

Usually ships in 4-12 days

0

64

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

65

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: (917003)

$2.99

$

In Stock, only 2 left!

0

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: (917004)

$2.99

$

In Stock, only 2 left!

0

66

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (917003)

$1.99

$

In Stock, Qty 20+

0

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (917004)

$1.99

$

In Stock, Qty 20+

0

67

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: (917003)

$2.99

$

In Stock, Qty 11

0

68

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

Note: (917004)

$4.99

$

In Stock, Qty 20+

0
