917004 - Gravely 34-Ton Log Splitter, Subaru (SN: 000101 - 006999) Beam And Hydraulic Cylinder Parts Diagram

34-Ton Log Splitter, Subaru

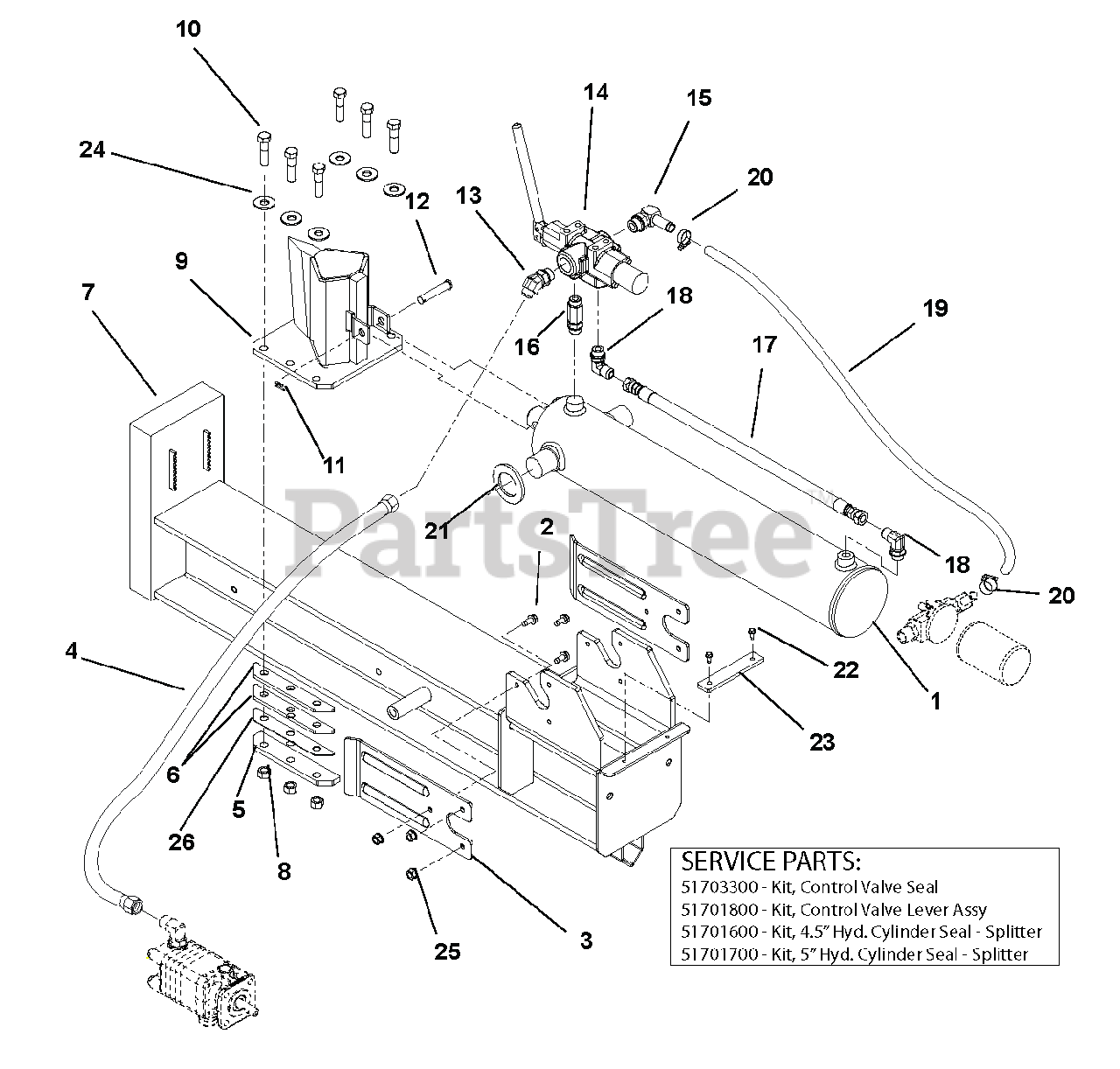

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Gravely 51700200

CYLINDER,4.5 W/DECALS

Note: (917003)

$1058.99

$

Usually ships in 4-12 days

0

1

Gravely 51701600

KIT,4.5" HYD CYL SEAL-SPLITTER

Note: (917003) SERVICE PART

$208.99

$

Usually ships in 4-12 days

0

1

Gravely 51700700

CYLINDER, 5' W/DECALS

Note: (917004)

$1130.99

$

Usually ships in 4-12 days

0

1

Gravely 51701700

KIT, 5" HYD CYL SEAL-SPLITTER

Note: (917004) SERVICE PART

$138.99

$

Usually ships in 4-12 days

0

2

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03857353

PLATE, STRIPPER
(Superseded to 04861453)

$237.99

$

In Stock, only 1 left!

0

4

Gravely 07001539

HOSE, ASM - 46"

$146.99

$

Usually ships in 4-12 days

0

5

Gravely 03967251

RETAINER, WEDGE
(Superseded to 04353251)

$27.99

$

In Stock, only 2 left!

0

6

Gravely 03967151

SPACER, WEDGE

$25.99

$

In Stock, only 1 left!

0

7

Gravely 03835851

WLDMT, SPLITTER BEAM

$1302.99

$

Usually ships in 4-12 days

0

8

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

9

Gravely 03967051

WEDGE, LOG SPLITTER
(Superseded to 51701100)

$527.99

$

Usually ships in 4-12 days

0

10

Gravely 05970700

BLT-HEX .500-13X2.00 GR8 YWZC
(Superseded to 05901940)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

12

Gravely 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 07001537

FTG,HYD 6802-8-10

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 03846300

VALVE CONTROL-SPLITTER

$303.99

$

In Stock, only 1 left!

0

14

Gravely 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PART

$88.99

$

Usually ships in 4-12 days

0

14

Gravely 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$104.99

$

Usually ships in 4-12 days

0

15

Gravely 07001538

FTG,HYD 4601-10-10

$41.99

$

Usually ships in 4-12 days

0

16

Gravely 07001534

FTG,HYD 6403-NWO-8-8-L

$52.99

$

In Stock, Qty 6

0

17

Gravely 07001540

HOSE, HYD - 22"

$70.99

$

Usually ships in 4-12 days

0

18

Gravely 07001535

FTG,HYD 6801-8-8

$29.99

$

Usually ships in 4-12 days

0

19

Gravely 03859600

HOSE,HYD RETURN 10LOLA X 53"

$82.99

$

Usually ships in 4-12 days

0

20

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06400905

WSHR-FL-STL 1.57X2.25X.25 YWZC

Note: (917003)

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (917003)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 03835751

SPACER, CYLINDER

Note: (917003)

$12.99

$

Usually ships in 4-12 days

0

24

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 04284651

SHIM,SPLITTER WEDGE

$39.99

$

Usually ships in 4-12 days

0
