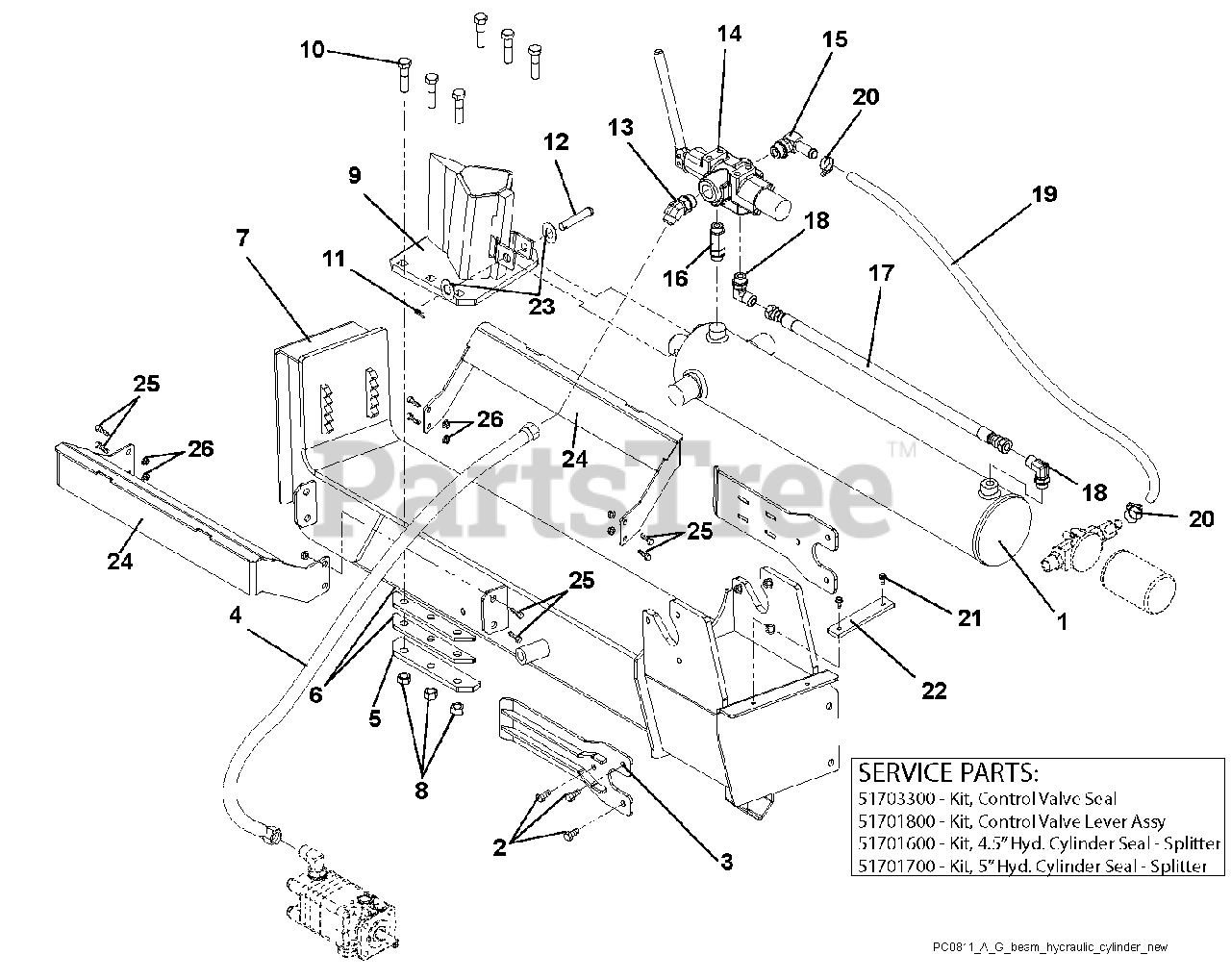

917004 - Gravely 34-Ton Log Splitter, Subaru (SN: 011000 & Above) Beam And Hydraulic Cylinder Parts Diagram

34-Ton Log Splitter, Subaru

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Gravely 51700200

Cylinder, 4.5-Inch With Decals (917003)

Note: (917003)

$1018.99

$

Usually ships in 4-12 days

0

1

Gravely 51701600

Kit, 4.5" Hydraulic Cylinder Seal - Splitter

Note: (917003) SERVICE PART

$203.99

$

Usually ships in 4-12 days

0

1

Gravely 51700700

Cylinder, 5-In. With Decals (917004)

Note: (917004)

$1086.99

$

Usually ships in 4-12 days

0

1

Gravely 51701700

Kit, 5" Hydraulic Cylinder Seal - Splitter

Note: (917004) SERVICE PART

$135.99

$

Usually ships in 4-12 days

0

2

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

3

Gravely 04579753

Plate, Stripper
(Superseded to 04861453)

$232.99

$

In Stock, only 1 left!

0

4

Gravely 07001539

Hose Assembly, 8M3K-8FJX-8FJX-46

$141.99

$

Usually ships in 4-12 days

0

5

Gravely 04353251

Retainer, Wedge

$24.99

$

In Stock, Qty 5

0

6

Gravely 03967151

Spacer, Wedge

$22.99

$

In Stock, only 3 left!

0

7

Gravely 04579551

Beam, Splitter
(Superseded to 04740951)

$568.99

$

Usually ships in 4-12 days

0

8

Gravely 06530008

Nut, Locking Center Flange .50-13
(Superseded to 06500902)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 04541251

Weldment, Splitter Wedge
(Superseded to 04824851)

$681.99

$

Usually ships in 4-12 days

0

10

Gravely 06200208

Bolt, Round Head Square Neck .50-13 x 2.00 Grade 8
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

12

Gravely 06810700

Pin, Clevis .494 x 2.50, Bright Zinc Plating

$3.99

$

In Stock, only 4 left!

0

13

Gravely 07001537

Fitting, Hydraulic 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 03846300

Valve, Splitter Control

$297.99

$

Usually ships in 4-12 days

0

14

Gravely 51703300

Kit, Control Valve Seal

Note: SERVICE PART

$86.99

$

Usually ships in 4-12 days

0

14

Gravely 51701800

Kit, Control Valve Lever Assy

Note: SERVICE PART

$102.99

$

Usually ships in 4-12 days

0

15

Gravely 07001538

Fitting, Hydraulic 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 07001534

Fitting, Hydraulic 6403-NWO-8-8-L

$51.99

$

In Stock, only 2 left!

0

17

Gravely 07001540

Hose Assembly, 8M3K-8FJX-8FJX-22

$68.99

$

Usually ships in 4-12 days

0

18

Gravely 07001535

Fitting, Hydraulic 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 03859600

Hose, Hydraulic Return 10LOLA x 53-In.

$78.99

$

Usually ships in 4-12 days

0

20

Gravely 06923500

Clamp, .88 Diameter

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50 (917003)
(Superseded to 07400122)

Note: (917003)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03835751

Spacer, Cylinder (917003)

Note: (917003)

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

24

Gravely 04590851

Cradle, Log

$168.99

$

In Stock, only 2 left!

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06542000

Nut, Top Flange Locking .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0
