917011 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 000101 - 009999) Beam And Hydraulic Cylinder Parts Diagram

22-Ton Log Splitter, 174cc Subaru

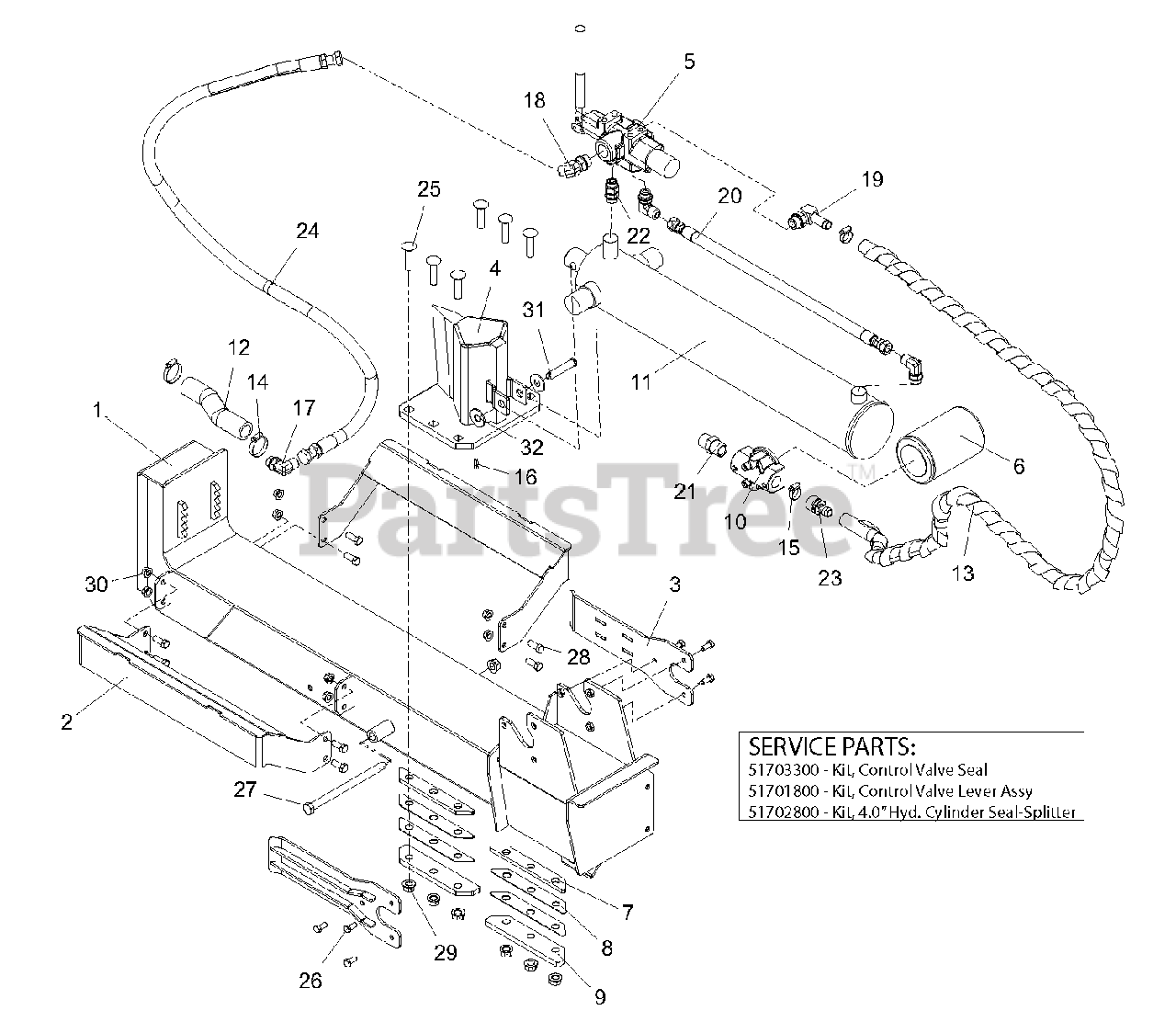

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Ariens 04578351

WLDMT, BEAM - 22 TON SPLITTER
(Superseded to 51703900)

$814.99

$

Usually ships in 4-12 days

0

2

Ariens 04590851

WLDMT, CRADLE, LOG SPLITTER

$168.99

$

In Stock, only 2 left!

0

3

Ariens 04579759

PLATE, STRIPPER
(Superseded to 04861459)

$142.99

$

In Stock, Qty 5

0

4

Ariens 04541251

WLDMT, SPLITTER WEDGE
(Superseded to 04824851)

$681.99

$

Usually ships in 4-12 days

0

5

Ariens 03846300

VALVE CONTROL-SPLITTER

$297.99

$

Usually ships in 4-12 days

0

5

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PART

$86.99

$

Usually ships in 4-12 days

0

5

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$102.99

$

Usually ships in 4-12 days

0

6

Ariens 03931900

FILTER,OIL-W/BYPASS

$26.99

$

In Stock, Qty 12

0

7

Ariens 03967151

SPACER, WEDGE

$22.99

$

In Stock, only 3 left!

0

8

Ariens 04284651

SHIM,SPLITTER WEDGE

$38.99

$

In Stock, only 1 left!

0

9

Ariens 04353251

RETAINER,WEDGE

$24.99

$

In Stock, Qty 5

0

10

Ariens 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

11

Ariens 04569800

CYLINDER, SPLITTER 4.0
(Superseded to 51702600)

$882.99

$

Usually ships in 4-12 days

0

11

Ariens 51702800

KIT,4.0" HYD CYL SEAL-SPLITTER

Note: SERVICE PART

$

$

Not available

12

Ariens 04594300

HOSE, HYD - SUCTION 7.375"

$29.99

$

Usually ships in 4-12 days

0

13

Ariens 04594400

HOSE, HYD-RET 801-10 WP 74"

$110.99

$

Usually ships in 4-12 days

0

14

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

17

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

18

Ariens 07001537

FTG,HYD 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

19

Ariens 07001538

FTG,HYD 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

20

Ariens 07001540

HOSE, HYD - 22"

$68.99

$

Usually ships in 4-12 days

0

21

Ariens 07001601

FTG,HYD 5404-12-12

$13.99

$

Usually ships in 4-12 days

0

22

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$11.99

$

In Stock, only 3 left!

0

23

Ariens 07001715

FTG,HYD STRAIGHT 10-12

$13.99

$

Usually ships in 4-12 days

0

24

Ariens 07001717

HOSE, HYD - 58"

$86.99

$

Usually ships in 4-12 days

0

25

Ariens 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

27

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

28

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.99

$

In Stock, Qty 20+

0

30

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06822300

PIN-CLEV .50X2.50X2.27 YWZC
(Superseded to 06810700)

$3.99

$

In Stock, only 4 left!

0

32

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0
