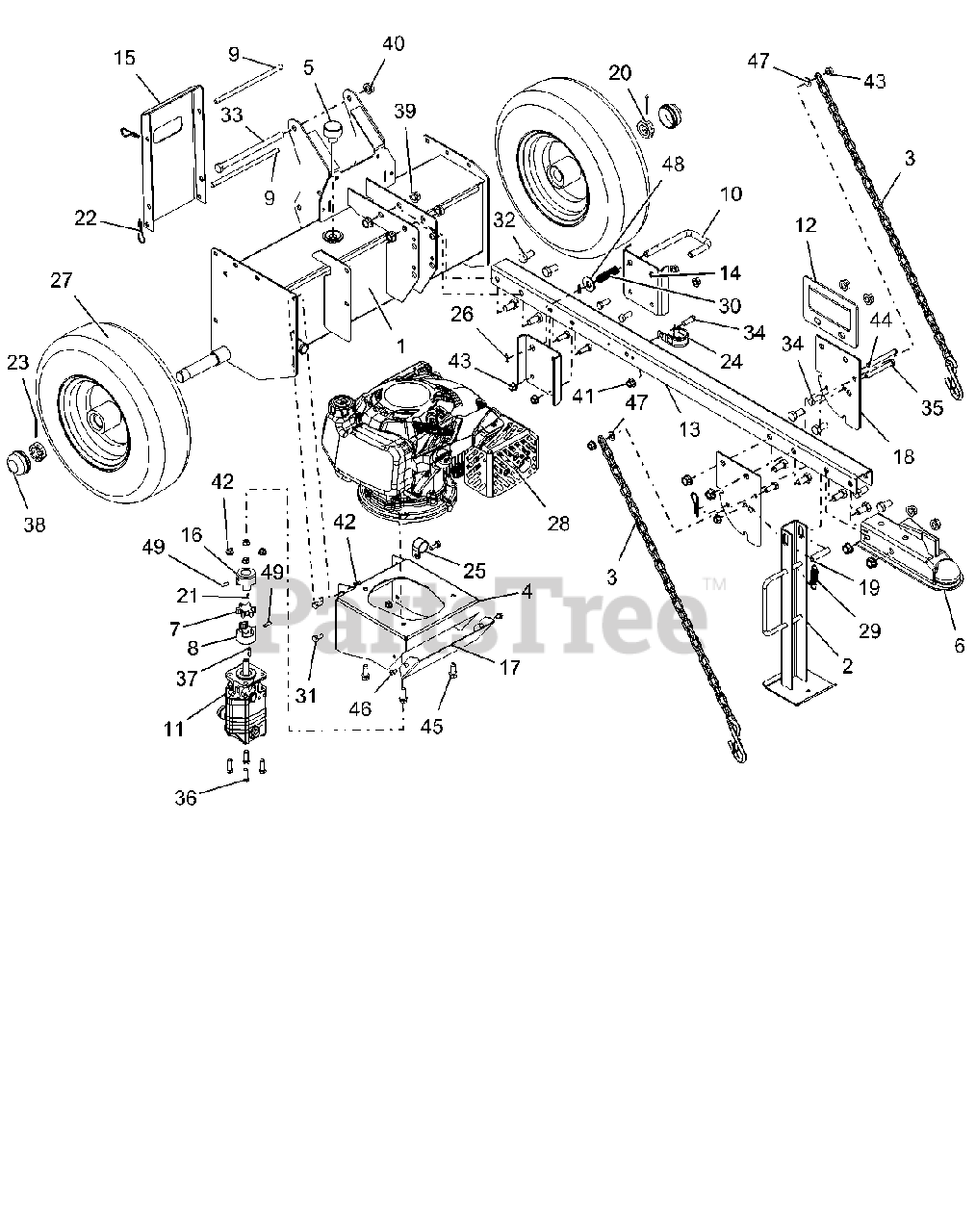

917011 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 015000 & Above) Frame Engine And Pump Parts Diagram

22-Ton Log Splitter, 174cc Subaru

Frame Engine And Pump Parts Diagram

  • Title
1

Ariens 04577059

WMT,SMALL CHASSIS
(Superseded to 51704900)

$

$

Not available

2

Ariens 03938151

WLDMT, JACK STAND

$147.52

$

Usually ships in 4-12 days

0

3

Ariens 04649800

CHAIN, SAFETY 3/16"-30LINK

$39.07

$

Usually ships in 4-12 days

0

4

Ariens 04580159

WLDMT,ENGINE/PUMP

$147.52

$

Usually ships in 4-12 days

0

5

Ariens 00463000

BREATHER, DIPSTICK

$48.31

$

In Stock, only 2 left!

0

6

Ariens 03846600

HITCH, BALL-2"
(Superseded to 51706100)

$253.97

$

Usually ships in 4-12 days

0

7

Ariens 04586500

SPIDER - URETHANE

$5.53

$

In Stock, only 1 left!

0

8

Ariens 04586600

COUPLER - DRIVE 1/2"

$24.54

$

Usually ships in 4-12 days

0

9

Ariens 04852351

PIN, .373 X 7.30 X 2X.109 THRU

$24.54

$

Usually ships in 4-12 days

0

10

Ariens 03857500

LOCK, BEAM

$12.24

$

Usually ships in 4-12 days

0

11

Ariens 03926900

PUMP,SPLITTER-11 GPM

$303.57

$

Usually ships in 4-12 days

0

12

Ariens 04378651

HANDLE, SPLITTER DRAW BAR

$15.93

$

Usually ships in 4-12 days

0

13

Ariens 04577351

BAR, DRAW
(Superseded to 51702700)

$121.87

$

Usually ships in 4-12 days

0

14

Ariens 04577651

GUIDE, LOCK DOWN

$10.62

$

Usually ships in 4-12 days

0

15

Ariens 04579659

SUPPORT, REAR LEG
(Superseded to 51700400)

$94.19

$

Usually ships in 4-12 days

0

16

Ariens 04586800

COUPLER - DRIVE, 7/8"

$25.77

$

Usually ships in 4-12 days

0

17

Ariens 04587859

COVER, COUPLING

$24.54

$

Usually ships in 4-12 days

0

18

Ariens 04635751

MOUNT, SPRING LOADED JACK

$27.95

$

Usually ships in 4-12 days

0

19

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$5.53

$

In Stock, Qty 20+

0

20

Ariens 06513100

NUT-SL 1.0-14

$5.53

$

Usually ships in 4-12 days

0

21

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.24

$

In Stock, Qty 12

0

22

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.53

$

In Stock, Qty 20+

0

23

Ariens 06713800

@PIN-CTR .15X1.50 YWZC

$3.58

$

In Stock, Qty 5

0

24

Ariens 06900526

CLAMP, CUSHIONED STEEL 1.25

$16.71

$

Usually ships in 4-12 days

0

25

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$14.48

$

Usually ships in 4-12 days

0

26

Ariens 06944800

CLIP, SPRING

$2.18

$

In Stock, Qty 20+

0

27

Ariens 07100806

WHEEL, SPLITTER
(Superseded to 07101019)

$89.38

$

Usually ships in 4-12 days

0

28

Ariens 08200642

ENGINE, SUBARU EA175V

$

$

Not available

29

Ariens 08300435

SPRG, TENSION .063X.625X2.50

$8.89

$

Usually ships in 4-12 days

0

30

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$8.89

$

Usually ships in 4-12 days

0

31

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.96

$

In Stock, Qty 20+

0

32

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.91

$

In Stock, Qty 8

0

33

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.77

$

In Stock, Qty 12

0

34

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.80

$

In Stock, only 2 left!

0

35

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.08

$

In Stock, only 4 left!

0

36

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.96

$

In Stock, Qty 20+

0

37

Ariens 06606100

KEY-SQ .188X.75X.188

$3.58

$

In Stock, only 1 left!

0

38

Ariens M135582

CAP, DUST
(Superseded to 05117700)

$5.53

$

In Stock, Qty 6

0

39

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.80

$

In Stock, only 4 left!

0

40

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.80

$

In Stock, only 4 left!

0

41

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.24

$

In Stock, Qty 20+

0

42

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$2.80

$

In Stock, Qty 20+

0

43

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

44

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.53

$

In Stock, Qty 12

0

45

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.63

$

In Stock, Qty 11

0

46

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

47

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

48

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.08

$

In Stock, Qty 5

0

49

Ariens 06000222

SCR,SET .25-20X.75 PCPT SH

$1.68

$

Usually ships in 4-12 days

0
