917014 - Gravely 22-Ton Log Splitter (SN: 000101 & Above) Beam And Hydraulic Cylinder - 917014 Parts Diagram

22-Ton Log Splitter

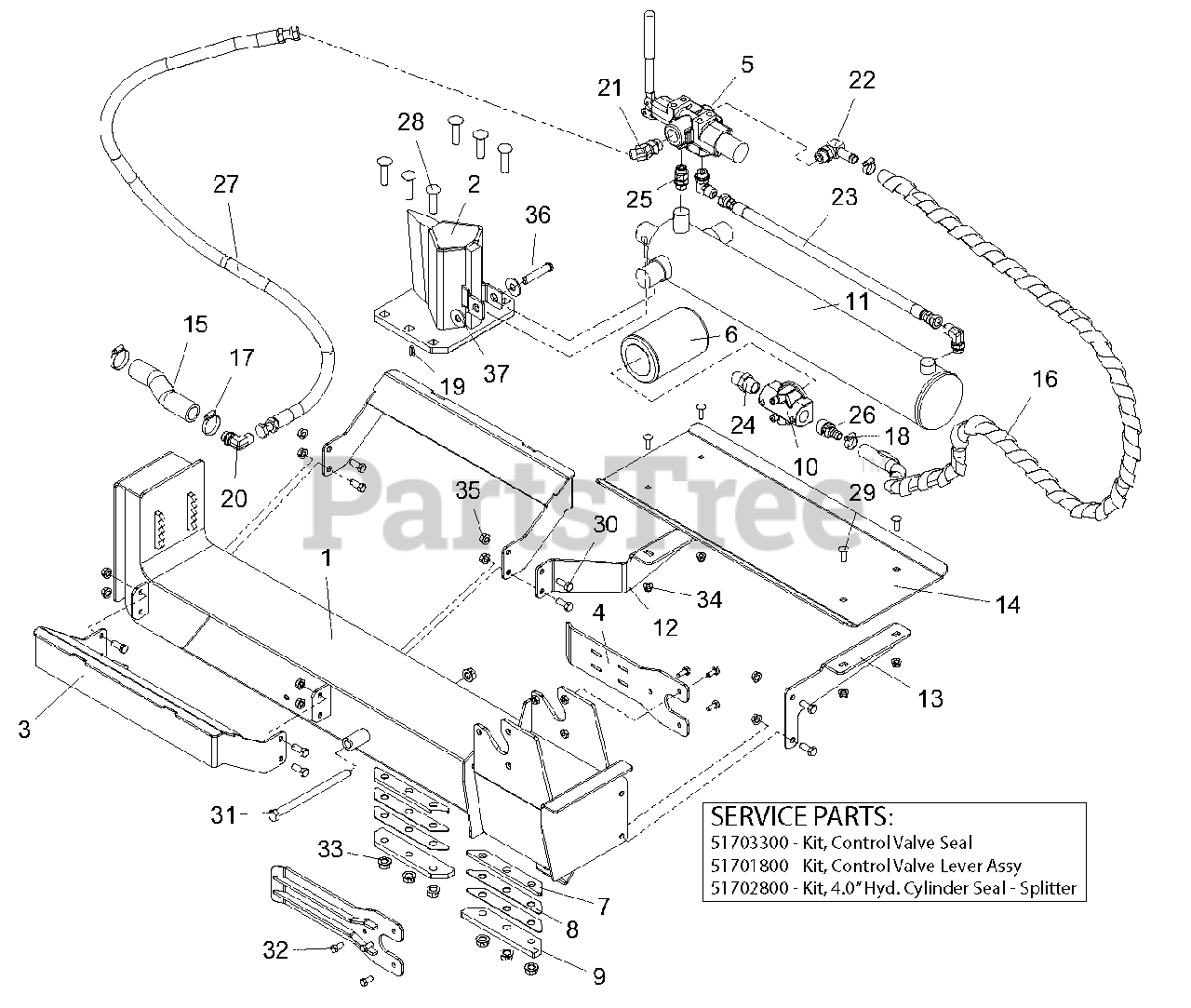

Beam And Hydraulic Cylinder - 917014 Parts Diagram

  • Title

1

Gravely 04578351

WLDMT, BEAM - 22 TON SPLITTER
(Superseded to 51703900)

$814.99

$

Usually ships in 4-12 days

0

2

Gravely 04541251

WLDMT, WEDGE - SPLITTER
(Superseded to 04824851)

$681.99

$

Usually ships in 4-12 days

0

3

Gravely 04590851

WLDMT, CRADLE - LOG SPLITTER

$168.99

$

In Stock, only 2 left!

0

4

Gravely 04579753

PLATE, STRIPPER - RED
(Superseded to 04861453)

$232.99

$

In Stock, only 1 left!

0

5

Gravely 03846300

VALVE, CONTROL - SPLITTER

$297.99

$

Usually ships in 4-12 days

0

5

Gravely 51703300

KIT, CONTROL VALVE SEAL

Note: SERVICE PART

$86.99

$

Usually ships in 4-12 days

0

5

Gravely 51701800

KIT, CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$102.99

$

Usually ships in 4-12 days

0

6

Gravely 03931900

FILTER, OIL - W/BYPASS

$26.99

$

In Stock, Qty 12

0

7

Gravely 03967151

SPCR, WEDGE

$22.99

$

In Stock, only 3 left!

0

8

Gravely 04284651

SHIM, SPLITTER WEDGE

$38.99

$

In Stock, only 1 left!

0

9

Gravely 04353251

RETAINER, WEDGE-BLACK

$24.99

$

In Stock, Qty 5

0

10

Gravely 04367300

HEAD, FILTER -3/4 NPT BYPASS

$

$

Not available

11

Gravely 04569800

CYLINDER, SPLITTER - 4.0"
(Superseded to 51702600)

$882.99

$

Usually ships in 4-12 days

0

11

Gravely 51702800

KIT, 4" HYDRAULIC CYLINDER SEAL - SPLITTER

Note: SERVICE PART

$

$

Not available

12

Gravely 04589451

BRKT, REAR - WORK TABLE

$57.99

$

Usually ships in 4-12 days

0

13

Gravely 04589551

BRKT, FRONT - WORK TABLE

$58.99

$

Usually ships in 4-12 days

0

14

Gravely 04590053

TABLE, WORK - LOG SPLITTER

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 04594300

HOSE, HYD SUCTION, 6.75"

$29.99

$

Usually ships in 4-12 days

0

16

Gravely 04594400

HOSE, HYD -RETURN 74"LG

$110.99

$

Usually ships in 4-12 days

0

17

Gravely 06922200

CLAMP, HOSE 1.50 X .81 X 1.42

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06923500

CLAMP, .88 DIA HOSE

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

20

Gravely 07001535

FTG, HYD. 2501-8-8

$28.99

$

Usually ships in 4-12 days

0

21

Gravely 07001537

FTG, HYD. 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 07001538

FTG, HYD. 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

23

Gravely 07001540

HOSE, ASSY, 8M3K-8FJX-8FJX-22

$68.99

$

Usually ships in 4-12 days

0

24

Gravely 07001601

FITTING, HYD 5404-12-12

$13.99

$

Usually ships in 4-12 days

0

25

Gravely 07001713

FTG, HYD - STR 08MAORB-08MORB

$11.99

$

In Stock, only 3 left!

0

26

Gravely 07001715

FTG, HYD 3/4"NPT X 5/8" ID HOSE BARBED

$13.99

$

Usually ships in 4-12 days

0

27

Gravely 07001717

HOSE, HYD 8M3K-8FJX-58

$86.99

$

Usually ships in 4-12 days

0

28

Gravely 06200208

@BLT-RDHDSQNK .50-13X2.00 G8 Y
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 06200007

BLT-RDHDSQSHNK .31-18X1.00 G5YWZC
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

32

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

33

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

35

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06822300

PIN-CLEV .494X2.50X2.27 YWZC
(Superseded to 06810700)

$3.99

$

In Stock, only 4 left!

0

37

Gravely 06442000

WSHR-FL-STL .563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0
