917014 - Gravely 22-Ton Log Splitter (SN: 000101 & Above) Beam And Hydraulic Cylinder - 917014 Parts Diagram

22-Ton Log Splitter

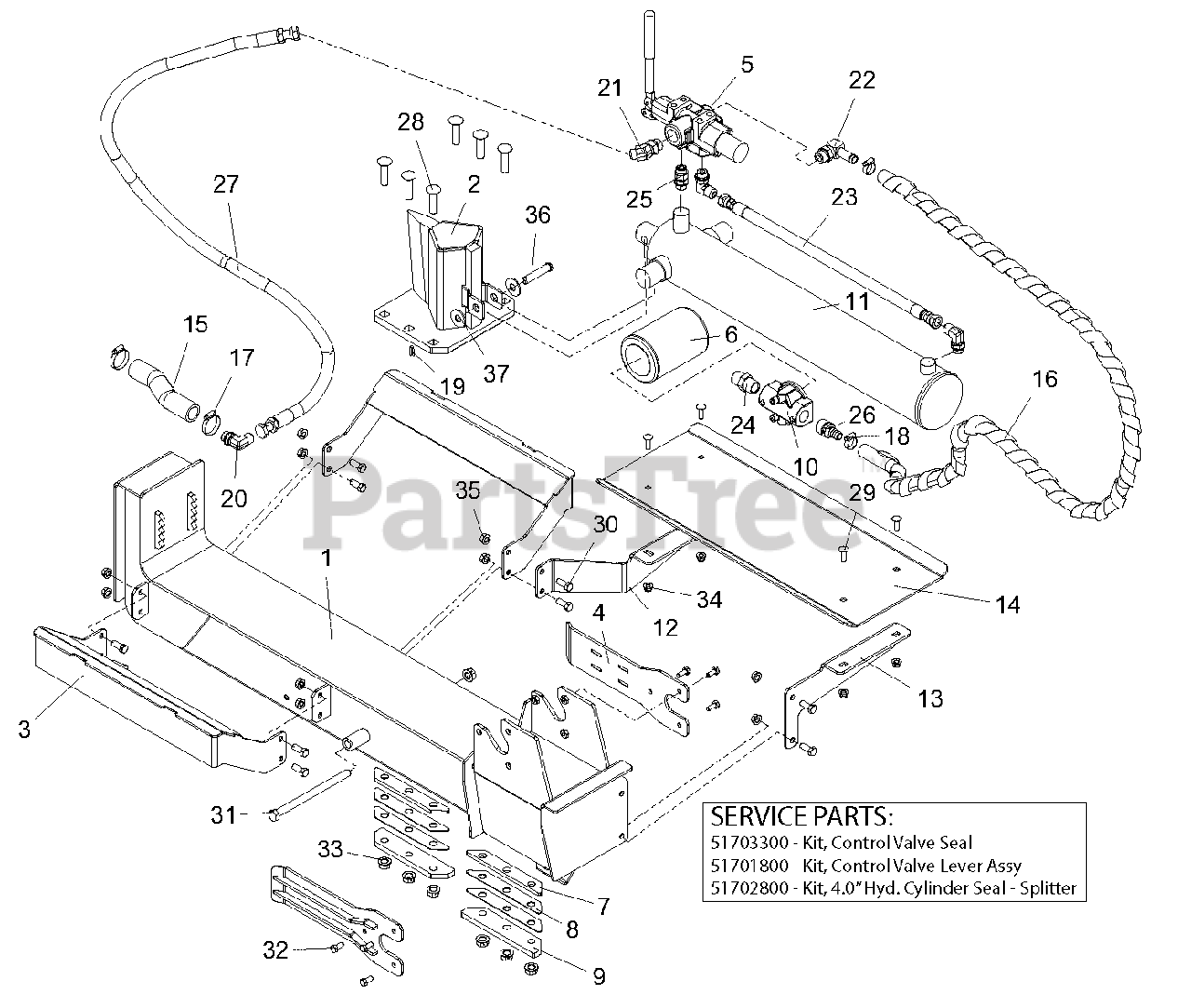

Beam And Hydraulic Cylinder - 917014 Parts Diagram

  • Title

1

Gravely 04578351

WLDMT, BEAM - 22 TON SPLITTER
(Superseded to 51703900)

$897.99

$

Usually ships in 4-12 days

0

2

Gravely 04541251

WLDMT, SPLITTER WEDGE
(Superseded to 04824851)

$694.99

$

Usually ships in 4-12 days

0

3

Gravely 04590851

WLDMT, CRADLE, LOG SPLITTER

$171.99

$

Usually ships in 4-12 days

0

4

Gravely 04579753

PLATE, STRIPPER
(Superseded to 04861453)

$237.99

$

In Stock, only 1 left!

0

5

Gravely 03846300

VALVE CONTROL-SPLITTER

$303.99

$

In Stock, only 1 left!

0

5

Gravely 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PART

$88.99

$

Usually ships in 4-12 days

0

5

Gravely 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART

$104.99

$

Usually ships in 4-12 days

0

6

Gravely 03931900

FILTER,OIL-W/BYPASS

$30.99

$

In Stock, Qty 20+

0

7

Gravely 03967151

SPACER, WEDGE

$25.99

$

In Stock, only 1 left!

0

8

Gravely 04284651

SHIM,SPLITTER WEDGE

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 04353251

RETAINER,WEDGE

$27.99

$

In Stock, only 2 left!

0

10

Gravely 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

11

Gravely 04569800

CYLINDER, SPLITTER 4.0
(Superseded to 51702600)

$971.99

$

Usually ships in 4-12 days

0

11

Gravely 51702800

KIT,4.0" HYD CYL SEAL-SPLITTER

Note: SERVICE PART

$

$

Not available

12

Gravely 04589451

BRKT, REAR - WORK TABLE

$58.99

$

Usually ships in 4-12 days

0

13

Gravely 04589551

BRKT, FRONT - WORK TABLE

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 04590053

TABLE, WORK - LOG SPLITTER

$57.99

$

Usually ships in 4-12 days

0

15

Gravely 04594300

HOSE, HYD - SUCTION 7.375"

$30.99

$

Usually ships in 4-12 days

0

16

Gravely 04594400

HOSE, HYD-RET 801-10 WP 74"

$114.99

$

Usually ships in 4-12 days

0

17

Gravely 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

20

Gravely 07001535

FTG,HYD 6801-8-8

$29.99

$

Usually ships in 4-12 days

0

21

Gravely 07001537

FTG,HYD 6802-8-10

$26.99

$

Usually ships in 4-12 days

0

22

Gravely 07001538

FTG,HYD 4601-10-10

$41.99

$

Usually ships in 4-12 days

0

23

Gravely 07001540

HOSE, HYD - 22"

$70.99

$

Usually ships in 4-12 days

0

24

Gravely 07001601

FTG,HYD 5404-12-12

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 07001713

FTG, HYD - STR 08MAORB-08MORB

$16.99

$

In Stock, only 2 left!

0

26

Gravely 07001715

FTG,HYD STRAIGHT 10-12

$

$

Not available

27

Gravely 07001717

HOSE, HYD - 58"

$90.99

$

Usually ships in 4-12 days

0

28

Gravely 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

In Stock, only 2 left!

0

30

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$8.49

$

In Stock, Qty 17

0

32

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06822300

PIN-CLEV .50X2.50X2.27 YWZC
(Superseded to 06810700)

$3.99

$

In Stock, Qty 20+

0

37

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0
