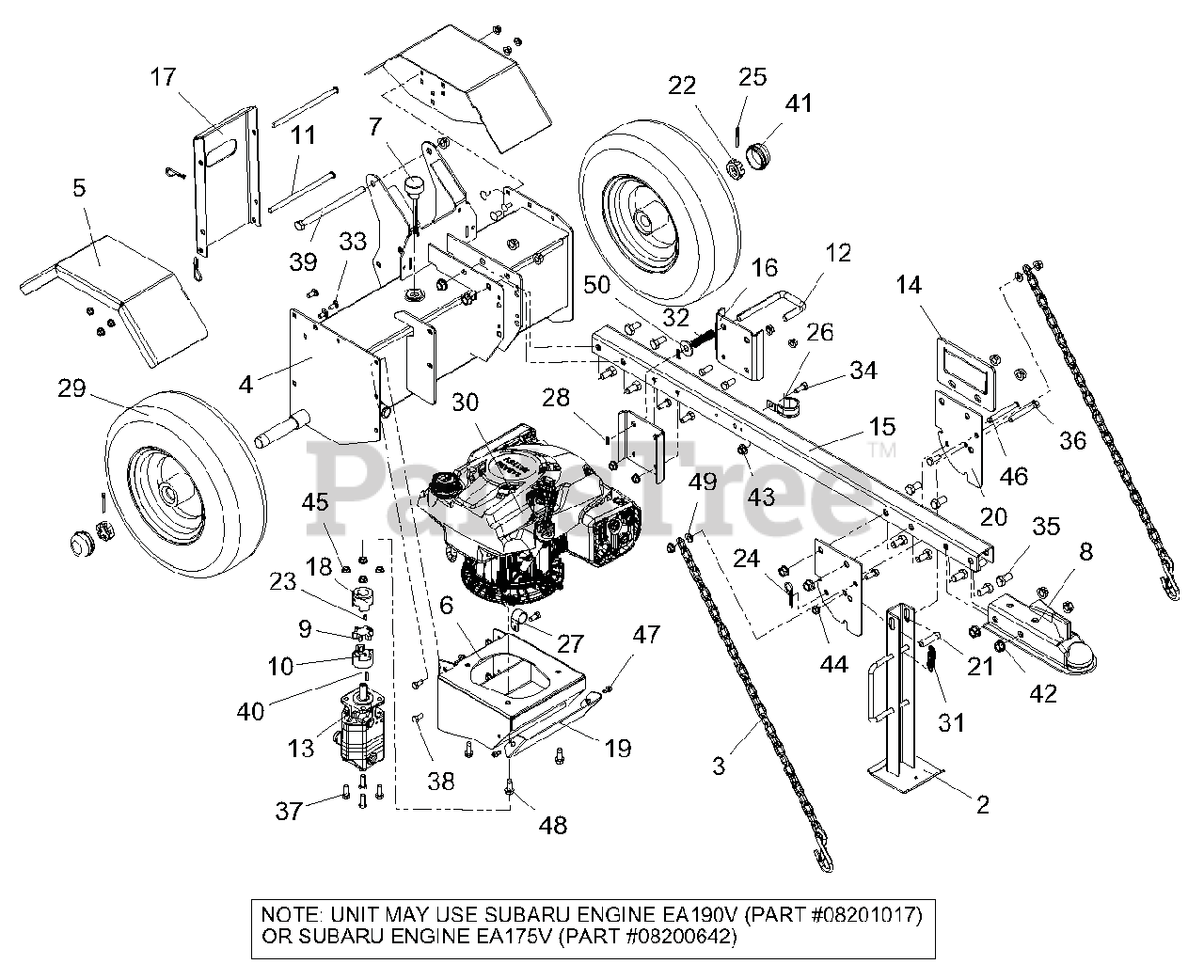

917014 - Gravely 22-Ton Log Splitter (SN: 000101 & Above) Frame, Engine And Pump Parts Diagram

22-Ton Log Splitter

Frame, Engine And Pump Parts Diagram

  • Title

2

Gravely 03938151

WLDMT, JACK STAND

$190.99

$

Usually ships in 4-12 days

0

3

Gravely 04649800

CHAIN, SAFETY 3/16"-30LINK

$43.99

$

Usually ships in 4-12 days

0

4

Gravely 04577053

WMT,SMALL CHASSIS
(Superseded to 51703000)

Note: (SMALL)-RED

$

$

Not available

5

Gravely 03857153

WLDMT, FENDER

$112.99

$

Usually ships in 4-12 days

0

6

Gravely 04580153

WLDMT,ENGINE/PUMP MOUNT

$160.99

$

Usually ships in 4-12 days

0

7

Gravely 00463000

BREATHER, DIPSTICK

$

$

Not available

8

Gravely 03846600

HITCH, BALL-2"
(Superseded to 51706100)

$302.99

$

Usually ships in 4-12 days

0

9

Gravely 03856200

SPIDER,URETHANE
(Superseded to 04586500)

$6.99

$

In Stock, Qty 9

0

10

Gravely 03856300

HUB,DRIVE COUPLING 1/2"
(Superseded to 04586600)

$26.99

$

In Stock, Qty 6

0

11

Gravely 03857200

PIN, LOCK

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 03857500

LOCK, BEAM

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 03926900

PUMP,SPLITTER-11 GPM

$816.99

$

Usually ships in 4-12 days

0

14

Gravely 04378651

HANDLE, SPLITTER DRAW BAR

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 04577351

BAR, DRAW
(Superseded to 51702700)

Note: (CHANNEL)

$139.99

$

Usually ships in 4-12 days

0

16

Gravely 04577651

GUIDE, LOCK DOWN

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 04579653

SUPPORT,REAR LEG
(Superseded to 51701500)

$

$

Not available

18

Gravely 04586400

HUB, DRIVE COUPLING 7/8"
(Superseded to 04586800)

$29.99

$

In Stock, only 2 left!

0

19

Gravely 04587853

COVER, COUPLING

$26.99

$

Usually ships in 4-12 days

0

20

Gravely 04635751

MOUNT, SPRING LOADED JACK

$30.99

$

Usually ships in 4-12 days

0

21

Gravely 05533500

SPCR, WHEEL .385X.500X2.00

$10.99

$

In Stock, Qty 19

0

22

Gravely 06513100

NUT-SL 1.0-14

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

Note: (HRDEND)

$3.49

$

In Stock, Qty 10

0

24

Gravely 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$7.99

$

In Stock, Qty 9

0

25

Gravely 06713800

PIN-CTR .15X1.50 YWZC

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06900526

CLAMP, CUSHIONED STEEL 1.25

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

28

Gravely 06944800

CLIP, SPRING

$1.99

$

In Stock, Qty 20+

0

29

Gravely 07100806

WHEEL, SPLITTER
(Superseded to 07101019)

$131.99

$

In Stock, only 1 left!

0

30

Gravely 08200642

ENGINE, SUBARU EA175V

$

$

Not available

31

Gravely 08300435

SPRG, TENSION .063X.625X2.50

$10.99

$

In Stock, only 2 left!

0

32

Gravely 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

33

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$3.49

$

In Stock, only 2 left!

0

36

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 11

0

37

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

39

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$9.49

$

In Stock, Qty 9

0

40

Gravely 06606100

KEY-SQ .188X.75X.188

$4.99

$

In Stock, only 2 left!

0

41

Gravely M135582

CAP, DUST
(Superseded to 05117700)

$7.49

$

In Stock, Qty 11

0

42

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.49

$

In Stock, Qty 20+

0

43

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

44

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 02747500

PIN-CLEV .371X3.25 YWZC

$7.49

$

In Stock, Qty 9

0

47

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$4.99

$

In Stock, Qty 18

0

49

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

50

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0
