917030 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 000101 - 011999) Hydraulics And Hoses Parts Diagram

22-Ton Log Splitter, 174cc Subaru

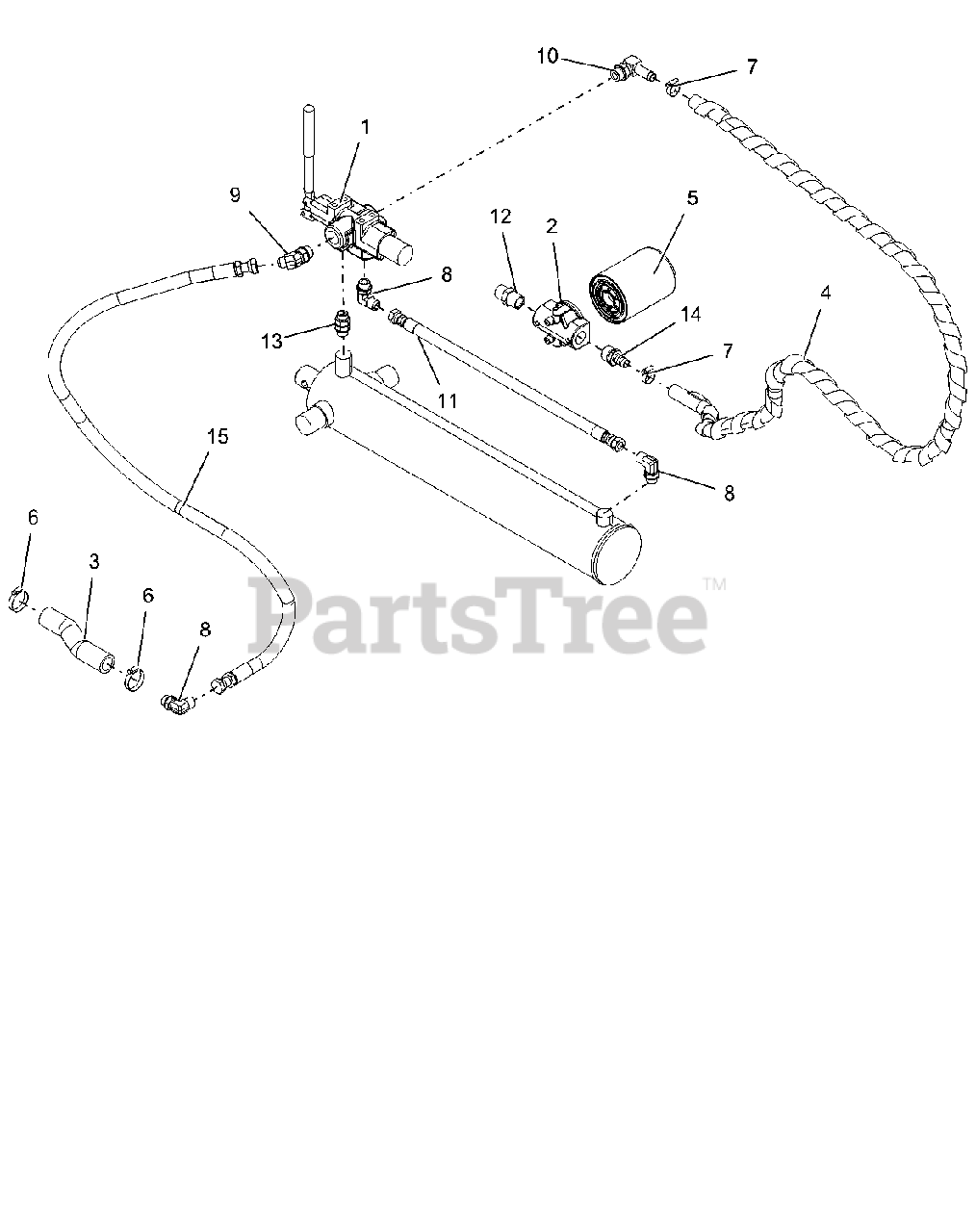

Hydraulics And Hoses Parts Diagram

  • Title

1

Ariens 03846300

VALVE CONTROL-SPLITTER

$303.99

$

In Stock, only 1 left!

0

1

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART (NOT SHOWN)

$104.99

$

Usually ships in 4-12 days

0

1

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PRAT (NOT SHOWN)

$88.99

$

Usually ships in 4-12 days

0

2

Ariens 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

3

Ariens 04594300

HOSE, HYD - SUCTION 7.375"

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 04594400

HOSE, HYD-RET 801-10 WP 74"

$114.99

$

Usually ships in 4-12 days

0

5

Ariens 04975800

FILTER,HYDRAULIC OIL-NO BYPASS

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 6

0

8

Ariens 07001535

FTG,HYD 6801-8-8

$29.99

$

Usually ships in 4-12 days

0

9

Ariens 07001537

FTG,HYD 6802-8-10

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 07001538

FTG,HYD 4601-10-10

$41.99

$

Usually ships in 4-12 days

0

11

Ariens 07001540

HOSE, HYD - 22"

$70.99

$

Usually ships in 4-12 days

0

12

Ariens 07001601

FTG,HYD 5404-12-12

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$16.99

$

In Stock, Qty 6

0

14

Ariens 07001715

FTG,HYD STRAIGHT 10-12

$

$

Not available

15

Ariens 07001717

HOSE, HYD - 58"

$90.99

$

Usually ships in 4-12 days

0
