917030 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 017000 & Above) Drawbar, Hitch And Stand Parts Diagram

22-Ton Log Splitter, 174cc Subaru

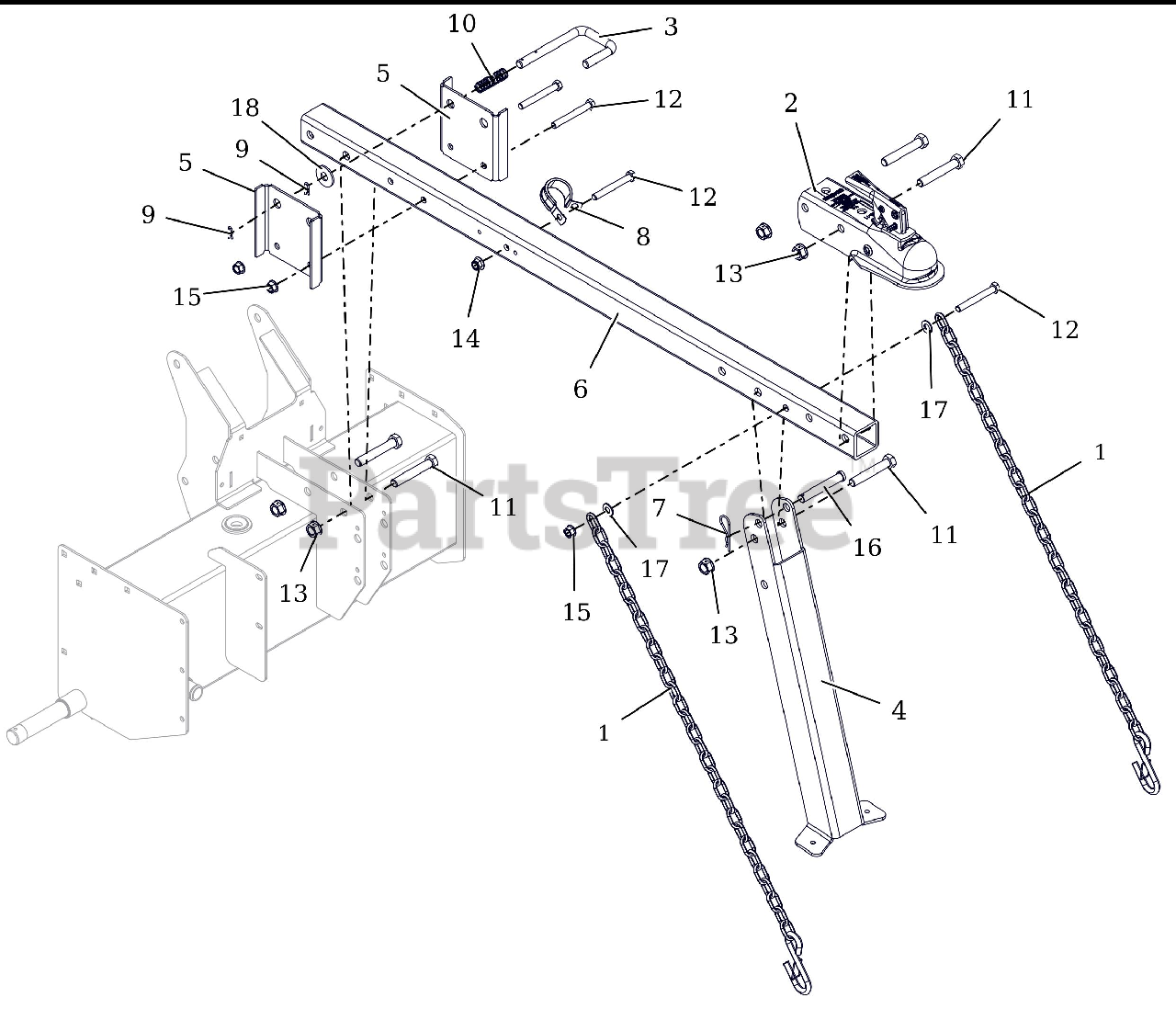

Drawbar, Hitch And Stand Parts Diagram

  • Title

1

Ariens 04649800

CHAIN, SAFETY 3/16"-30LINK

$41.99

$

Usually ships in 4-12 days

0

2

Ariens 05131100

COUPLER-BALL 2.000"

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 03857500

LOCK, BEAM

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 04541751

LEG SUPPORT-FRONT

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 04577651

GUIDE, LOCK DOWN

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 51706000

DRAWBAR TUBE W/SAFETY DECAL-22

$

$

Not available

7

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$6.99

$

In Stock, Qty 5

0

8

Ariens 06900526

CLAMP, CUSHIONED STEEL 1.25

$18.99

$

Usually ships in 4-12 days

0

9

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

10

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

11

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

12

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

13

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0
