917031 - Ariens 27-Ton Log Splitter, 5.5hp Subaru (SN: 017000 & Above) Beam Parts Diagram

27-Ton Log Splitter, 5.5hp Subaru

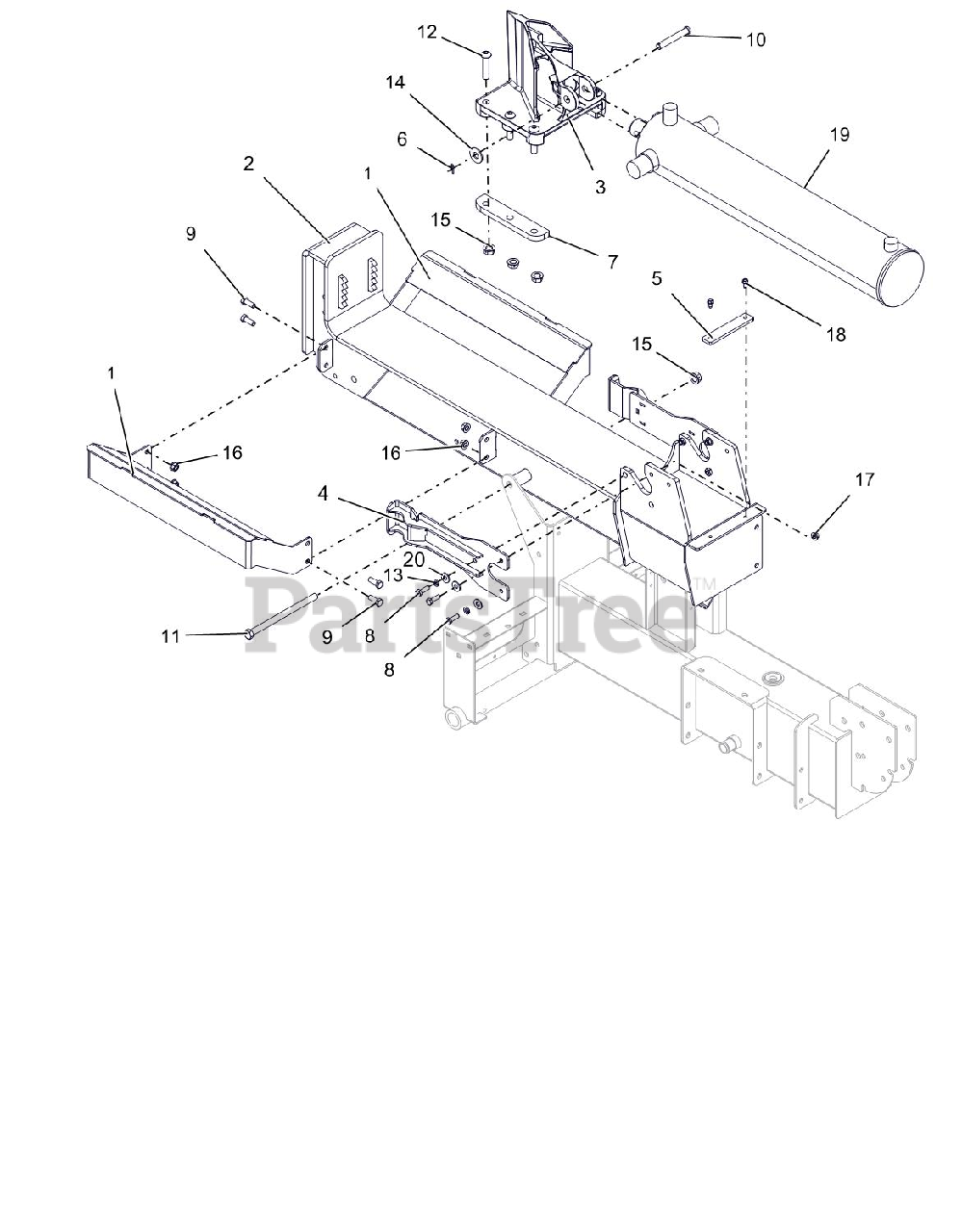

Beam Parts Diagram

  • Title

1

Ariens 04590851

WLDMT, CRADLE, LOG SPLITTER

$171.99

$

Usually ships in 4-12 days

0

2

Ariens 04740951

WLDMT, BEAM - 27/34T SPLITTER

$580.99

$

Usually ships in 4-12 days

0

3

Ariens 04981700

WEDGE-LOG SPLITTER-MACHINED

$443.99

$

Usually ships in 4-12 days

0

4

Ariens 04861459

WLDMT, PLATE - STRIPPER

$145.99

$

In Stock, only 2 left!

0

5

Ariens 03835751

SPACER, CYLINDER

$12.99

$

Usually ships in 4-12 days

0

6

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

7

Ariens 05024251

RETAINER-WEDGE

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

9

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

11

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$8.49

$

In Stock, Qty 5

0

12

Ariens 05900133

SCR-SKH .500-13X2.250 BTH YZ

$

$

Not available

13

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

14

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 51700200

CYLINDER,4.5 W/DECALS

$1058.99

$

Usually ships in 4-12 days

0

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
