917032 - Ariens 34-Ton Log Splitter, 7hp Subaru (SN: 000101 - 011999) Hydraulic Hoses And Fittings Parts Diagram

34-Ton Log Splitter, 7hp Subaru

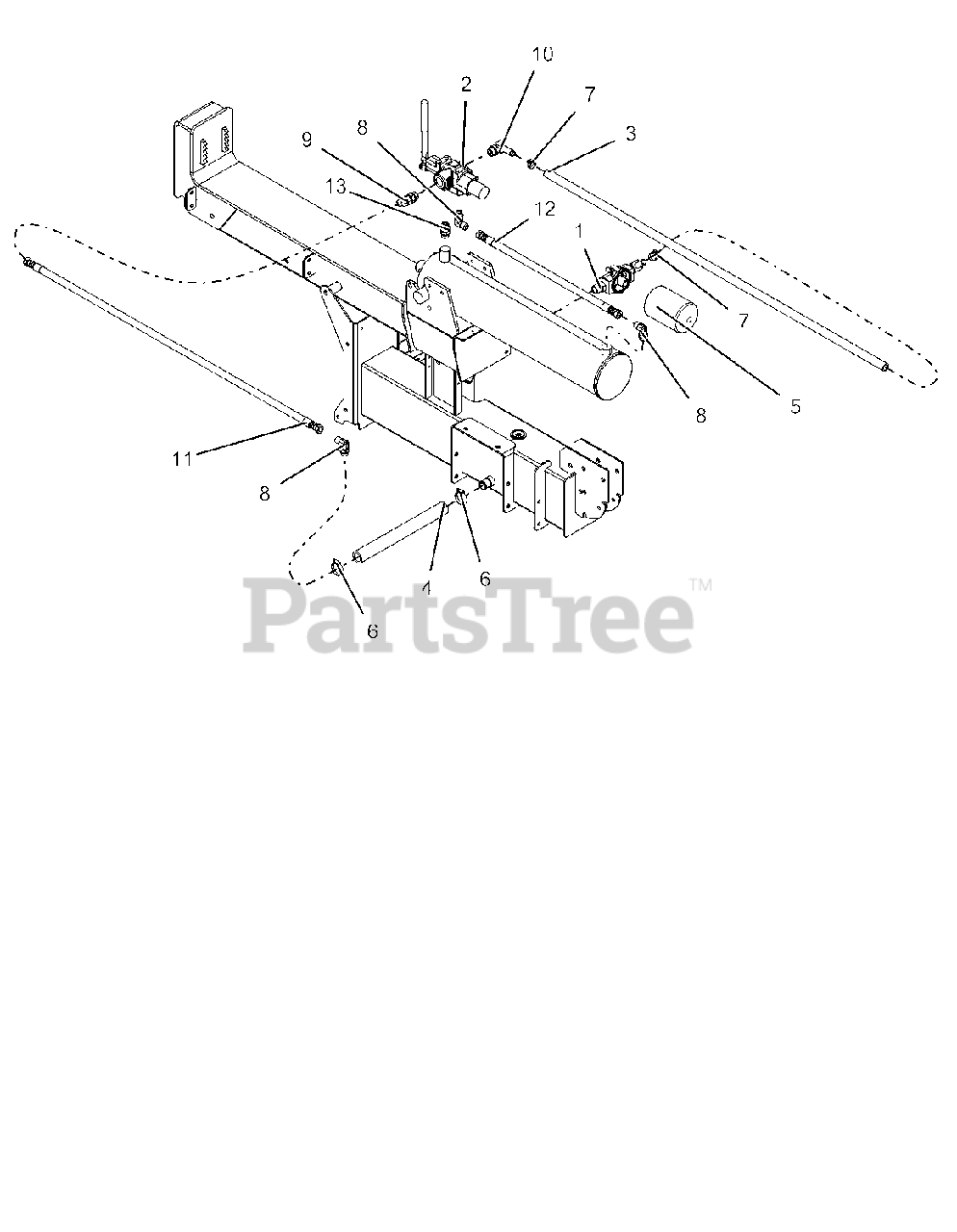

Hydraulic Hoses And Fittings Parts Diagram

  • Title

1

Ariens 61700400

ASM, FILTER HEAD

$71.99

$

Usually ships in 4-12 days

0

2

Ariens 03846300

VALVE CONTROL-SPLITTER

$297.99

$

Usually ships in 4-12 days

0

2

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

Note: SERVICE PART (NOT SHOWN)

$102.99

$

Usually ships in 4-12 days

0

2

Ariens 51703300

KIT,CONTROL VALVE SEAL

Note: SERVICE PRAT (NOT SHOWN)

$86.99

$

Usually ships in 4-12 days

0

3

Ariens 03859600

HOSE,HYD RETURN 10LOLA X 53"

$78.99

$

Usually ships in 4-12 days

0

4

Ariens 03859700

HOSE,HYD SUCTION 16G4H X 13.5

$55.99

$

Usually ships in 4-12 days

0

5

Ariens 04975800

FILTER,HYDRAULIC OIL-NO BYPASS

$36.99

$

In Stock, only 1 left!

0

6

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 07001537

FTG,HYD 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 07001538

FTG,HYD 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

11

Ariens 07001539

HOSE, ASM - 46"

$141.99

$

Usually ships in 4-12 days

0

12

Ariens 07001540

HOSE, HYD - 22"

$68.99

$

Usually ships in 4-12 days

0

13

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$11.99

$

In Stock, only 3 left!

0
