917035 - Ariens 27-Ton Log Splitter (SN: 000101 & Above) Engine Parts Diagram

27-Ton Log Splitter

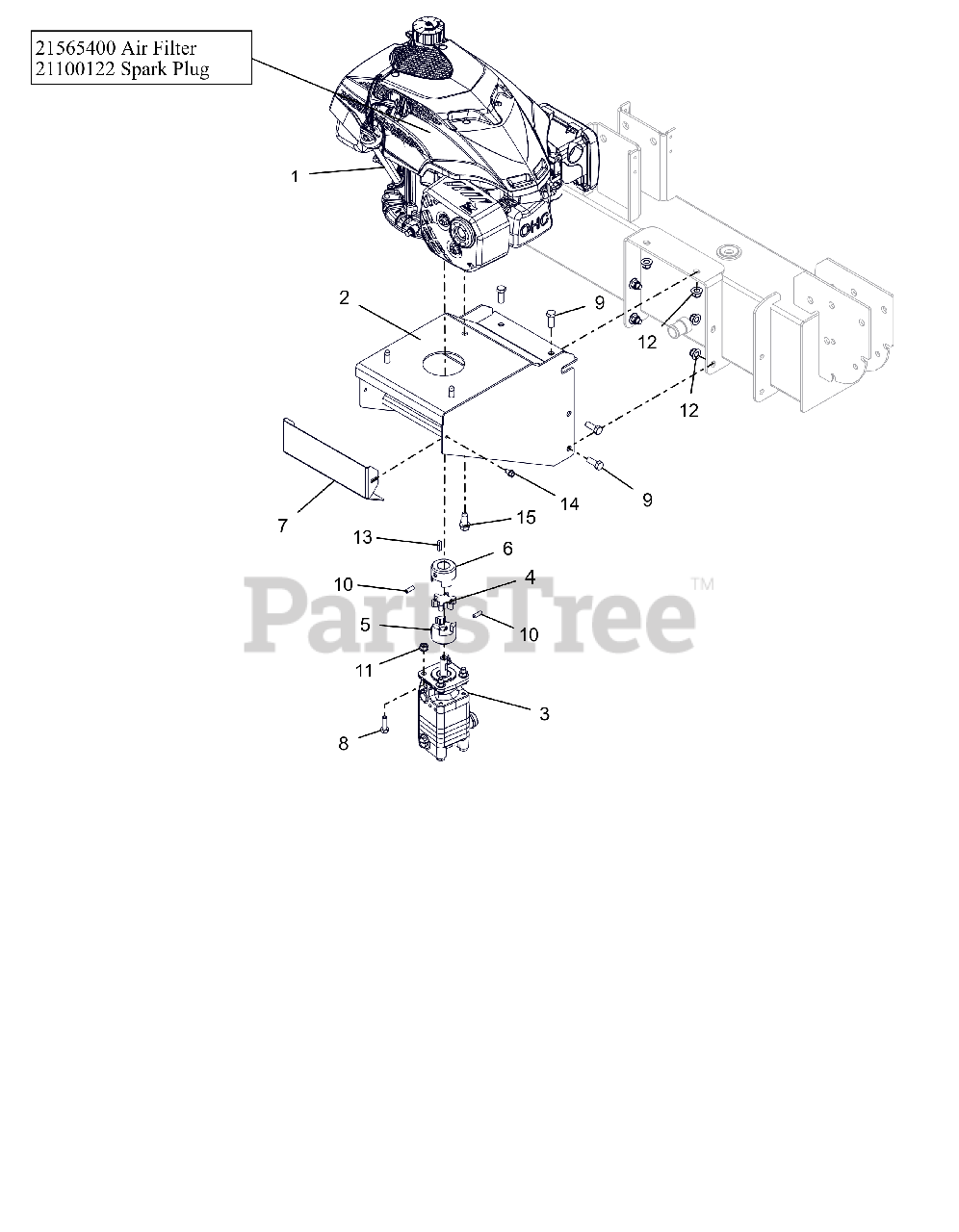

Engine Parts Diagram

  • Title

1

Ariens 08201320

ENGINE, YAMAHA MA190 (CARB)

$

$

Currently unavailable

1

Ariens 21565400

FILTER, AIR

Note: SERVICE PART

$

$

Currently unavailable

1

Ariens 21100122

PLUG, SPARK

Note: SERVICE PART

$4.99

$

In Stock, Qty 7

0

2

Ariens 51705200

ENGINE MOUNT W/SAFTY DECAL-27T

$134.99

$

Usually ships in 4-12 days

0

3

Ariens 03926900

PUMP,SPLITTER-11 GPM

$324.99

$

Usually ships in 4-12 days

0

4

Ariens 04586500

SPIDER - URETHANE

$5.99

$

In Stock, Qty 7

0

5

Ariens 04586600

COUPLER - DRIVE 1/2"

$25.99

$

In Stock, only 1 left!

0

6

Ariens 04586800

COUPLER - DRIVE, 7/8"

$26.99

$

Usually ships in 4-12 days

0

7

Ariens 04974759

COVER-COUPLER

$

$

Not available

8

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

9

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06000222

SCR,SET .25-20X.75 PCPT SH

$1.99

$

In Stock, only 1 left!

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

14

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0
