917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 010000 - 011999) Hydraulic Controls Parts Diagram

27-Ton Log Splitter, 6hp Subaru

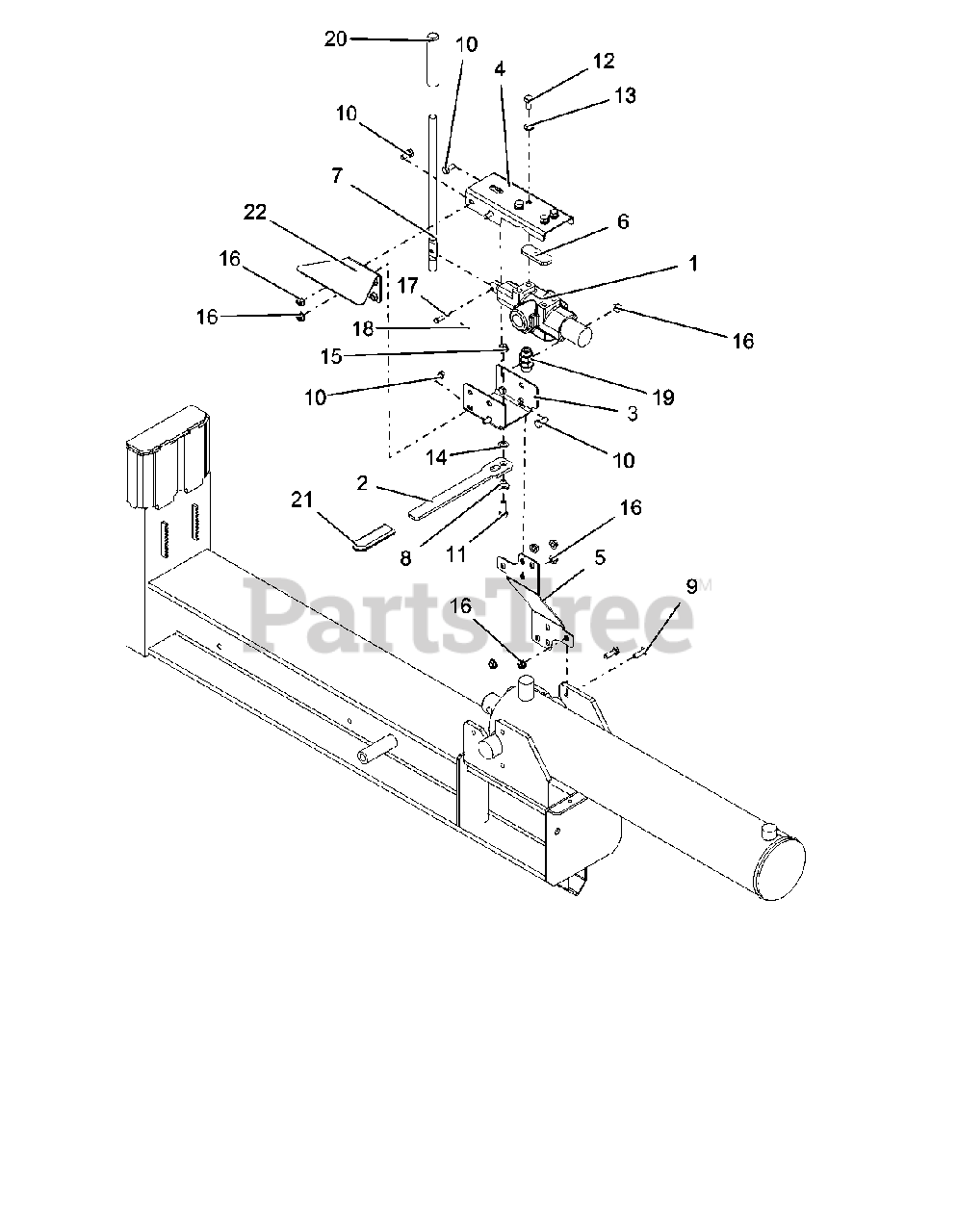

Hydraulic Controls Parts Diagram

  • Title

1

Ariens 04365500

VALVE, CONTROL -CE SPLITTER

$

$

Not available

2

Ariens 04368251

HANDLE, SIDE 2 HAND CONTROL

$6.49

$

Usually ships in 4-12 days

0

3

Ariens 04368351

BRKT, LOWER 2 HAND CONTROL

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 04368451

BRKT, UPPER 2 HAND CONTROL

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 04368551

BRACE, SIDE 2 HAND CONTROL

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 04368751

SPCR, BRKT 2 HAND CONTROL

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 04368851

HANDLE, UPPER 2 HAND CONTROL

$41.99

$

Usually ships in 4-12 days

0

8

Ariens 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, only 1 left!

0

9

Ariens 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

10

Ariens 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

11

Ariens 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

13

Ariens 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

14

Ariens 06439600

WSHR-FL-STL .520X.810X.033 YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06700209

PIN, CLEV .250x1.125

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06707500

@PIN-CTR .06X.75 EXTPRSQCT YZ

$0.99

$

In Stock, only 4 left!

0

19

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$11.99

$

In Stock, only 3 left!

0

20

Ariens 07500107

GRIP, .475 ID X 4.25 LG

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 07523000

GRIP, HANDLE -FLAT .250 X 3.500

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 51705600

BRKT, SIDE 2 HAND CONTROL

$

$

Not available
