917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 014000 & Above) Engine Parts Diagram

27-Ton Log Splitter, 6hp Subaru

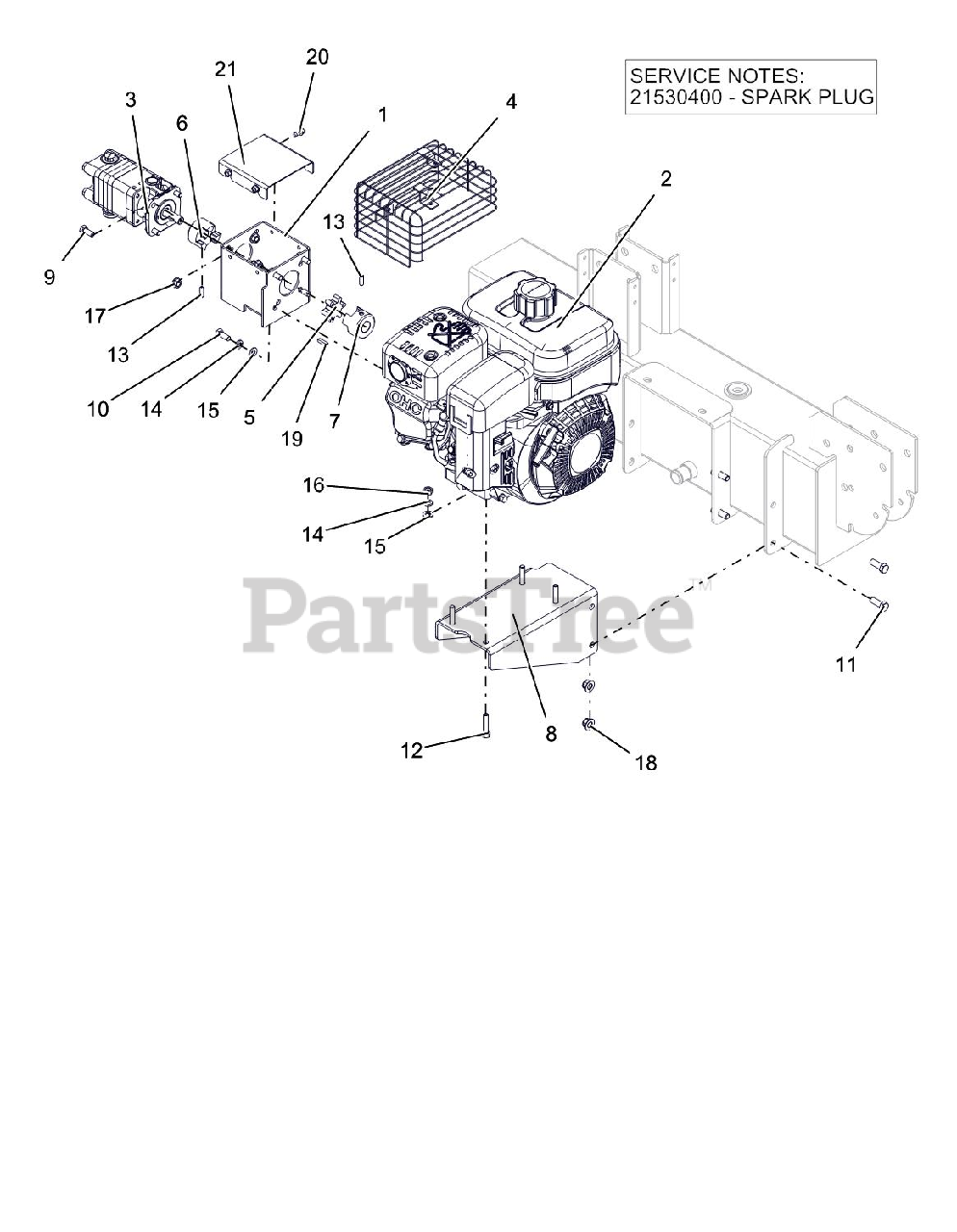

Engine Parts Diagram

  • Title

1

Ariens 03858351

WLDMT, PUMP MOUNT BRKT

$61.99

$

In Stock, only 1 left!

0

2

Ariens 21530400

PLUG, SPARK - TEC. SNO-THRO

Note: SERVICE PART

$

$

Not available

2

Ariens 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

$

$

Not available

3

Ariens 03926900

PUMP,SPLITTER-11 GPM

$732.99

$

Usually ships in 4-12 days

0

4

Ariens 04042300

GUARD,MUFFLER,SUB 20A-37303-11

$

$

Not available

5

Ariens 04586500

SPIDER - URETHANE

$5.99

$

In Stock, Qty 7

0

6

Ariens 04586600

COUPLER - DRIVE 1/2"

$25.99

$

In Stock, only 1 left!

0

7

Ariens 04586700

COUPLER - DRIVE, 3/4"

$26.99

$

In Stock, Qty 5

0

8

Ariens 04966959

MOUNT-ENGINE

$

$

Not available

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06000222

SCR,SET .25-20X.75 PCPT SH

$1.99

$

In Stock, only 1 left!

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 51700600

COVER W/DECALS

$

$

Not available
