917301 - Gravely 27-Ton Log Splitter (SN: 000101 & Above) Work Table Kit 71701200 Parts Diagram

27-Ton Log Splitter

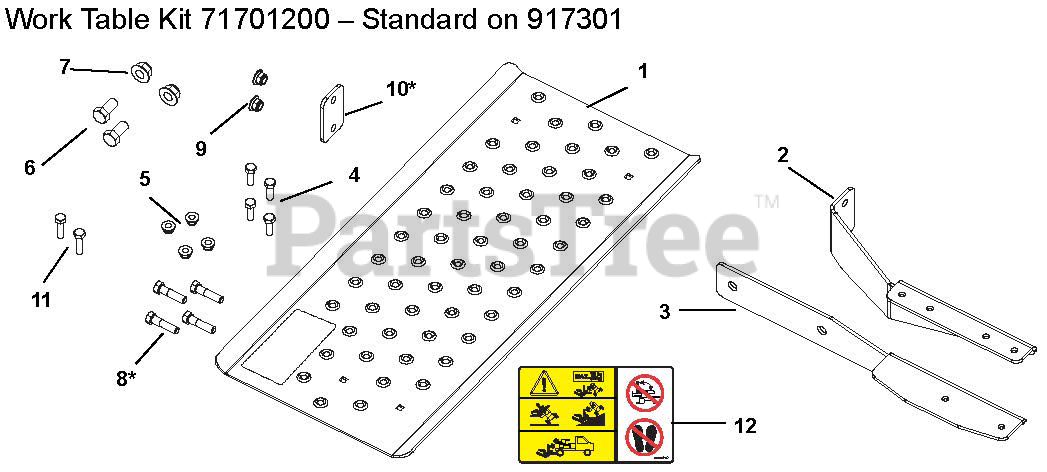

Work Table Kit 71701200 Parts Diagram

  • Title

1

Gravely 03880153

Bracket, Work Table

$

$

Not available

2

Gravely 03880251

Bracket, Rear Table Mount

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 03880351

Bracket, Front Table Mount

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 06200007

Bolt, Round Head Square Neck .312-18 x 1
(Superseded to 06200237)

$2.99

$

In Stock, only 3 left!

0

5

Gravely 06545400

Nut, Nyloc Flange .312-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05947100

Bolt, Hex .50-13 x 1
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

7

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

8

05957900*

Bolt, Hex .38-16 x 1.5

Note: * For use with installation of Log Cradle Kit (71701600).

$

$

Not available

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 11

0

10

03886751*

Spacer Plate, Work Table

Note: * For use with installation of Log Cradle Kit (71701600).

$

$

Not available

11

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.99

$

In Stock, only 1 left!

0

12

Gravely 08000727

Decal, Splitter Table

$23.99

$

Usually ships in 4-12 days

0
