9177 B89 - Electrolux/AYP Lawn Tractor (1998) BRIGGS AND STRATTON ENGINE Parts Diagram

Lawn Tractor

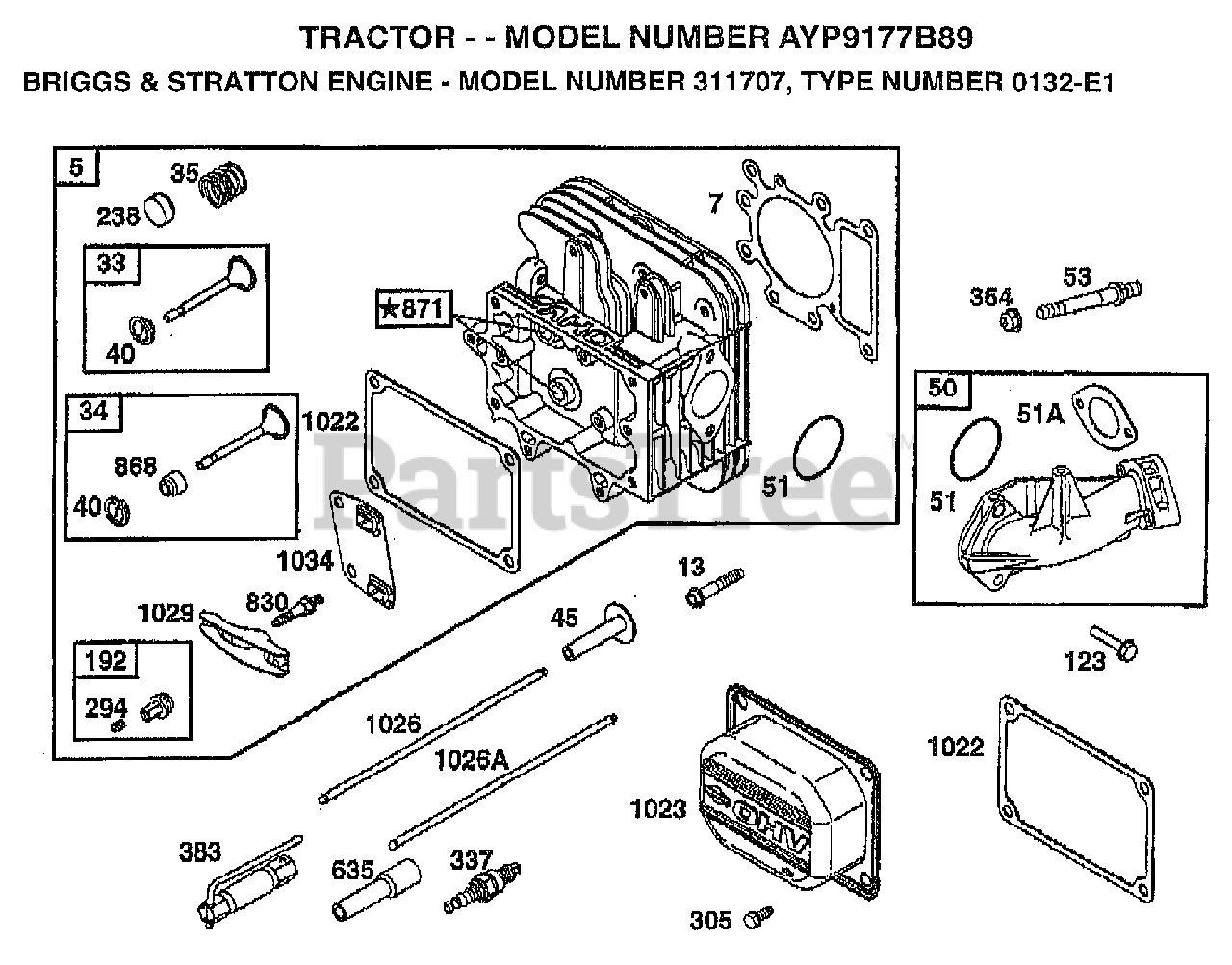

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 690156

CYLINDER ASSEMBLY

$

$

Not available

2

Electrolux/AYP 399265

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

3

Electrolux/AYP 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 494238

BASE, ENGINE

$

$

Not available

5

Electrolux/AYP 690188

HEAD, CYLINDER

$

$

Not available

6

Electrolux/AYP 94927

WASHER, GOVERNOR LEVER

$

$

Not available

7

Electrolux/AYP 273763

GASKET, CYLINDER HEAD

$

$

Not available

8

Electrolux/AYP 495735

BREATHER ASSY

$

$

Not available

9

Electrolux/AYP 27803

GASKET, VALVE COVER

$

$

Not available

10

Electrolux/AYP 94621

SCREW, STEMS

$

$

Not available

11

Electrolux/AYP 281246

TUBE, BREATHER

$

$

Not available

12

Electrolux/AYP 271916

GASKET, CRANKCASE COVER 1/64"

$

$

Not available

12

Electrolux/AYP 271997

GASKET, CRANKCASE COVER .005"

$

$

Not available

13

Electrolux/AYP 94728

SCREW, CYLINDER HEAD

$

$

Not available

15

Electrolux/AYP 94239

PLUG, OIL DRAIN

$

$

Not available

16

Electrolux/AYP 690136

CRANKSHAFT

$

$

Not available

20

Electrolux/AYP 291675

SEAL, OIL

$

$

Not available

22

Electrolux/AYP 95187

SCREW

$

$

Not available

23

Electrolux/AYP 690222

FLYWHEEL

$

$

Not available

24

Electrolux/AYP 222698

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 692271

PISTON, ASSEMBLY

$

$

Not available

25

Electrolux/AYP 692272

PISTON ASSEMBLY

$

$

Not available

25

Electrolux/AYP 692273

PISTON ASSEMBLY

$

$

Not available

25

Electrolux/AYP 692274

PISTON ASSEMBLY

$

$

Not available

26

Electrolux/AYP 690162

RING SET, PISTON

$

$

Not available

26

Electrolux/AYP 690164

RING SET, PISTON

$

$

Not available

26

Electrolux/AYP 690166

RING SET, PISTON

$

$

Not available

26

Electrolux/AYP 690168

RING SET, PISTON

$

$

Not available

27

Electrolux/AYP 263129

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 498319

PIN, PISTON, STD SIZE

$

$

Not available

28

Electrolux/AYP 498320

PIN ASSY., PISTON, .005" OVERSIZE

$

$

Not available

29

Electrolux/AYP 499468

ROD ASSEMBLY, CONNECTING

$

$

Not available

29

Electrolux/AYP 499940

ROD ASSEMBLY, CONNECTING

$

$

Not available

32

Electrolux/AYP 95190

SCREW

$

$

Not available

33

Electrolux/AYP 495856

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 495857

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 262811

SPRING, VALVE

$

$

Not available

40

Electrolux/AYP 224641

RETAINER, VALVE SPRING

$

$

Not available

43

Electrolux/AYP 40815

GOV./OIL SLINGER

$

$

Not available

45

Electrolux/AYP 262411

TAPPET, VALVE

$

$

Not available

46

Electrolux/AYP 496884

GEAR, CAM

$

$

Not available

50

Electrolux/AYP 690193

MANIFOLD, INTAKE

$

$

Not available

51

Electrolux/AYP 281735

GASKET, INTAKE

$

$

Not available

51A

Electrolux/AYP 273650

GASKET, INTAKE

$

$

Not available

53

Electrolux/AYP 94637

STUD, CARBURETOR MOUNTING

$

$

Not available

73

Electrolux/AYP 494439

SCREEN, ROTATING

$

$

Not available

75

Electrolux/AYP 225136

WASHER, SPRING

$

$

Not available

78

Electrolux/AYP 94821

SCREW, SEMS

$

$

Not available

87

Electrolux/AYP 491323

SEAL, GOVERNOR

$

$

Not available

93

Electrolux/AYP 281346

BUSHING, THROTTLE SHAFT

$

$

Not available

94

Electrolux/AYP 498030

VALVE, IDLE, ADJUSTMENT

$

$

Not available

95

Electrolux/AYP 94098

SCREW, THROTTLE

$

$

Not available

98

Electrolux/AYP 495800

SCREW, IDLE SPEED

$

$

Not available

104

Electrolux/AYP 231789

PIN, FLOAT HINGE

$

$

Not available

105

Electrolux/AYP 231855

VALVE ASSY, INLET NEEDLE

$

$

Not available

106

Electrolux/AYP 231854

INLET VALVE SEAT

$

$

Not available

108

Electrolux/AYP 224558

VALVE, CHOKE

$

$

Not available

108A

Electrolux/AYP 224540

VALVE, CHOKE

$

$

Not available

110

Electrolux/AYP 225137

WASHER, FLAT

$

$

Not available

116

Electrolux/AYP 270920

SEAL, OIL FILLER CAP

$

$

Not available

117

Electrolux/AYP 232118

JET, MAIN (STANDARD)

$

$

Not available

117

Electrolux/AYP 232119

JET, MAIN (HIGH ALTITUDE)

$

$

Not available

121

Electrolux/AYP 690191

CARBURETOR OVERHAUL KIT

$

$

Not available

123

Electrolux/AYP 95160

SCREW

$

$

Not available

125

Electrolux/AYP 690194

CARBURETOR

$

$

Not available

130

Electrolux/AYP 224539

VALVE, THROTTLE

$

$

Not available

131

Electrolux/AYP 493379

THROTTLE SHAFT KIT

$

$

Not available

133

Electrolux/AYP 494381

FLOAT, CARBURETOR

$

$

Not available

137

Electrolux/AYP 281165

GASKET, FLOAT BOWL

$

$

Not available

141

Electrolux/AYP 495097

SHAFT

$

$

Not available

141A

Electrolux/AYP 495931

SHAFT & LEVER, CHOKE

$

$

Not available

142

Electrolux/AYP 232117

NOZZLE, CARBURETOR

$

$

Not available

146

Electrolux/AYP 94196

KEY, TIMING GEAR

$

$

Not available

163

CHECK WITH SUPPLIER

$

$

Not available

171

CHECK WITH SUPPLIER

$

$

Not available

186

Electrolux/AYP 493496

ELBOW, FUEL PIPE

$

$

Not available

187

Electrolux/AYP 298049

LINE, FUEL

$

$

Not available

188

Electrolux/AYP 94627

SCREW, SEMS 3/4"

$

$

Not available

192

Electrolux/AYP 492160

SCREW ASSY, ROCKER ARM

$

$

Not available

199

Electrolux/AYP 494768

VALVE, SHUT-OFF

$

$

Not available

205

Electrolux/AYP 94903

SCREW, HEX HEAD

$

$

Not available

205A

Electrolux/AYP 94073

SCREW, HEX HEAD

$

$

Not available

209

Electrolux/AYP 260695

SPRING, GOVERNOR

$

$

Not available

216

Electrolux/AYP 262766

LINK, CHOKE

$

$

Not available

216A

Electrolux/AYP 262766

LINK, CHOKE

$

$

Not available

222

Electrolux/AYP 495611

PLATE, GOVERNOR CONTROL

$

$

Not available

224

Electrolux/AYP 95163

SCREW

$

$

Not available

227

Electrolux/AYP 493935

LEVER ASSY, GOVERNOR

$

$

Not available

232

Electrolux/AYP 262785

SPRING, GOVERNOR LINK

$

$

Not available

238

Electrolux/AYP 262836

CAP, VALVE

$

$

Not available

240

Electrolux/AYP 394358

FILTER, FUEL

$

$

Not available

265

Electrolux/AYP 221535

CLAMP

$

$

Not available

294

Electrolux/AYP 810104

ADJUSTER, ROCKER ARM

$

$

Not available

304

Electrolux/AYP 225511

HOUSING, BLOWER

$

$

Not available

304A

Electrolux/AYP 225017

HOUSING, BLOWER, INNER, BLACK

$

$

Not available

305

Electrolux/AYP 94682

SCREW

$

$

Not available

305A

Electrolux/AYP 94822

SCREW, SEMS

$

$

Not available

306

Electrolux/AYP 225020

SHIELD, CYLINDER

$

$

Not available

307

Electrolux/AYP 94930

SCREW

$

$

Not available

309

Electrolux/AYP 497595

MOTOR, STARTING, 12 VOLT

$110.99

$

In Stock, only 2 left!

0

310

Electrolux/AYP 94003

BOLT

$

$

Not available

311

Electrolux/AYP 497608

BRUSH SET

$

$

Not available

333

Electrolux/AYP 495859

ARMATURE, MAGNETO

$

$

Not available

334

Electrolux/AYP 94731

SCREW, SEMS

$

$

Not available

337

Electrolux/AYP 491055

PLUG, SPARK

$

$

Not available

354

Electrolux/AYP 94010

LOCKNUT, AIR CLEANER MOUNTING

$

$

Not available

355

Electrolux/AYP 281164

WASHER, FLOAT BOWL SCREW

$

$

Not available

356

Electrolux/AYP 494705

WIRE, STOP

$

$

Not available

358

Electrolux/AYP 690189

GASKET SET

$

$

Not available

363

Electrolux/AYP 19203

PULLER, FLYWHEEL

$

$

Not available

381

Electrolux/AYP 94863

SCREW

$

$

Not available

383

Electrolux/AYP 89838

WRENCH SPARK PLUG

$

$

Not available

461

Electrolux/AYP 94734

SCREW

$

$

Not available

467

Electrolux/AYP 493903

KNOB, AIR CLEANER

$

$

Not available

474

Electrolux/AYP 393474

STATOR, ALTERNATOR, DUAL CIRCUIT

$

$

Not available

482

Electrolux/AYP 93621

SCREW, SEMS

$

$

Not available

493

Electrolux/AYP 224968

BRACKET, BLOWER HOUSING, FRONT

$

$

Not available

493A

Electrolux/AYP 224969

BRACKET, BLOWER HOUSING, REAR

$

$

Not available

503

Electrolux/AYP 806000

STRAP, STARTER

$

$

Not available

510

Electrolux/AYP 497606

DRIVE, STARTER

$

$

Not available

523

Electrolux/AYP 495230

CAP AND DIPSTICK, OIL FILLER

$

$

Not available

525

Electrolux/AYP 496113

TUBE, OIL FILLER

$

$

Not available

529

Electrolux/AYP 281370

SEAL, FILLER TUBE

$

$

Not available

535

Electrolux/AYP 496894

CARTRIDGE, AIR CLEANER

$

$

Not available

544

Electrolux/AYP 497603

ARMATURE, STARTER

$

$

Not available

552

Electrolux/AYP 491986

BUSHING, GOVERNOR CRANK

$

$

Not available

562

Electrolux/AYP 94907

BOLT, GOVENOR LEVEL

$

$

Not available

592

Electrolux/AYP 231978

NUT, HEX

$

$

Not available

592A

Electrolux/AYP 92278

NUT, HEX

$

$

Not available

601

Electrolux/AYP 95162

CLAMP, FUEL LINE

$

$

Not available

614

Electrolux/AYP 93306

COTTER, HAIR PIN

$

$

Not available

615

Electrolux/AYP 263080

RETAINER

$

$

Not available

616

Electrolux/AYP 495157

CRANK, GOVERNOR, 1/4" DIAMETER

$

$

Not available

634

Electrolux/AYP 494453

SEAL, SPRING ASSY.

$

$

Not available

634A

Electrolux/AYP 494455

SEAL, SPRING ASSY.

$

$

Not available

635

Electrolux/AYP 280872

ELBOW, SPARK PLUG

$

$

Not available

646

Electrolux/AYP 224546

BRACE, AIR CLEANER

$

$

Not available

657

Electrolux/AYP 94905

SCREW

$

$

Not available

663

Electrolux/AYP 94929

SCREW, SELF-TAPPING

$

$

Not available

663A

Electrolux/AYP 94704

SCREW, AIR CLEANER

$

$

Not available

668

Electrolux/AYP 805402

SPACER, ROTATING SCREEN

$

$

Not available

689

Electrolux/AYP 262715

SPRING, CHOKE

$

$

Not available

673

Electrolux/AYP 94896

SCREW, SEMS

$

$

Not available

718

Electrolux/AYP 230192

PIN, DOWEL

$

$

Not available

726

Electrolux/AYP 399676

GEAR, RING

$

$

Not available

727

Electrolux/AYP 490324

COVER, STARTER

$

$

Not available

728

Electrolux/AYP 94951

SCREW, HEX HEAD

$

$

Not available

729

Electrolux/AYP 281390

CLIP, WIRE

$

$

Not available

729A

Electrolux/AYP 225170

RETAINER, WIRE

$

$

Not available

741

Electrolux/AYP 262932

GEAR, TIMING

$

$

Not available

757

Electrolux/AYP 213998

LINK, COUNTERWEIGHT

$

$

Not available

758

Electrolux/AYP 499994

COUNTERWEIGHT

$

$

Not available

759

Electrolux/AYP 230787

PIN, COUNTERWEIGHT

$

$

Not available

761

Electrolux/AYP 94593

SCREW, COUNTERWEIGHT

$

$

Not available

783

Electrolux/AYP 280104

GEAR, STARTER

$

$

Not available

789

Electrolux/AYP 497708

WIRE ASSY

$

$

Not available

801

Electrolux/AYP 497626

CAP, DRIVE

$

$

Not available

802

Electrolux/AYP 497607

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

803

Electrolux/AYP 497604

HOUSING, STARTER

$

$

Not available

830

Electrolux/AYP 94555

STUD, ROCKER ARM

$

$

Not available

847

Electrolux/AYP 496415

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

851

Electrolux/AYP 224110

TERMINAL, IGNITION CABLE

$

$

Not available

868

Electrolux/AYP 499236

SEAL, VALVE

$

$

Not available

871

Electrolux/AYP 262835

BUSHING, GUIDE (INTAKE & EXHAUST)

$

$

Not available

875

Electrolux/AYP 495862

BODY, AIR CLEANER

$

$

Not available

877

Electrolux/AYP 393456

DIODE & CONNECTOR ASSY

$

$

Not available

878

Electrolux/AYP 393362

HARNESS, ALTERNATOR

$

$

Not available

947

Electrolux/AYP 497672

SOLENOID

$

$

Not available

967

Electrolux/AYP 272403

ELEMENT, AIR CLEANER

$

$

Not available

968

Electrolux/AYP 281758

COVER, AIR CLEANER

$

$

Not available

975

Electrolux/AYP 494933

BOWL, FLOAT

$

$

Not available

977

Electrolux/AYP 690192

GASKET SET, CARBURETOR

$

$

Not available

987

Electrolux/AYP 281166

SEAL, THROTTLE SHAFT

$

$

Not available

1005

Electrolux/AYP 281400

FAN, FLYWHEEL

$

$

Not available

1006

Electrolux/AYP 224413

RETAINER, FAN

$

$

Not available

1019

Electrolux/AYP 690180

LABEL KIT

$

$

Not available

1022

Electrolux/AYP 272475

GASKET, COVER

$

$

Not available

1023

Electrolux/AYP 225521

COVER, ROCKER

$

$

Not available

1026

Electrolux/AYP 494432

ROD, PUSH, INTAKE

$

$

Not available

1026A

Electrolux/AYP 495136

ROD, PUSH, EXHAUST

$

$

Not available

1029

Electrolux/AYP 224554

ARM, ROCKER

$

$

Not available

1033

Electrolux/AYP 690190

VALVE, OVERHAUL KIT

$

$

Not available

1034

Electrolux/AYP 495248

GUIDE ASSEMBLY, PUSH ROD

$

$

Not available

1036

Electrolux/AYP 273807

LABEL KIT, EMISSION

$

$

Not available

1044

Electrolux/AYP 94673

SCREW, SHOULDER, HEX HEAD

$

$

Not available

1058

Electrolux/AYP 273686

OWNER'S MANUAL

$

$

Not available

1090

Electrolux/AYP 497605

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

1091

Electrolux/AYP 281364

CAP, LIMITER

$

$

Not available
