918 H (1692847) - AGCO Garden Tractor, 18hp Steering Group - Power Parts Diagram

Garden Tractor, 18hp

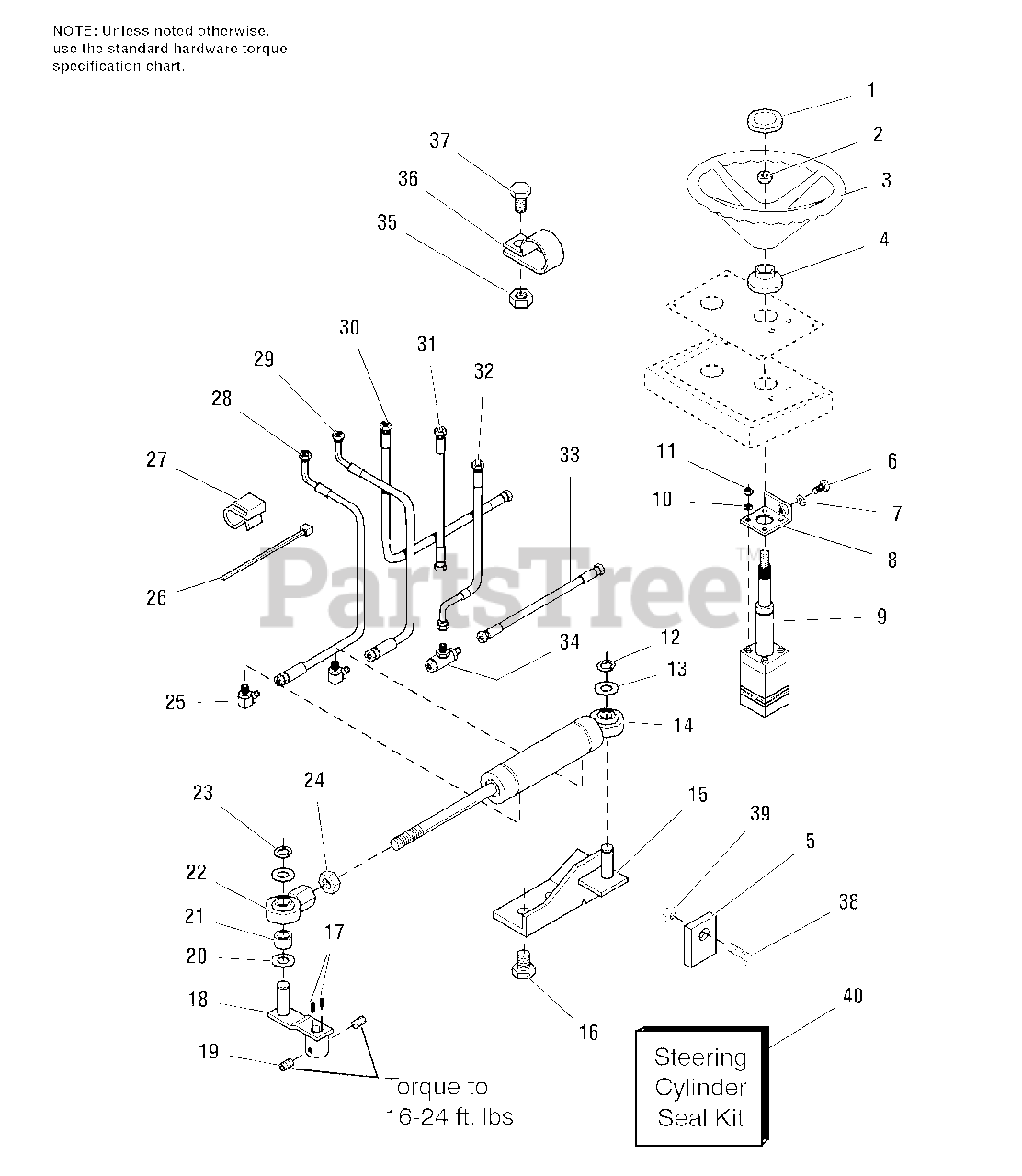

Steering Group - Power Parts Diagram

  • Title

1

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

2

Simplicity 1679046SM

NUT, Hex, 5/8-18

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 1676468SM

WHEEL ASSEMBLY, Steering

$

$

Not available

4

Simplicity 1676418SM

BOOT, Steering Stem

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716863SM

UP STOP, Axle

$

$

Not available

6

Simplicity 1960558SM

CAPSCREW, Hex Hd, M12 x 1.75 x 20mm

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1909589SM

LOCKWASHER, Int. Tooth, 1/2

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716502SM

MOUNTING PLATE ASSEMBLY

$

$

Not available

9

Simplicity 1673686SM

STEERING UNIT, Hydrostatic

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

11

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

12

Simplicity 2827103SM

RING, Retaining, 5/8

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1686926SM

CYLINDER, Power Steering

$1768.99

$

Usually ships in 2-12 days

0

15

Simplicity 1715513SM

BRACKET ASSEMBLY, Cylinder
(Superseded to 1715513ASM)

$122.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923683SM

CAPSCREW, Hex. Washer Hd, Taptite 3/8-16 x 3/4
(Superseded to 703950)

$5.99

$

In Stock, Qty 7

0

17

Simplicity 2157427SM

KEY, Square, 3/16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1716859ASM

ARM ASSEMBLY, Steering

$

$

Not available

19

Simplicity 1960620SM

SETSCREW, Hex Socket Hd, 3/8-16 x 1/2

Note: Torque to 16-24 ft. lbs.

$5.49

$

Usually ships in 2-12 days

0

20

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1679556SM

SPACER
(Superseded to 703154)

$25.99

$

In Stock, Qty 6

0

22

Simplicity 1679538ASM

BALL JOINT ASSEMBLY

$

$

Not available

23

Simplicity 2827732SM

RING, Retaining, 3/4
(Superseded to 703979)

$4.99

$

In Stock, Qty 8

0

24

Simplicity 1922015SM

NUT, Hex Jam, 3/4-16

$3.49

$

In Stock, Qty 8

0

25

Simplicity 2822523SM

FITTING, Hydraulic, .562 x 8 x .562-18-90

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 1701011SM

TIE, Self Locking .184 x 7.31 LG.

$5.49

$

In Stock, only 2 left!

0

27

Simplicity 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1715497SM

HOSE ASSEMBLY, Hydraulic (Steering RT to Cyl.)

$137.99

$

In Stock, only 1 left!

0

29

Simplicity 1715498SM

HOSE ASSEMBLY, Hydraulic (Steering LT to Cyl.)

$107.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715496SM

HOSE ASSEMBLY, Hydraulic (Pump to Steering)

$106.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715499SM

HOSE ASSEMBLY, Hydraulic (Steering Aux to Lift)

$43.99

$

Usually ships in 2-12 days

0

32

Simplicity 1719244SM

HOSE ASSEMBLY, Hydraulic (Steering Out to "T")

$

$

Not available

33

Simplicity 1715500SM

HOSE ASSEMBLY, Hydraulic (Return "T" to Pump)

$88.99

$

Usually ships in 2-12 days

0

34

Simplicity 1715523SM

FITTING, Hydraulic "T"

$

$

Not available

35

Simplicity 1923358SM

NUT, Hex, Center-Lock, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

36

Simplicity 1676527SM

CLAMP, Hose

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 1921960SM

CAPSCREW, Hex Hd, 1/4-20 x 1.00
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 16

0

38

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

39

Simplicity 1930645SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Simplicity 1685444SM

CYLINDER SEAL REPAIR KIT

$

$

Not available
