918002 - Ariens Ikon 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 030000) Fuel System Parts Diagram

Ikon 42" Zero-Turn Mower, 21.5hp Kawasaki FR

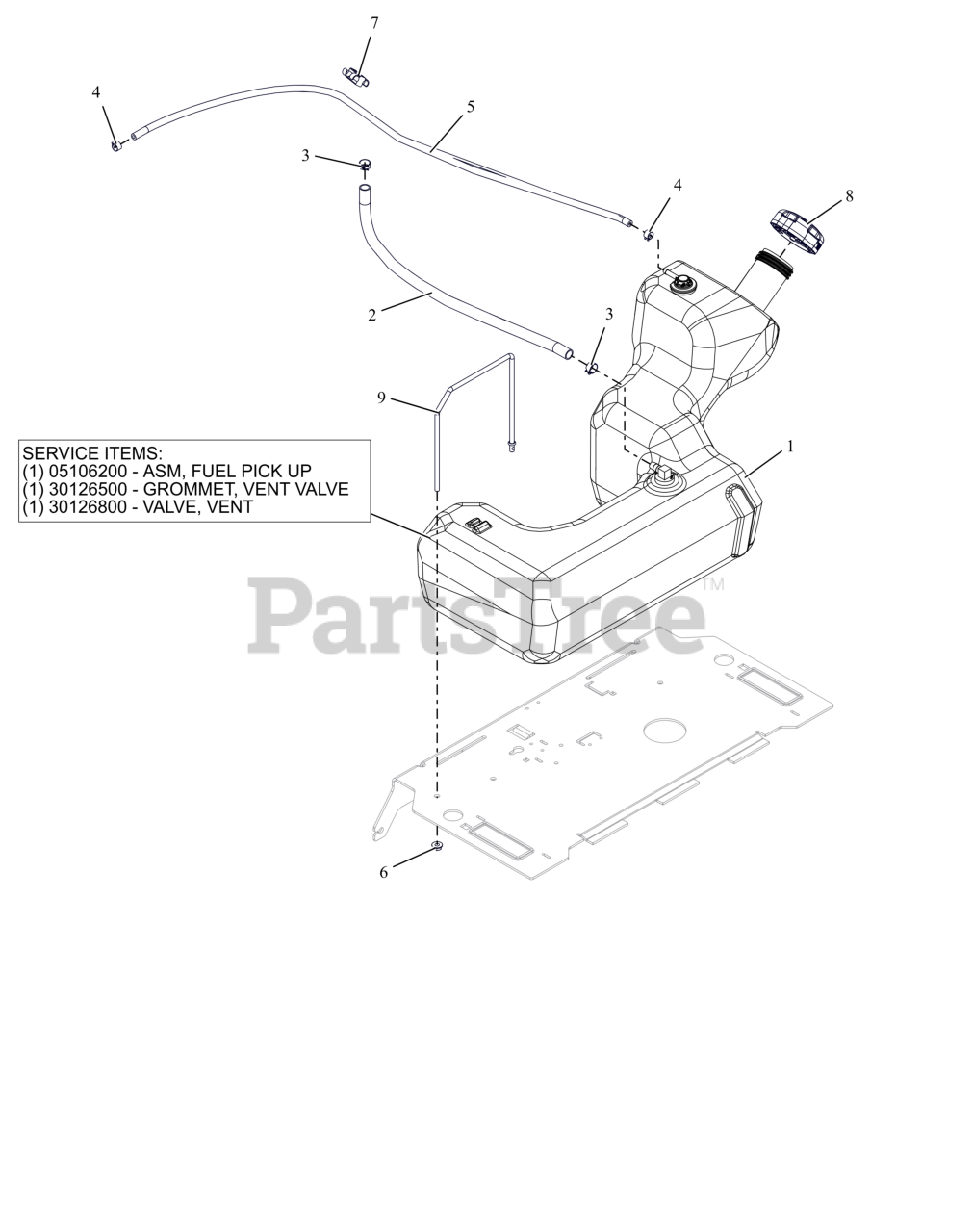

Fuel System Parts Diagram

  • Title

1

Ariens 09670900

ASM, FUEL TANK - IKON 23

$237.99

$

In Stock, only 1 left!

0

1

Ariens 05106200

ASM, IKON FUEL PICK-UP

Note: Service Part Assembly

$30.99

$

In Stock, Qty 20+

0

1

Ariens 30126500

GROMMET, VENT VALVE

Note: Service Part Component

$5.49

$

Usually ships in 4-12 days

0

1

Ariens 30126800

VALVE, VENT

Note: Service Part Component

$35.99

$

Usually ships in 4-12 days

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Service Part Component ( Fuel Valve Grommet )

$2.49

$

In Stock, Qty 18

0

2

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 12

0

4

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

5

Ariens 04745900

HOSE, .188 30R7 BULK

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

7

Ariens 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 09190200

CAP, FUEL - 2.25 RATCHET INLET VENT

$21.99

$

In Stock, Qty 15

0

9

Ariens 09671200

STRAP- TANK HOLD DOWN

$18.99

$

Usually ships in 4-12 days

0
