918003 - Ariens Ikon 48" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 030000) Rear Tires and Transaxles - 48", 52", 60" Parts Diagram
Ikon 48" Zero-Turn Mower, 21.5hp Kawasaki FR

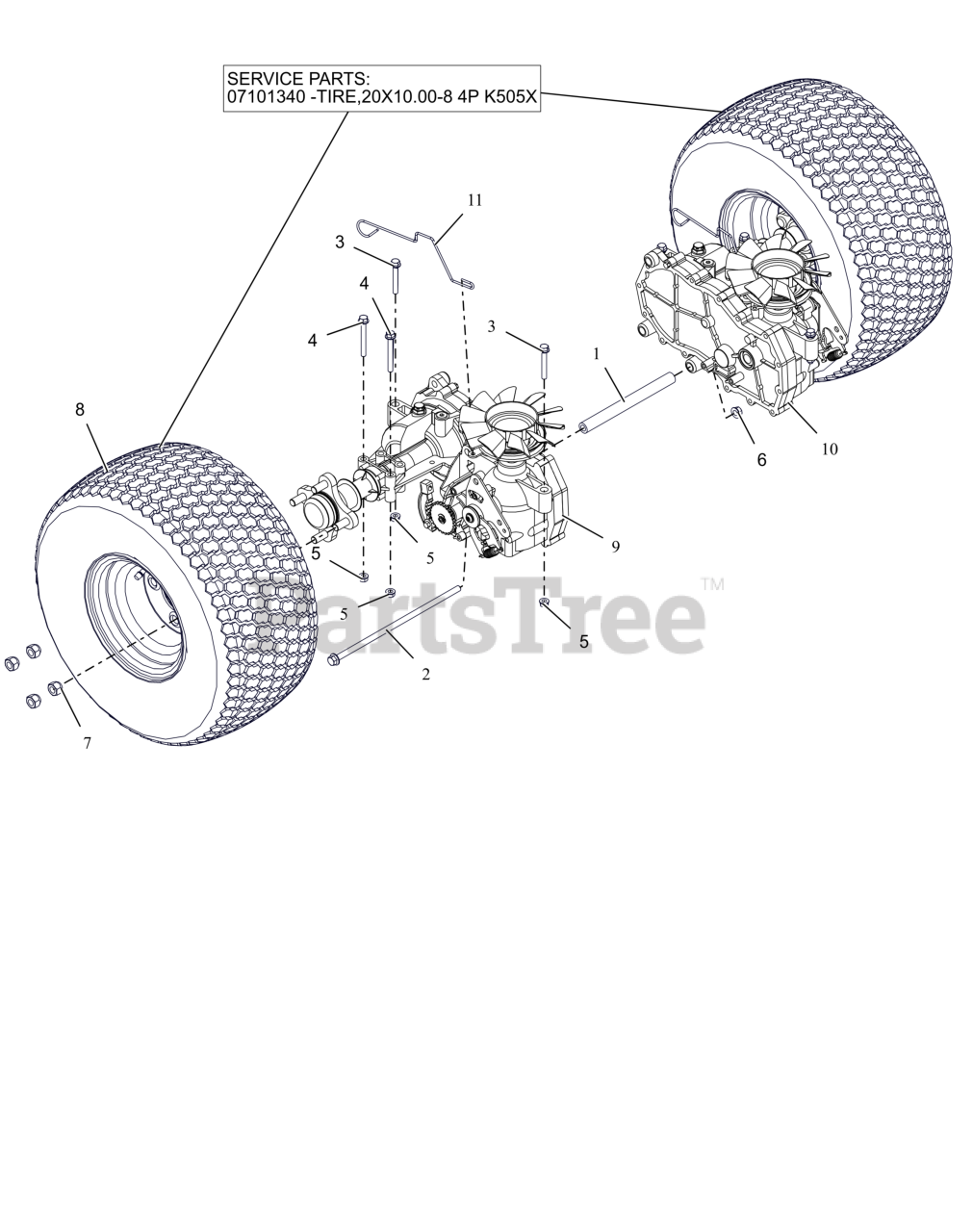

Rear Tires and Transaxles - 48", 52", 60" Parts Diagram
Ariens 05162451
TUBE, TRANSAXLE BRACE 8.18LG
$23.99
$
In Stock, only 3 left!
Ariens 05901902
BLT,HEX-FLG .38-16X11.5 G5 ZCC
$11.99
$
In Stock, only 3 left!
Ariens 05901910
BLT,HEX-FLG .31-18X2.25 G5 ZCC
$2.99
$
Usually ships in 4-12 days
Ariens 05901911
BLT,HEX-FLG .31-18X2.75 G5 ZCC
$2.99
$
Usually ships in 4-12 days
Ariens 06500840
NUT,LK-CTR-FLG .31-18 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500926
NUT, WHEEL .50-20 ZCC
$1.99
$
In Stock, Qty 20+
Ariens 07101419
ASSM TIRE\WHEEL, 20 X 10 -8
$136.99
$
Usually ships in 4-12 days
$162.99
$
Usually ships in 4-12 days
Ariens 09499800
TRANSAXLE- EZT-RH
$801.99
$
Usually ships in 4-12 days
Ariens 09499900
TRANSAXLE- EZT - LH
$801.99
$
Usually ships in 4-12 days
Ariens 09661600
WIRE- DUMP VALVE LEVER
$9.99
$
Usually ships in 4-12 days
