918007 (ZTX 42) - Gravely 42" Zero-Turn Mower, 23hp Kohler Pro (SN: 000101 - 004999) 09665600 - EZT Series Parts Diagram

42" Zero-Turn Mower, 23hp Kohler Pro

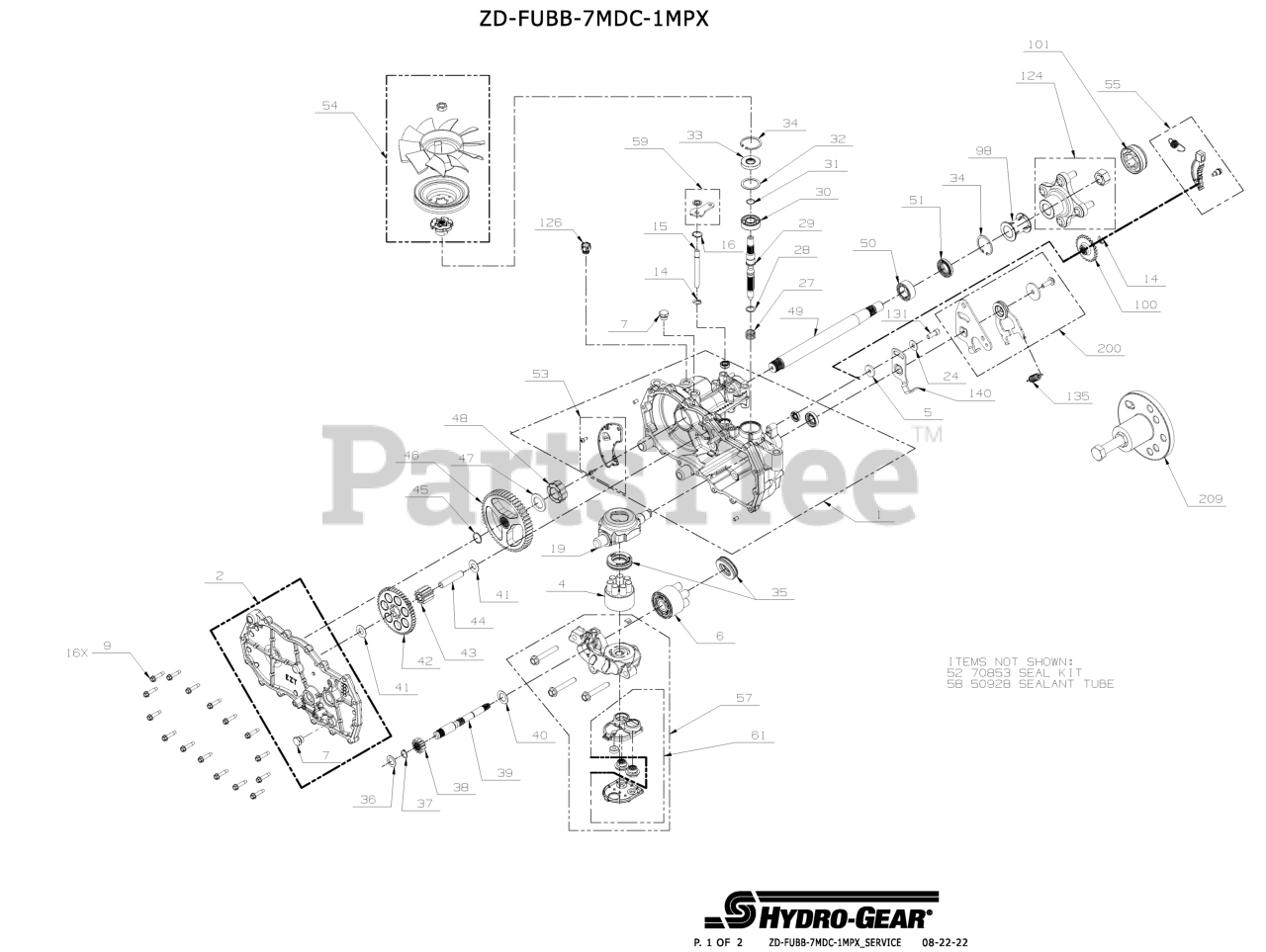

09665600 - EZT Series Parts Diagram

  • Title

Not Shown

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Recommended Transmission Oil. Approximately 53 to 59oz

$14.99

$

Usually ships in 4-12 days

0

Not Shown

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Optional Transmission Oil. Approximately 53 to 59oz

$14.99

$

In Stock, Qty 20+

0

1

KIT, HOUSING MAIN, LH

Note: HG 71097

$

$

Not available

2

KIT, SIDE HOUSING, LH W/DRAIN

Note: HG 73396

$

$

Not available

4

Gravely 21543921

ASSY, BLOCK 7 PISTON

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 21543870

SPACER

$

$

Not available

6

Gravely 21543889

KIT, 10 CC BLOCK

$103.99

$

Usually ships in 4-12 days

0

7

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 3 left!

0

14

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 9

0

15

Gravely 21543844

ROD, BYPASS

$

$

Not available

16

Gravely 21543846

RING, RET .750

$

$

Not available

19

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

24

WASHER

Note: HG 44130

$

$

Not available

27

Gravely 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

28

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

29

Gravely 21543785

SHAFT, INPUT

$106.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BRG, BALL 17X40X12

$21.99

$

Usually ships in 4-12 days

0

31

Gravely 21543960

RING, RET WIRE .561 ID

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 2 left!

0

33

Gravely 21543816

SEAL, LIP 17X40X7

$15.99

$

Usually ships in 4-12 days

0

34

Gravely 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

35

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

36

WASHER .63X1.0X.05

Note: HG 44371

$

$

Not available

37

RING, RET 62 EXT

Note: HG 44145

$

$

Not available

38

GEAR-PINION, 12T

Note: HG 51767

$

$

Not available

39

Gravely 21543859

SHAFT, MOTOR

$

$

Not available

40

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

41

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

42

GEAR, 49T/10T

Note: HG 51766

$

$

Not available

43

Gravely 21543781

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

Note: HG 51083

$

$

Not available

45

RING, SPIRAL RETAINING-87

Note: HG 52531

$

$

Not available

46

GEAR, BULL 52T

Note: HG 52541

$

$

Not available

47

WASHER, 1.018 X 1.571 X .105 FLAT

Note: HG 52532

$

$

Not available

48

BUSHING, SLEEVE (INBOARD)

Note: HG 52542

$

$

Not available

49

SHAFT, AXLE

Note: HG 53706

$

$

Not available

50

BUSHING, 1.003 x 1.571 x .625

Note: HG 51517

$

$

Not available

51

SEAL, LIP, TC4 1.00 X 1.577 X .27

Note: HG 51518

$

$

Not available

52

Gravely 21543935

KIT, SEALS AND RETAINING

$82.99

$

In Stock, only 4 left!

0

53

Gravely 21543987

KIT, EXPANSION PLATE LH

$14.99

$

Usually ships in 4-12 days

0

54

Gravely 21543898

KIT, FAN/PULLEY

$87.99

$

Usually ships in 4-12 days

0

55

KIT, BRAKE ARM

Note: HG 72997

$

$

Not available

57

Gravely 21500059

KIT, CENTER SECTION, W/FILTER - LH

$177.99

$

In Stock, only 1 left!

0

58

Gravely 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

59

Gravely 21543937

KIT, BYPASS ARM

$12.99

$

Usually ships in 4-12 days

0

61

Gravely 21543958

KIT, FILTER

$19.99

$

Usually ships in 4-12 days

0

98

TUBE, AXLE 1.835

Note: HG 53731

$

$

Not available

100

Gravely 21543851

DISC, COG BRAKE

$22.99

$

In Stock, only 2 left!

0

101

Gravely 21500034

CAP, AXLE

$5.49

$

Usually ships in 4-12 days

0

124

Gravely 21500051

KIT, HUB 4 BOLT

$85.99

$

Usually ships in 4-12 days

0

126

ASSEMBLY, FITTING 9/16-18 BREATHER

Note: HG 55995

$

$

Not available

131

KIT, RTN SCREWS

Note: HG 71341

$

$

Not available

135

Gravely TCU19204

SPRING, EXTENSION

$

$

Not available

140

Gravely 21543867

ARM, NEUTRAL LEFT

$22.99

$

Usually ships in 4-12 days

0

200

RING, RTNG .

Note: HG71592

$

$

Not available

209

Gravely 21544008

HUB PULLER 5 BLT

$461.99

$

Usually ships in 4-12 days

0
