918007 (ZTX 42) - Gravely 42" Zero-Turn Mower, 23hp Kohler Pro (SN: 035000 & Above) Seat Parts Diagram

42" Zero-Turn Mower, 23hp Kohler Pro

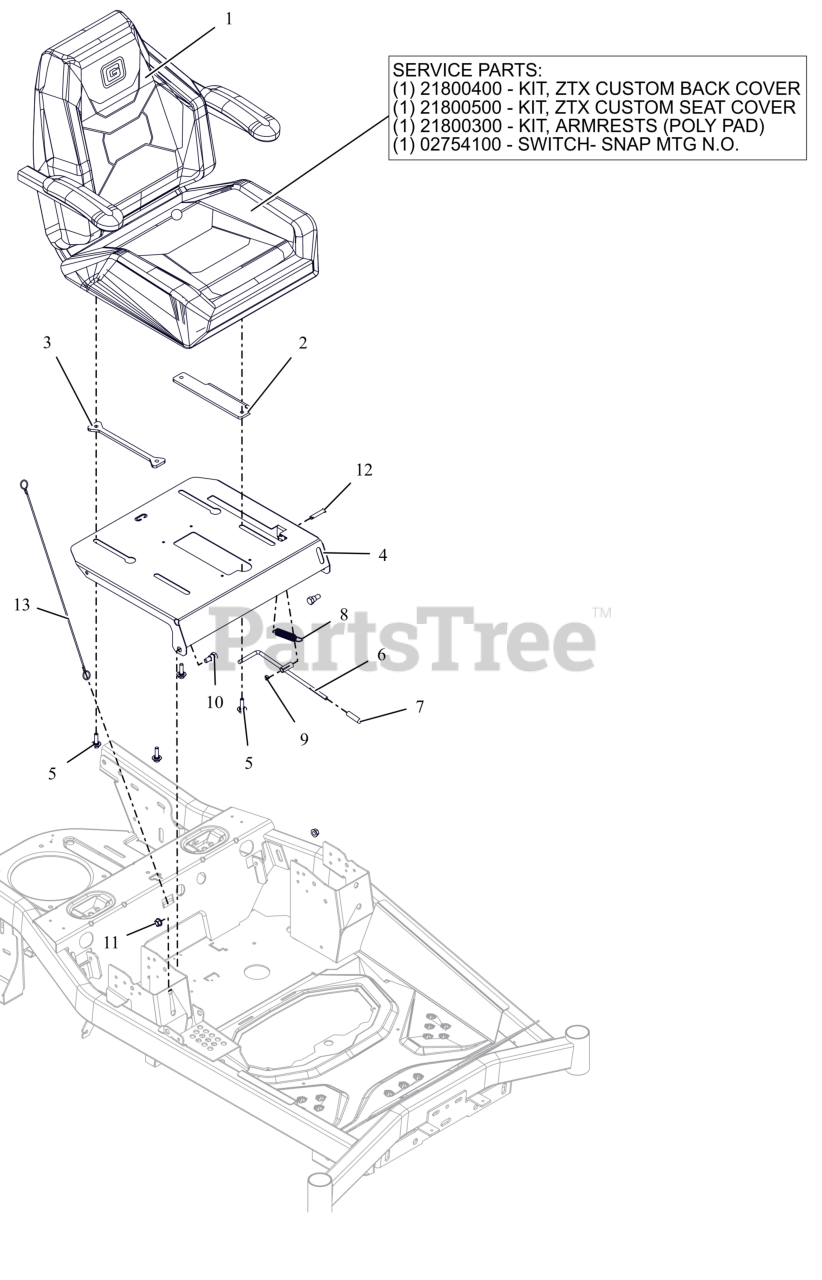

Seat Parts Diagram

  • Title

1

Gravely 30137100

SEAT- ZTX MY23 (WOOD)

$475.99

$

Usually ships in 4-12 days

0

1

Gravely 21800400

KIT- ZTX CUSTOM BACK COVER

Note: Component Service Part

$92.99

$

Usually ships in 4-12 days

0

1

Gravely 21800500

KIT- ZTX CUSTOM SEAT COVER

Note: Component Service Part

$92.99

$

Usually ships in 4-12 days

0

1

Gravely 21800300

KIT- ARMRESTS ( POLY PAD)

Note: Component Service Part

$118.99

$

Usually ships in 4-12 days

0

1

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.99

$

In Stock, Qty 20+

0

2

Gravely 09664951

ADJUSTER-PLATE-SEAT

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$10.99

$

Usually ships in 4-12 days

0

4

Gravely 09664853

PLATE-SEATE

$79.99

$

Usually ships in 4-12 days

0

5

Gravely 07001930

BLT, SHLDR .31-18 X .100

$2.49

$

In Stock, Qty 20+

0

6

Gravely 09679951

WLDMT- LATCH- SEAT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 07500529

GRIP- BLACK .31X1.50

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 08300628

SPRG, EXT .653 X .063 X 2.755

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07002030

BLT-SHLDR .50X.38 ZCC

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04840500

PIN, CLEV .309X1.75 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0
