918009 (ZTX 48) - Gravely 48" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 030000 - 039999) Transaxle Drive Parts Diagram
48" Zero-Turn Mower, 21.5hp Kawasaki FR

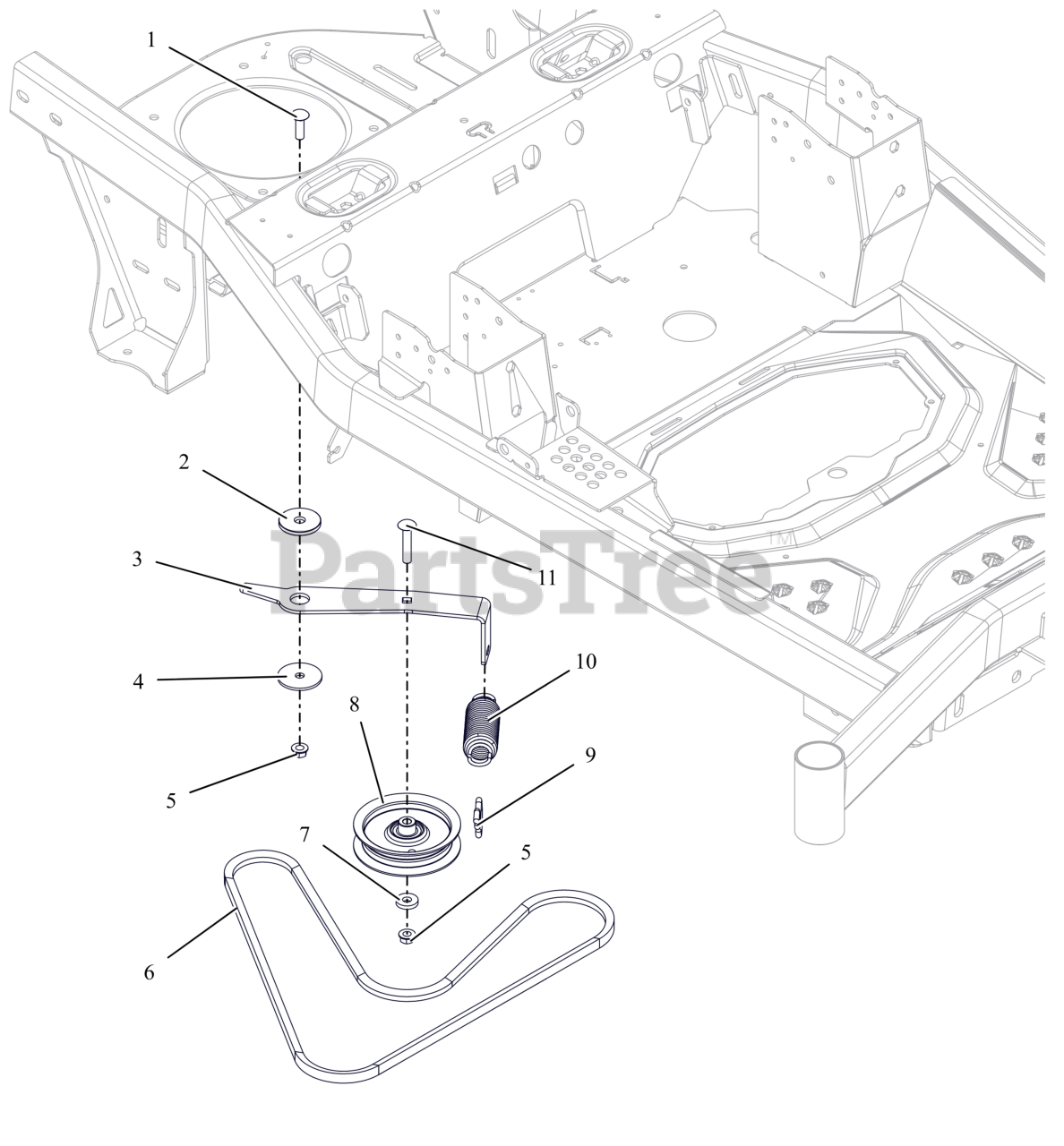

Transaxle Drive Parts Diagram
Gravely 06200236
BLT,RHSSN .38-16X1.25 G5 ZCC
$3.49
$
In Stock, only 2 left!
Gravely 05501509
BSHG-FLG .406X.88X.43X.25
$8.49
$
Usually ships in 4-12 days
Gravely 09653351
ARM- GROUND DRIVE IDLER
$19.99
$
Usually ships in 4-12 days
Gravely 06401221
WSHR-FL-STL 0.406X2X0.125 ZCC
$5.49
$
In Stock, only 1 left!
Gravely 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.99
$
In Stock, Qty 20+
Gravely 07200726
V-BELT, HA -RAW EDGED COGGED
$43.99
$
In Stock, Qty 13
Gravely 06401108
WSHR, FLT .406X1.00X.188 ZCC
$3.99
$
In Stock, Qty 20+
Gravely 07350100
IDLER, FLAT - 4.06" X .75"
$54.99
$
In Stock, Qty 20+
Gravely 09663200
HOOK- WIRE FORMED SPRING
$10.99
$
Usually ships in 4-12 days
Gravely 08300729
SPRING- EXTENSION
$18.99
$
In Stock, only 2 left!
Gravely 06200323
BLT,RHSSN.375-16X2.00 G5 ZCC
$3.49
$
In Stock, Qty 19
