918014 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Pro (SN: 000101 - 004999) Engine - Kohler KT740 Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Pro

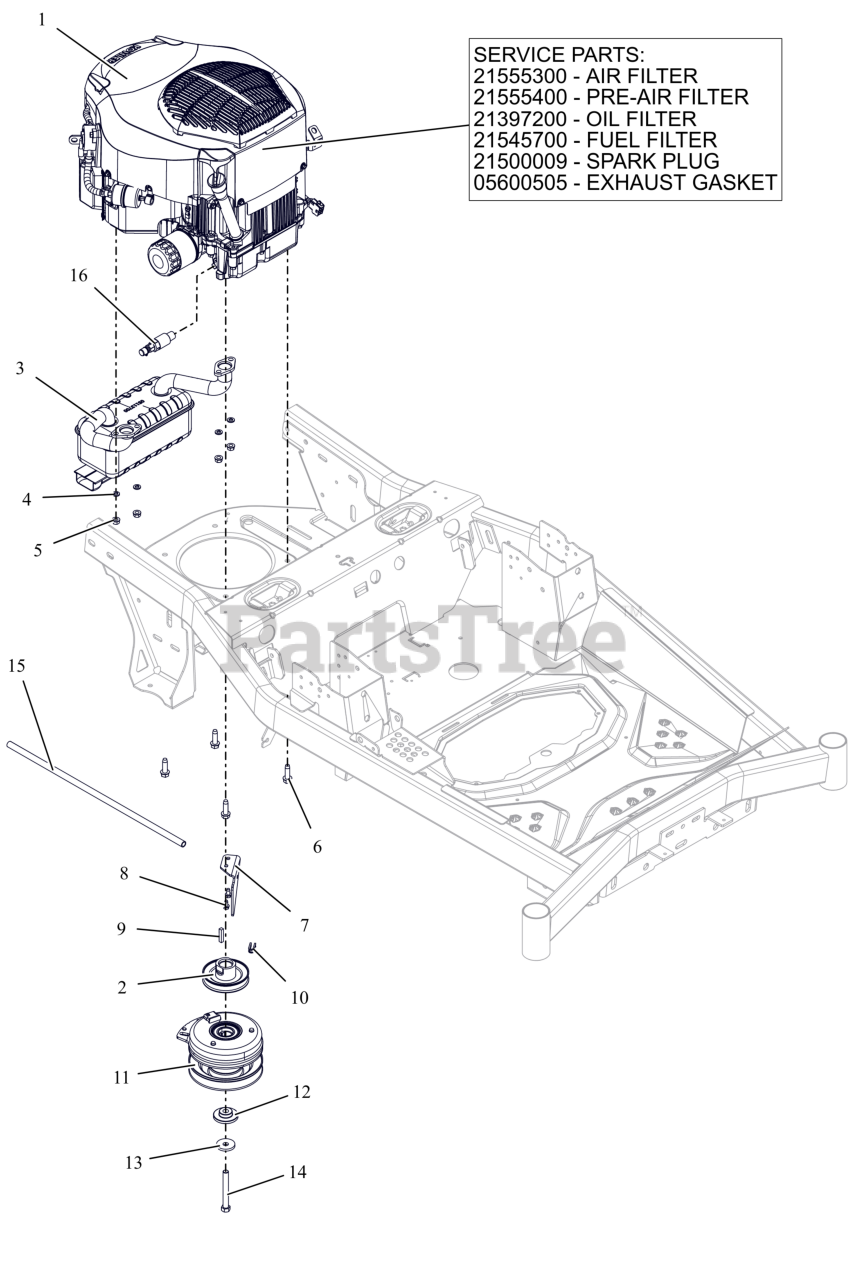

Engine - Kohler KT740 Parts Diagram

  • Title

1

Gravely 08201308

ENGINE, KOHLER - KT740

$

$

Currently unavailable

1

Gravely 21555300

AIR FILTER, KOHLER

Note: Service Part Component

$29.99

$

In Stock, Qty 20+

0

1

Gravely 21555400

PRE CLEANER, KOHLER

Note: Service Part Component

$6.99

$

In Stock, Qty 20+

0

1

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Service Part Component

$21.99

$

Usually ships in 4-12 days

0

1

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: Service Part Component

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21500009

PLUG, SPARK KOHLER

Note: Service Part Component

$10.99

$

Usually ships in 4-12 days

0

1

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: Service Part Component

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 07351400

WLDMT-PULLEY-4.831OD X1.003

$31.99

$

Usually ships in 4-12 days

0

3

Gravely 05113700

MUFFLER, KOHLER

$91.99

$

In Stock, only 2 left!

0

4

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$3.99

$

In Stock, Qty 15

0

7

Gravely 09656751

BRKT- CLUTCH STOP

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$4.99

$

In Stock, Qty 11

0

10

Gravely 30145600

BSHG, CLUTCH

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 09481100

CLUTCH, WARNER-IXR-18211

$303.99

$

Usually ships in 4-12 days

0

12

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$20.99

$

In Stock, only 2 left!

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, Qty 5

0

14

Gravely 05902124

BLT- HEX .44-20X3.50 G8 ZCC NT

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 09166300

HOSE- OIL DRAIN

$12.99

$

Usually ships in 4-12 days

0

16

Gravely 03943600

DRAIN, OIL

$17.99

$

In Stock, Qty 6

0
