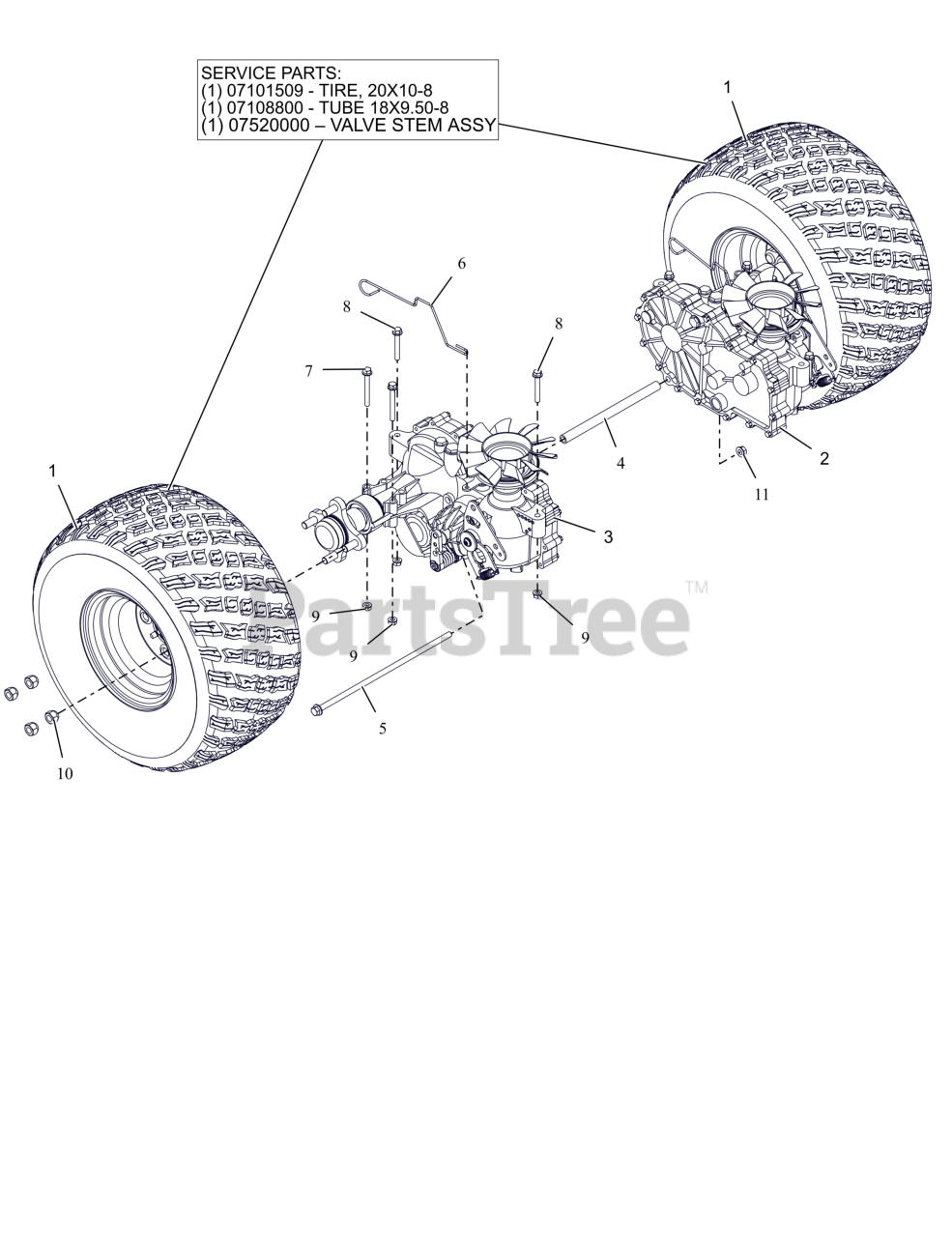

918014 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Pro (SN: 040000 & Above) Rear Tires and Transaxles - 48",52",60" Parts Diagram
52" Zero-Turn Mower, 25hp Kohler Pro
Rear Tires and Transaxles - 48",52",60" Parts Diagram
Gravely 07101426
ASM- TIRE/WHL 20X10-8
$159.99
$
Usually ships in 4-12 days
Gravely 30194700
TRANSAXLE- ZT2800 - LH
$814.99
$
Usually ships in 0 days
Gravely 30194600
TRANSAXLE- ZT2800 - RH
$814.99
$
Usually ships in 0 days
Gravely 05162551
SPCR, TRANSAXLE .406 ID X .630 OD X 9.27 (BLACK)
$19.99
$
Usually ships in 4-12 days
Gravely 05901903
BLT, HEX-FLG 0.375-16X13 GR5 ZC120
$14.99
$
In Stock, only 3 left!
Gravely 09661600
WIRE- DUMP VALVE LEVER
$9.99
$
Usually ships in 4-12 days
Gravely 05901911
BLT,HEX-FLG .31-18X2.75 G5 ZCC
$2.99
$
Usually ships in 4-12 days
Gravely 05901910
BLT,HEX-FLG .31-18X2.25 G5 ZCC
$2.99
$
Usually ships in 4-12 days
Gravely 06500840
NUT,LK-CTR-FLG .31-18 GF ZCC
$1.49
$
In Stock, Qty 20+
Gravely 06500926
NUT, WHEEL .50-20 ZCC
$1.99
$
In Stock, Qty 20+
Gravely 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
