918026 - Ariens Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 & Above) Deck, Belt, Blades, and Spindles Parts Diagram
Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR

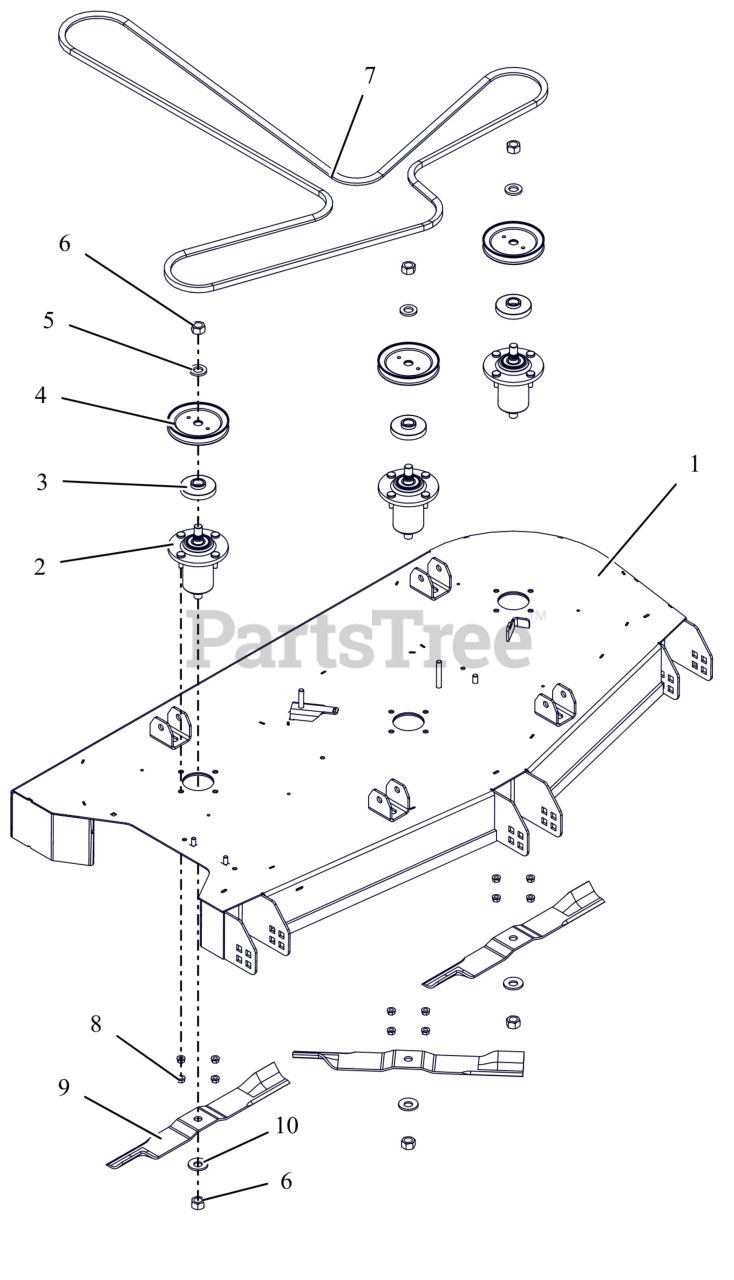

Deck, Belt, Blades, and Spindles Parts Diagram
Ariens 51802300
KIT,ARIENS DECK 52" WITH DECALS
$896.99
$
Usually ships in 4-12 days
Ariens 30138800
ASM, ALUMINUM SPINDLE SUB
$100.99
$
Usually ships in 4-12 days
Ariens 09482000
SHIELD, DUST
$9.99
$
Usually ships in 4-12 days
Ariens 07351602
PULLEY, V-4.75 ODX.625 SPLINE ID
$19.99
$
In Stock, only 1 left!
Ariens 05501510
SPACER
$7.49
$
Usually ships in 4-12 days
Ariens 06500920
NUT-STD .625-18 ZCC
$2.49
$
In Stock, Qty 20+
Ariens 07200921
V-BELT, HA SECTION
$125.99
$
In Stock, only 1 left!
Ariens 06500840
NUT,LK-CTR-FLG .31-18 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 09659100
BLADE, MOWER 18.0"
$26.99
$
In Stock, Qty 20+
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$5.49
$
In Stock, Qty 20+
