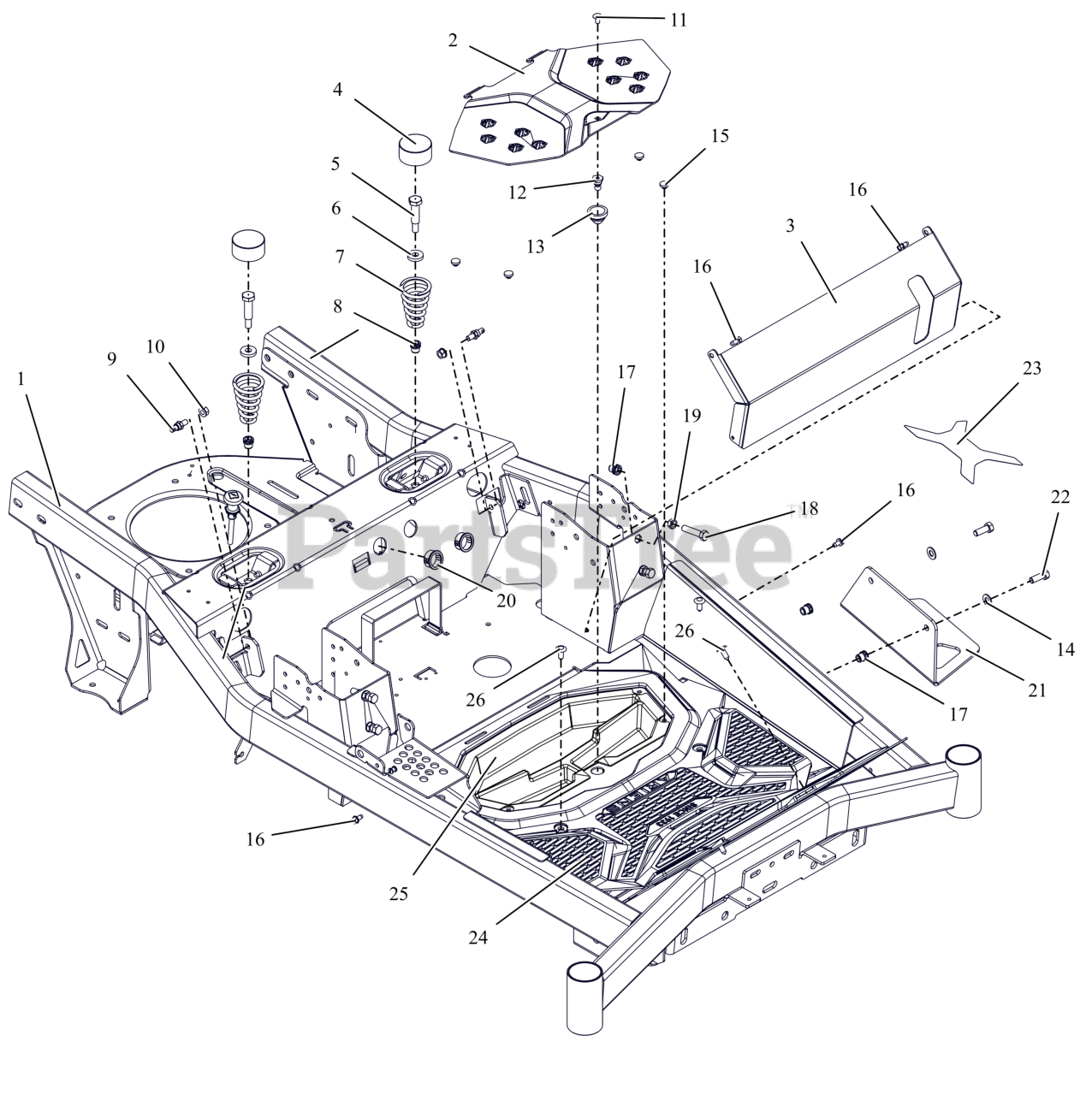

918026 - Ariens Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 & Above) Frame Parts Diagram

Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR

Frame Parts Diagram

  • Title

1

Ariens 51802400

KIT,ARIENS FRAME W/ DECALS

$1017.99

$

Usually ships in 4-12 days

0

2

Ariens 51801600

KIT, ARIENS ACCESS PLT W/DECAL

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 09666851

PLATE, FRONT KICK (BLACK)

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

5

Ariens 05902130

BLT-SHLDR .50X1.50 .375-16 ZCC

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

7

Ariens 08300021

SPRING, SEAT

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 05171400

COUPLER, DAMPER MOUNT

$7.49

$

In Stock, only 2 left!

0

10

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.99

$

In Stock, Qty 13

0

12

Ariens 05275900

STUD, BALL FEMALE .250-20 THREAD

$9.99

$

In Stock, Qty 20+

0

13

Ariens 07500429

COUPLING, RUBBER PUSH-IN

$2.49

$

In Stock, only 1 left!

0

14

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 20+

0

16

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 05901612

BLT, HEX .38-16X1.75F G5 ZCC

$3.49

$

In Stock, only 1 left!

0

19

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 09655959

STEP, (ORANGE)

$25.99

$

Usually ships in 4-12 days

0

22

Ariens 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$2.49

$

In Stock, Qty 20+

0

23

Ariens 09693900

GRIP- TAPE - STEP -ARIENS

$10.99

$

Usually ships in 4-12 days

0

24

Ariens 30151700

MAT- RUBBER FOOTBOARD- IKON

$72.99

$

Usually ships in 4-12 days

0

25

Ariens 09696600

INSERT, GRAVELY STORAGE

$15.99

$

Usually ships in 4-12 days

0

26

Ariens P80-332-A

XMAS TREE FASTNER-BLACK

$2.99

$

Usually ships in 4-12 days

0
