918026 - Ariens Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 & Above) Seat Parts Diagram

Ikon Onyx 52" Zero-Turn Mower, 23hp Kawasaki FR

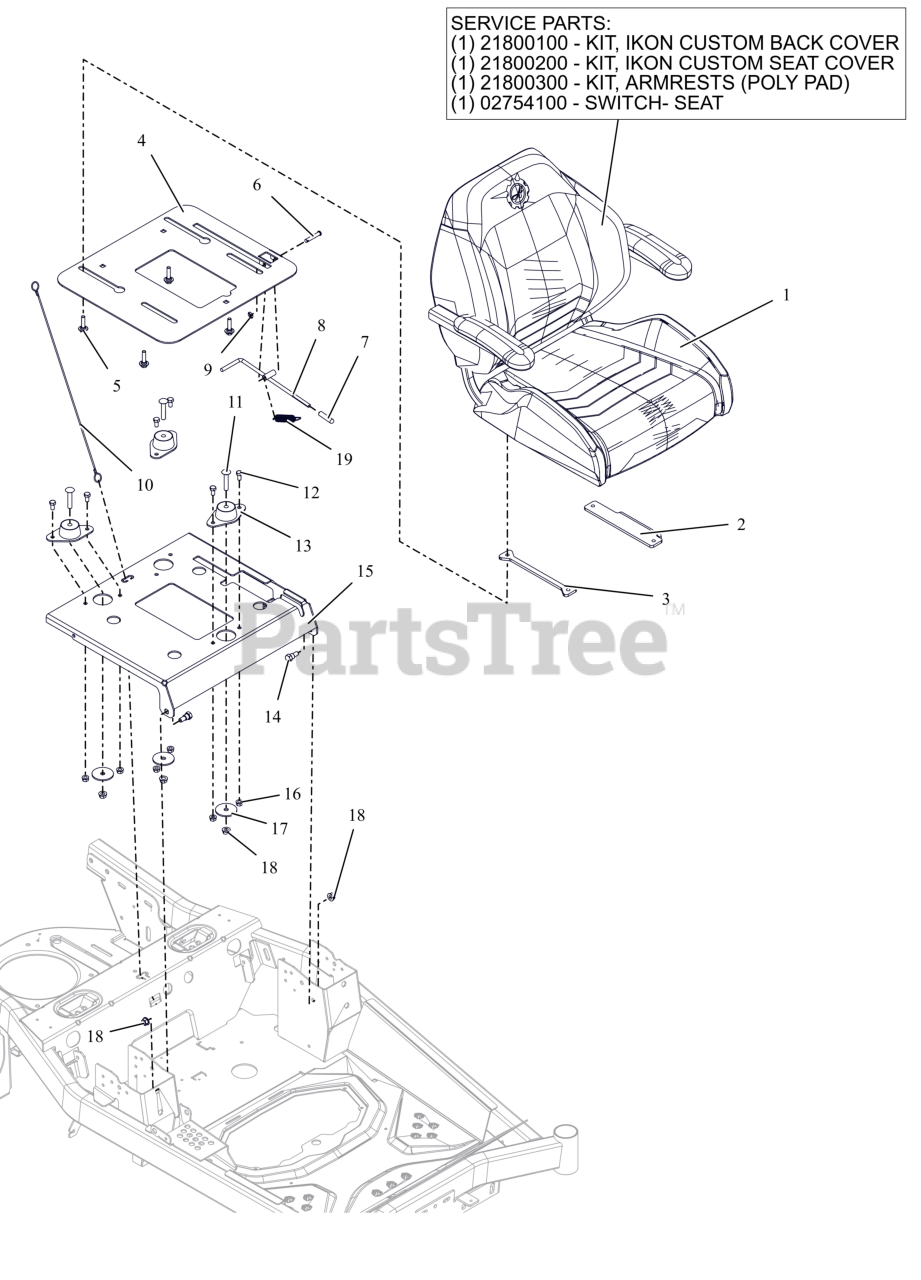

Seat Parts Diagram

  • Title

1

Ariens 30137300

SEAT- IKON 2023 (WOOD)

$475.99

$

Usually ships in 4-12 days

0

1

Ariens 21800100

KIT - IKON CUSTOM BACK COVER

Note: Component Service Part

$79.99

$

Usually ships in 4-12 days

0

1

Ariens 21800200

KIT - IKON CUSTOM SEAT COVER

Note: Component Service Part

$79.99

$

Usually ships in 4-12 days

0

1

Ariens 21800300

KIT - ARMRESTS (POLY PAD)

Note: Component Service Part

$118.99

$

Usually ships in 4-12 days

0

1

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.99

$

In Stock, Qty 20+

0

2

Ariens 09664951

PLATE- SEAT ADJUSTER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$10.99

$

Usually ships in 4-12 days

0

4

Ariens 09665451

PLATE- SEAT ISOLATOR (BLK)

$81.99

$

Usually ships in 4-12 days

0

5

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 04840500

PIN, CLEV .309X1.75 ZCC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 07500529

GRIP, BLACK RD-.312X1.50

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 09679951

WLDMT, LATCH SEAT (BLACK)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

11

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 18

0

12

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 07500520

MOUNT, FAIL-SAFE COMPRESSION

$42.99

$

Usually ships in 4-12 days

0

14

Ariens 07002030

BLT-SHLDR .50X.38 ZCC

$6.49

$

In Stock, only 2 left!

0

15

Ariens 09665351

BRKT- SEAT- ISOLATOR MTG (BLK)

$105.99

$

Usually ships in 4-12 days

0

16

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 08300628

SPRG, EXTENSION .063 X .653 X 2.755

$7.49

$

Usually ships in 4-12 days

0
