918027 - Ariens Ikon Select 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 035000 & Above) Front Wheels and Caster Forks Parts Diagram

Ikon Select 42" Zero-Turn Mower, 21.5hp Kawasaki FR

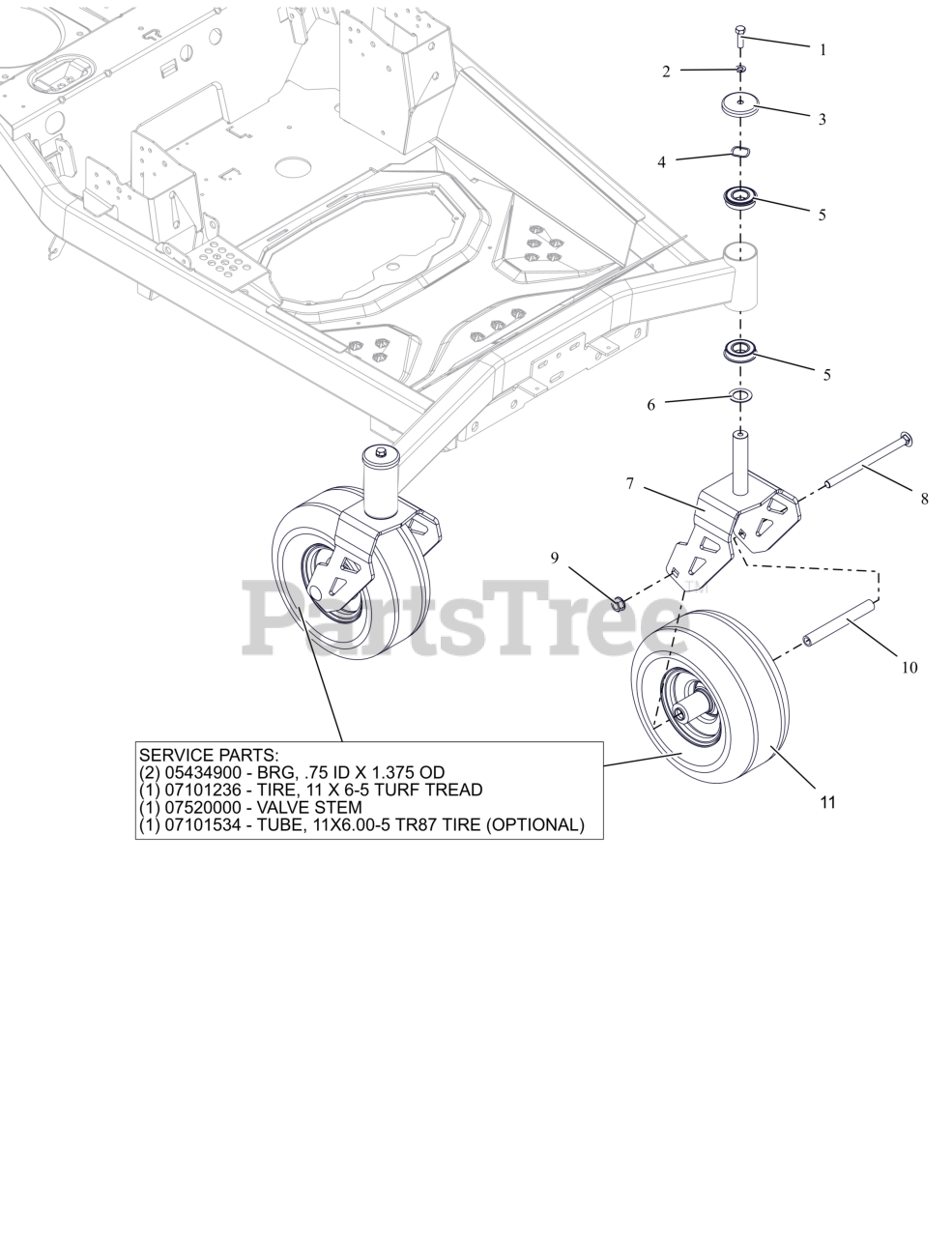

Front Wheels and Caster Forks Parts Diagram

  • Title

1

Ariens 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 06300130

WSHR-LK-REG .375X.094 ZB500

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 09692800

SHIELD, AXLE BEARING

$7.49

$

Usually ships in 4-12 days

0

4

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.49

$

In Stock, only 4 left!

0

5

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$14.99

$

In Stock, only 2 left!

0

6

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

7

Ariens 09657959

WLDMT, CASTER FORK (ORANGE)

$72.99

$

In Stock, Qty 7

0

8

Ariens 06200509

BLT-RHSN .50-13X7.50 G5 ZCC NS

$7.49

$

In Stock, Qty 20+

0

9

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$15.99

$

In Stock, Qty 20+

0

11

Ariens 07101505

ASM- WHL/TIRE 11 X 6.00-5

$79.99

$

In Stock, only 3 left!

0

11

Ariens 05434900

BRG-BALL .752X1.380X.500

Note: Component Service Part

$15.99

$

In Stock, Qty 20+

0

11

Ariens 07101236

LAWN TIRE FRONT, 11/6.00-5 SMOOTH

Note: Component Service Part

$74.99

$

Usually ships in 4-12 days

0

11

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 4 left!

0

11

Ariens 07101534

TUBE- 11X6.00-5 TR87 TIRE

Note: Component Service Part

$23.99

$

Usually ships in 4-12 days

0
