9184-0 - Generac 4,000 Watt Portable Generator Mounting Base Parts Diagram

4,000 Watt Portable Generator

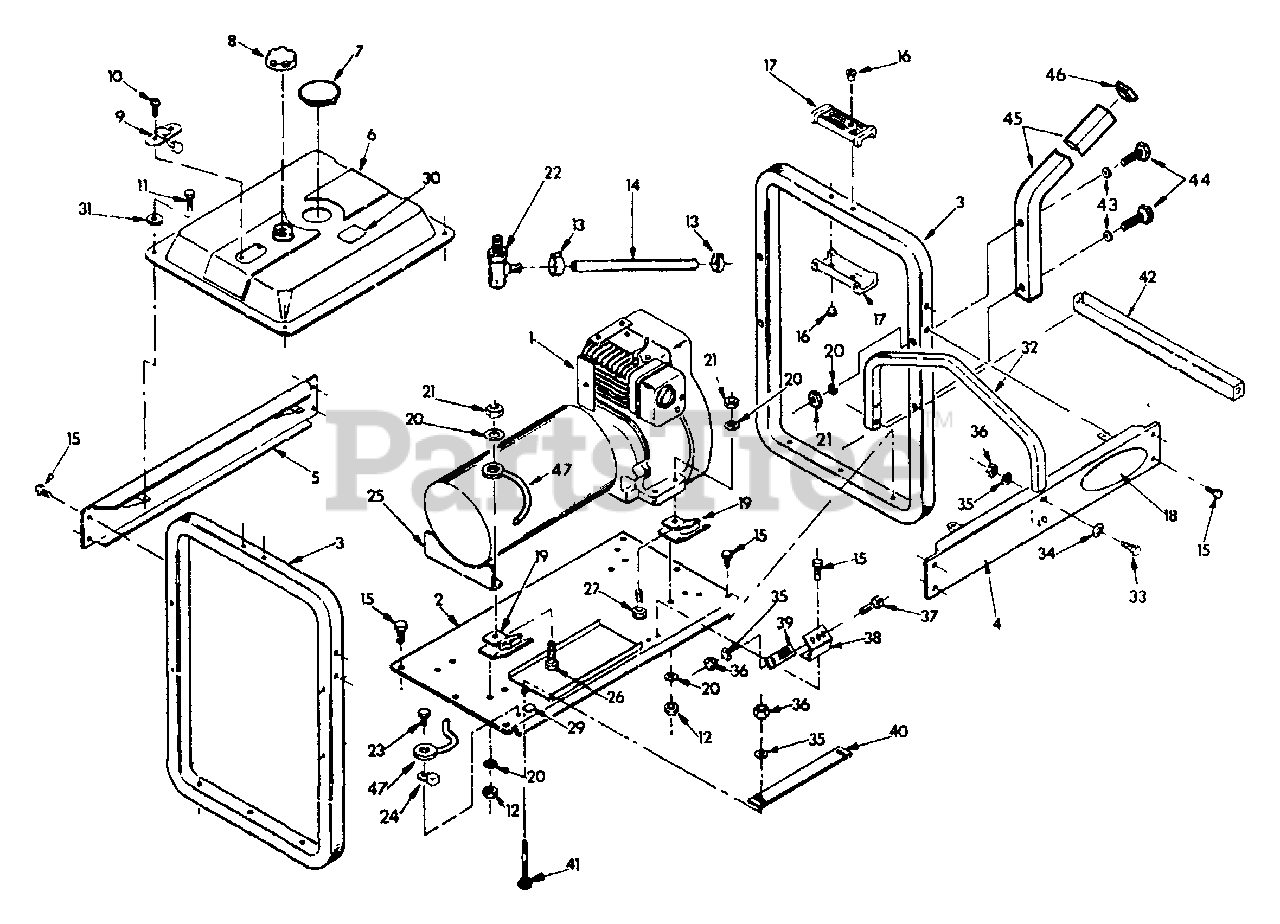

Mounting Base Parts Diagram

  • Title
1

Briggs & Stratton 71748

Briggs & Stratton Engine

$

$

Currently unavailable

2

Briggs & Stratton 70643A

Mounting Base

$

$

Currently unavailable

3

Briggs & Stratton 70603A

Cradle end loop

$

$

Currently unavailable

4

Briggs & Stratton 70762A

Right Fuel Tank Support

$

$

Currently unavailable

5

Briggs & Stratton 70762B

Left Fuel Tank Support

$

$

Currently unavailable

6

Briggs & Stratton 73715

Fuel Tank
(Superseded to 7073715YP)

$

$

Not available

7

Briggs & Stratton 64680B

Spark Plug Access Cover
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

Fuel Tank Cap

$

$

Currently unavailable

9

Briggs & Stratton 66391B

Fuel Level Gauge

$

$

Not available

10

Briggs & Stratton 52749

M5-0.80 x 12mm Screw

$

$

Currently unavailable

11

Briggs & Stratton 36933

No. 10-32 x 3/8" Screw

$

$

Not available

12

Briggs & Stratton 45771

M8-1.25 hex nut

$

$

Not available

13

$

$

Not available

14

Briggs & Stratton 30340

1/4" ID x 18" hose

$3155.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 58443

1/4" 20 x 1/2" Screw
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

$

$

Not available

17

Briggs & Stratton 66450

Plastic Handle

$

$

Not available

$

$

Currently unavailable

19

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22259

5/16"-18 hex nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 27734

Fuel Shutoff Valve
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 24489

No. 10-32 x 3/8" screw

$

$

Currently unavailable

24

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

25

Briggs & Stratton 70634A

Rear Generator Support

$

$

Currently unavailable

26

Briggs & Stratton 64183

5/16"-18 x 3/4" screw

$

$

Currently unavailable

27

Briggs & Stratton 71752

5/16"-18 x 1-3/4" Screw

$

$

Currently unavailable

29

Briggs & Stratton 67210A

Ground Decal
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 77817

"Fuel Caution" Decal

$

$

Currently unavailable

31

Briggs & Stratton 22152

No. 10 Lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70756B

Lifting Eye Tube

$

$

Currently unavailable

33

Briggs & Stratton 22203

1/4"-20 x 1-1/4" Screw
(Superseded to 22203GS)

$2.49

$

Usually ships in 2-12 days

0

34

22473

1/4" Flatwasher

$

$

Not available

35

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 22127

1/4"-20 Hex Nut

$

$

Not available

37

Briggs & Stratton 22287

1/4"-20 x 3/4" Screw
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 65121

Starter Contactor Bracket

$

$

Currently unavailable

39

Briggs & Stratton 53030

Starter Contactor
(Superseded to 53030GS)

$57.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 44951

Battery Retainer Bracket

$

$

Currently unavailable

41

Briggs & Stratton 45000

1/4"-20 x 7" Screw
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 71762

Lifting Eye Brace

$221.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22145

M8 Flatwasher

$

$

Not available

44

Briggs & Stratton 22532

5/16"-18 x 2-1/2" Capscrew

$

$

Currently unavailable

45

Briggs & Stratton 70760

Transport Handle

$

$

Currently unavailable

$

$

Currently unavailable

47

$

$

Currently unavailable
